RICHTEK

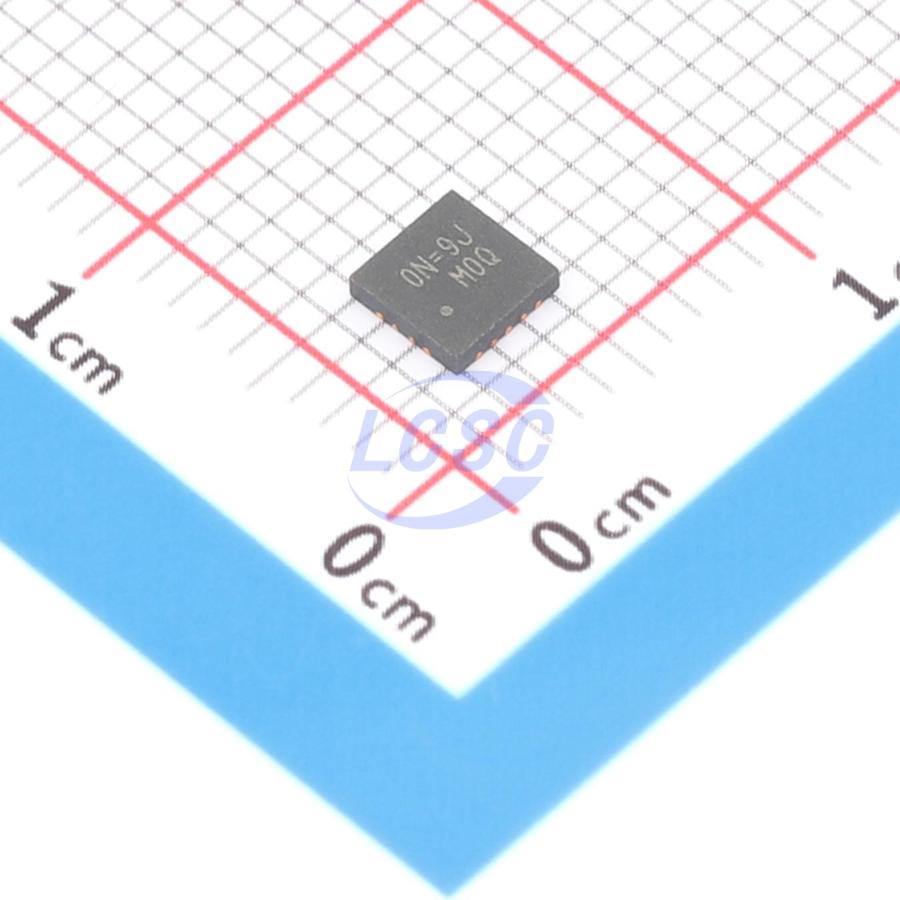

RT2852BHGQW

1.2MHz Step-down type Adjustable 3A 800mV~18V WQFN-14-AL(3.5x3.5) Voltage Regulators - DC DC Switching Regulators RoHS

WQFN-14-AL(3.5x3.5)ROHS3 CompliantActive

High Efficiency 3A Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT2852BHGQW
Store part #: C6461023
Package / case: WQFN-14-AL(3.5x3.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,116 in stock

#C6461023

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
1+	₹177.36	₹177.36
10+	₹145.49	₹1,454.90
30+	₹127.92	₹3,837.60
100+	₹108.19	₹10,819.00
500+	₹99.30	₹49,650.00
1,500+	₹95.40	₹1,43,100.00

Quantity (min 1)

1 × ₹177.36

₹177.36

excl. GST

₹209.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT2852BHGQW

₹177.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Load disconnect;Frequency synchronization;External compensation;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Current: 3A
Output Voltage: 800mV~18V
Quiescent Current: 600uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.091 g

Overview

The RT2852BH is a high efficiency, monolithic synchronous step-down DC-DC converter that can deliver up to 3A output current from a 4.5V to 18V input supply. The RT2852BH current-mode architecture with external compensation allows the transient response to be optimized over a wide range of loads and output capacitors. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. Fault condition protections include output under-voltage protection, output over-voltage protection, and over-temperature protection. The low current shutdown mode provides output disconnection, enabling easy power management in battery-powered systems.

Applications

High Performance Point of Load Regulation
Notebook Computers
High Density and Distributed Power Systems

Key features

Low RDS(ON) Power MOSFET Switches 46mΩ/36mΩ
Input Voltage Range: 4.5V to 18V
Adjustable Switching Frequency: 200kHz to 1.2MHz
Current-Mode Control
Synchronous to External Clock: 200kHz to 1.2MHz
Accurate Voltage Reference ±0.8V ±1.25%, Over -40°C to 105°C
Monotonic Start-Up into Pre-biased Outputs
Adjustable Soft-Start
Power Good Indicator
Under-Voltage and Over-Voltage Protection
Input Under-Voltage Lockout
