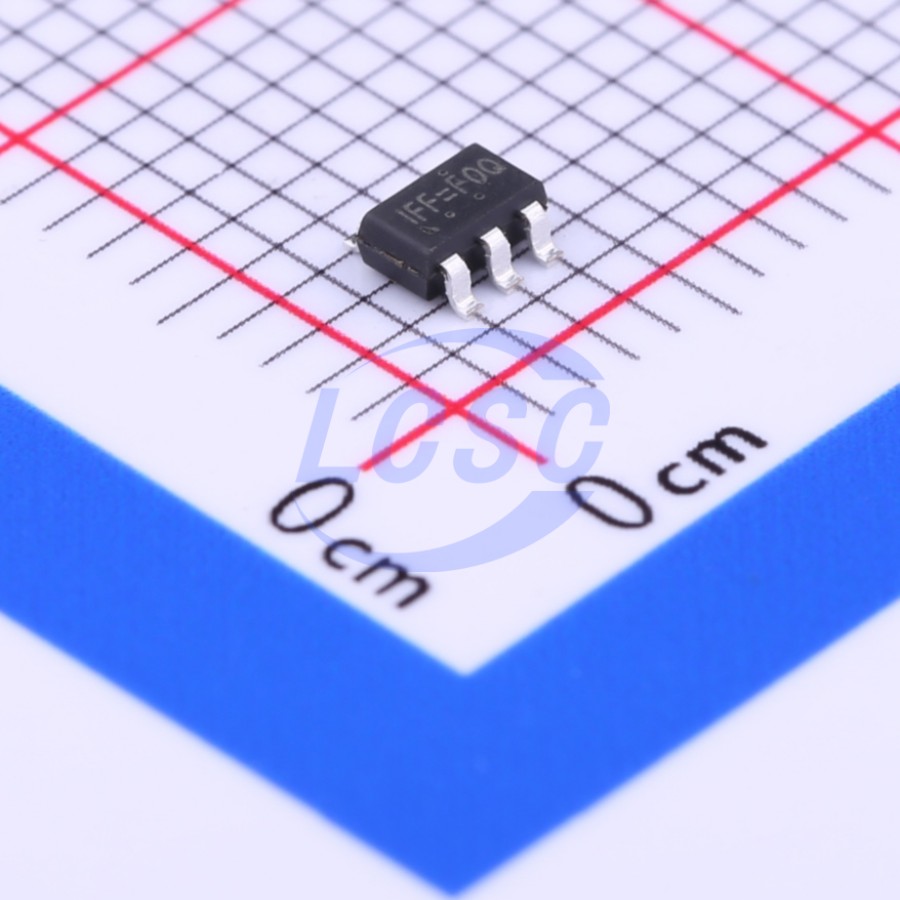

RT7736GGE
60kHz~70kHz 0.38W 12V~25V Flyback SOT-23-6 AC DC Converters, Offline Switchers RoHS
SOT-23-6ROHS3 CompliantActive
SmartJitter PWM Flyback Controller
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT7736GGE
- Store part #
- C250412
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,265 in stock
#C250412
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.80 | ₹179.00 |
| 50+ | ₹31.78 | ₹1,589.00 |
| 150+ | ₹30.06 | ₹4,509.00 |
| 500+ | ₹24.94 | ₹12,470.00 |
| 3,000+ | ₹23.99 | ₹71,970.00 |
| 6,000+ | ₹23.42 | ₹1,40,520.00 |
5 × ₹35.80
₹179.00
excl. GST
₹211.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT7736GGE
₹179.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 60kHz~70kHz
- Pd - Power Dissipation
- 0.38W
- Voltage - Supply
- 12V~25V
- Topology
- Flyback
- Features
- Over Voltage Protection;Overload Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
- Duty Cycle(Max)
- 75%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The RT7736 series is a high performance enhanced PWM flyback controller with proprietary SmartJitterTM technology. The innovative SmartJitterTM technology not only reduces EMI emissions of SMPS when the system enters burst switching green mode, but also eliminates output jittering ripple. The RT7736 is a current mode PWM controller including built-in slope compensation, internal Leading Edge Blanking (LEB) and cycle-by-cycle current limit. It provides excellent green power performance, especially under light load and no load conditions. It allows for simpler design and reduces external component count. This controller integrates comprehensive safety protection functions for robust designs including input Under-Voltage Lockout (UVLO), Over-Voltage Protection (OVP), OverLoad Protection (OLP), Secondary Rectifier Short Protection (SRSP), CS pin open protection and cycle-bycycle current limit. The RT7736 is a cost-effective and compact solution for NB adaptor applications. It is available in the SOT-23-6 package.
Applications
- Switching AC/DC Adaptor
- DVD Open Frame Power Supply
- Set-Top Box (STB)
- ATX Standby Power
- TV/Monitor Standby Power
- PC Peripherals
- NB Adaptor
Key features
- Proprietary SmartJitterTM Technology
- Reducing EMI Emissions of SMPS
- Output Jittering Ripple Elimination
- No Load Input Power Under 100mW (RT7736G/R/L/E)
- Accurate Over Load Protection
- UVLO 9V/14.5V
- PRO Pin for External Arbitrary OVP/OTP
- IC ON/OFF Control (RT7736G/R/L)
- BNO Pin for Brown-In/Out (RT7736B/D/F)
- Soft Driving for EMI Noise Reduction
- Driver Capability: 300mA/−300mA
- High Noise Immunity
- RoHS Compliant and Halogen Free
