RICHTEKDatasheet (PDF)

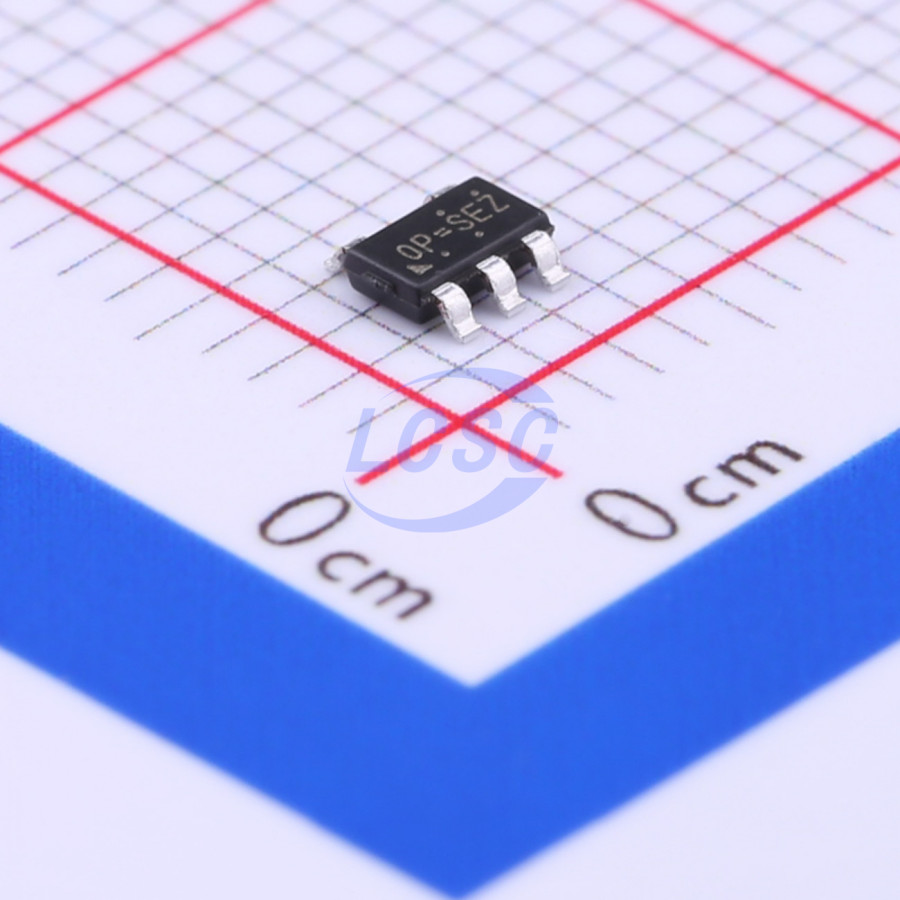

RT8096CHGJ5
1.5MHz Step-down type Adjustable 600mV~3.4V 1A TSOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
1A, 1.5MHz, 6V CMCOT Synchronous Step-Down Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8096CHGJ5
- Store part #
- C250418
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66,305 in stock
#C250418
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.42 | ₹92.10 |
| 50+ | ₹14.67 | ₹733.50 |
| 150+ | ₹12.81 | ₹1,921.50 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 3,000+ | ₹8.82 | ₹26,460.00 |
| 6,000+ | ₹8.27 | ₹49,620.00 |
5 × ₹18.42
₹92.10
excl. GST
₹108.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT8096CHGJ5
₹92.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~3.4V
- Output Current
- 1A
- Quiescent Current
- 22uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The RT8096C is a high efficiency synchronous stepdown DC/DC converter. Its input voltage range is from 2.5V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 1A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The Current Mode Constant-On-time (CMCOT) operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The RT8096C is available in the TSOT-23-5 and TSOT-23-6 packages.
Applications
- STB, Cable Modem, & xDSL Platforms
- LCD TV Power Supply & Metering Platforms
- General Purpose Point of Load (POL)
Key features
- Efficiency Up to 95%
- RDSON 160mΩ HS / 110mΩ LS
- VIN Range 2.5V to 6V
- VREF 0.6V with ±2% Accuracy
- CMCOT Control Loop Design for Best Transient Response, Robust Loop Stability with Low-ESR (MLCC) COUT
- Fixed Soft-Start 1.2ms; PGOOD Function in TSOT-23-6
- Cycle-by-Cycle Over Current Protection
- Input Under Voltage Lockout
- Output Under Voltage Protection (UVP Hiccup)
- Thermal Shutdown Protection
- Power Saving at Light Load
