RICHTEKDatasheet (PDF)

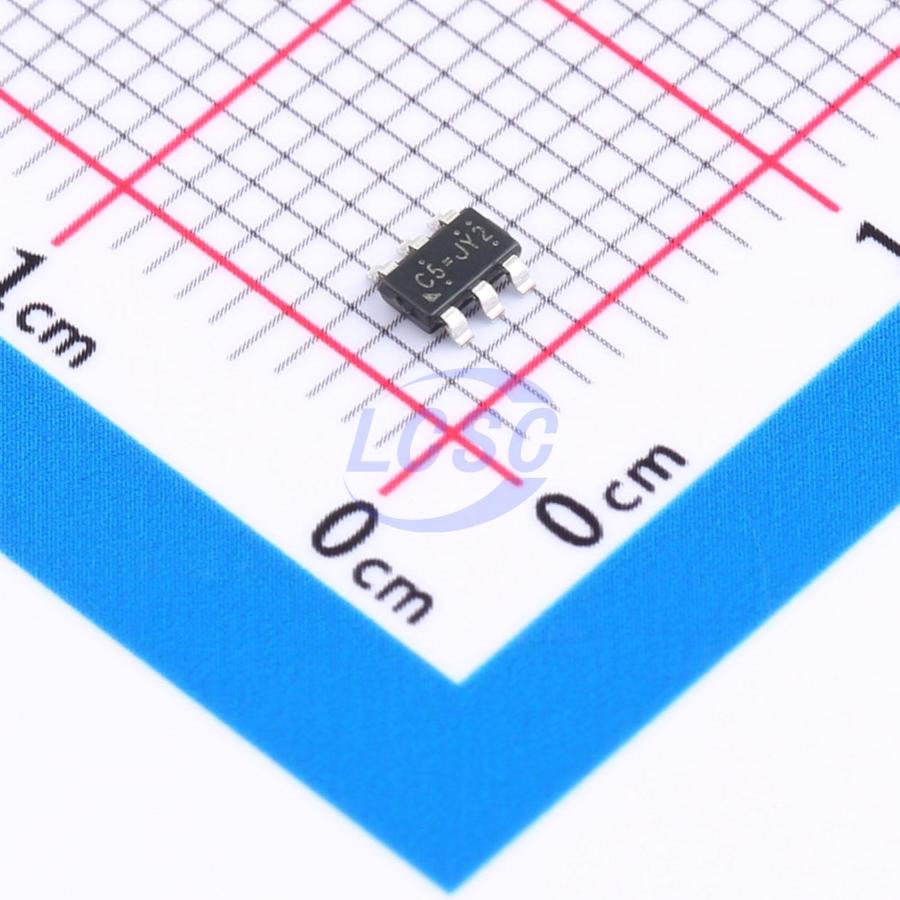

RT8259GJ6
1.4MHz Step-down type Adjustable 800mV~15V 1.2A TSOT-23-6L Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6LROHS3 CompliantActive
High Voltage Buck Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8259GJ6
- Store part #
- C425775
- Package / case
- TSOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C425775
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.34 | ₹211.70 |
| 50+ | ₹33.67 | ₹1,683.50 |
| 150+ | ₹29.97 | ₹4,495.50 |
| 500+ | ₹25.34 | ₹12,670.00 |
| 3,000+ | ₹19.94 | ₹59,820.00 |
| 6,000+ | ₹18.71 | ₹1,12,260.00 |
5 × ₹42.34
₹211.70
excl. GST
₹249.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT8259GJ6
₹211.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.4MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~15V
- Output Current
- 1.2A
- Quiescent Current
- 550uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The RT8259 is a high voltage buck converter that can support the input voltage range from 4.5V to 24V and the output current can be up to 1.2A. Current Mode operation provides fast transient response and eases loop stabilization. The chip also provides protection functions such as cycle-by-cycle current limiting and thermal shutdown protection. The RT8259 is available in a SOT-23-6 and TSOT-23-6 packages.
Applications
- Distributed Power Systems
- Battery Charger
- Pre-Regulator for Linear Regulators
- WLED Drivers
Key features
- Wide Operating Input Voltage Range : 4.5V to 24V
- Adjustable Output Voltage Range : 0.8V to 15V
- 1.2A Output Current
- 0.3Ω Internal Power MOSFET Switch
- High Efficiency up to 92%
- 1.4MHz Fixed Switching Frequency
- Stable with Low ESR Output Ceramic Capacitors
- Thermal Shutdown
- Cycle-By-Cycle Over Current Protection
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT8259ARTZ#C5241933HTCSEMI · SOT-23-6 | HTCSEMI | SOT-23-6 | 1,352 | ₹37.30 · 1,352 in stock | View |
 | AP5100WG-7#C114647DIODES · SOT-26 | DIODES | SOT-26 | 20,180 | ₹48.59 · 20,180 in stock | View |
 | TPS56339DDCR#C2071106TI · TSOT-23-6 | TI | TSOT-23-6 | 9,980 | ₹42.12 · 9,980 in stock | View |
 | TPS56339DDCT#C2071585TI · TSOT-23-6 | TI | TSOT-23-6 | 30 | ₹167.60 · 30 in stock | View |
 | RAA2112304GP3#JA0#C22444906RENESAS · TSOT-23-6 | RENESAS | TSOT-23-6 | 21 | ₹126.41 · 21 in stock | View |
