JSMSEMI

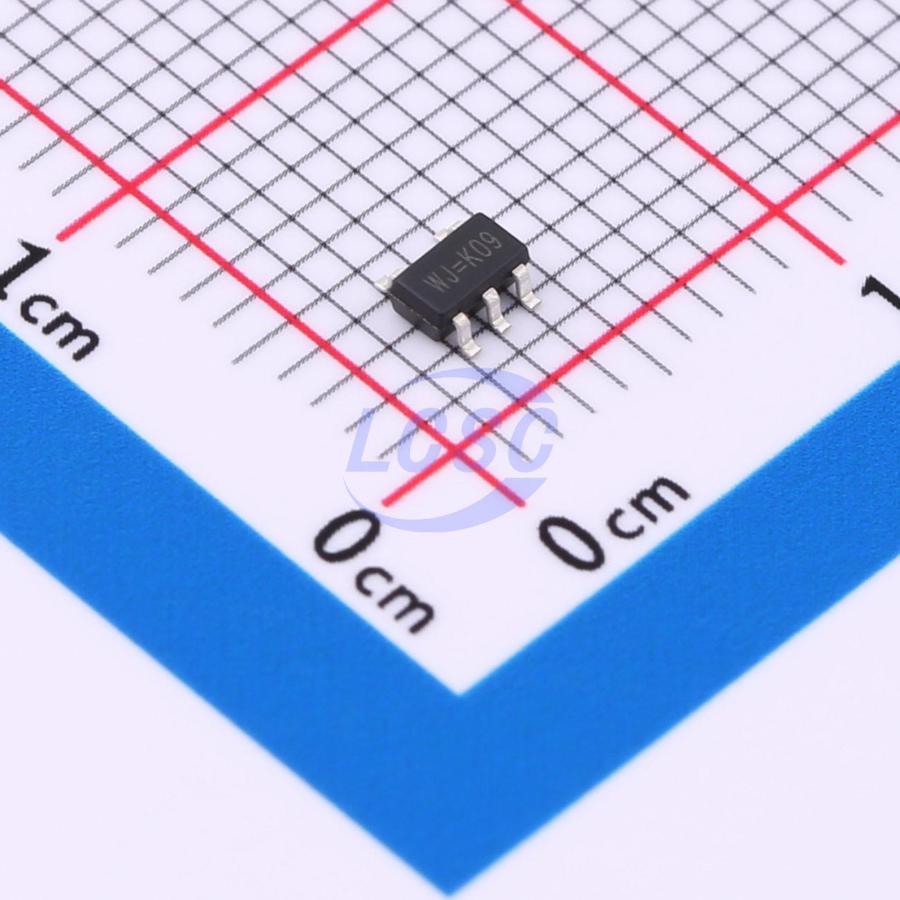

RT9013-33GB-JSM

Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-23-5

SOT-23-5ROHS CompliantActive

400mA Ultra-low Noise and Ultra-fast Response LDO Linear Regulator

Manufacturer: JSMSEMI
Manufacturer part #: RT9013-33GB-JSM
Store part #: C39846929
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,060 in stock

#C39846929

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.65	₹86.50
100+	₹6.79	₹679.00
300+	₹5.85	₹1,755.00
3,000+	₹5.37	₹16,110.00
6,000+	₹4.82	₹28,920.00
9,000+	₹4.54	₹40,860.00

Quantity (min 10, multiples of 10)

10 × ₹8.65

₹86.50

excl. GST

₹102.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT9013-33GB-JSM

₹86.50 for 10 + GST

Specifications

Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 40uA
Output Configuration: Positive
Output Current: 400mA
Operating Voltage: 7V
Features: Over Current Protection;Short Circuit Protection;Enable control
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The RT9013 series are CMOS low-dropout voltage regulators featuring high ripple rejection ratio, low power consumption, and overcurrent/short-circuit protection. These devices offer very low quiescent current (40µA typ.) and can deliver 400mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are ideally suited for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
