RICHTEKDatasheet (PDF)

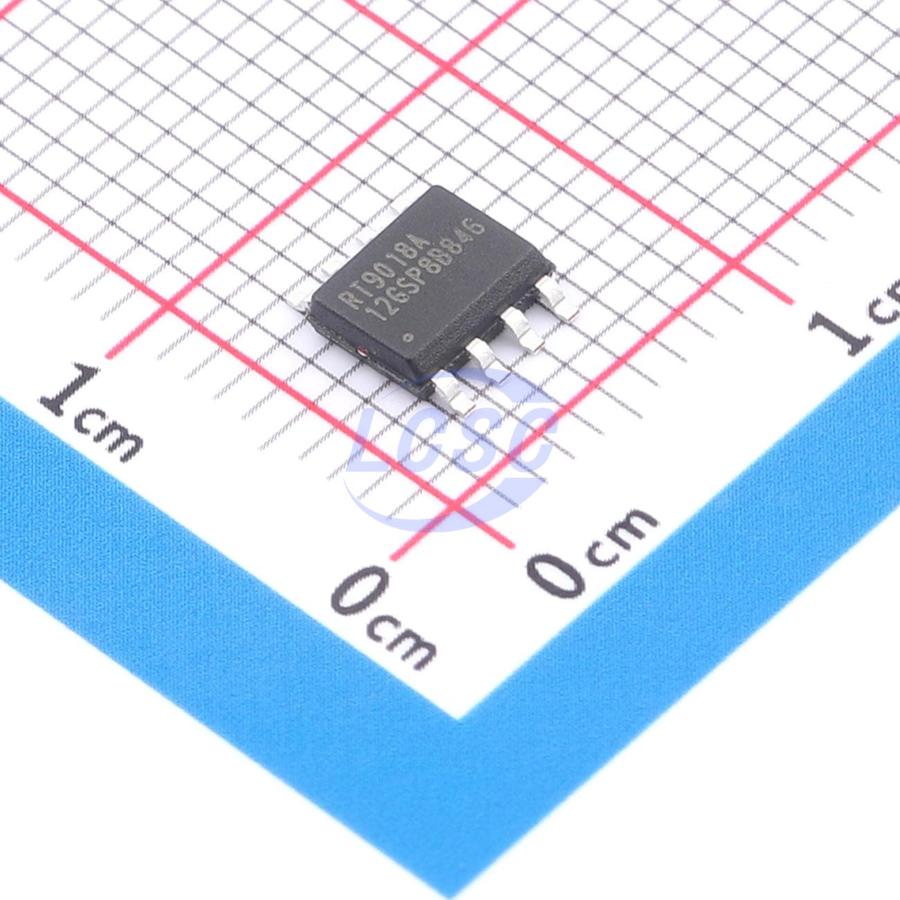

RT9018A-12GSP
Positive SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8ROHS CompliantDiscontinued
Maximum 3A, Ultra Low Dropout Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9018A-12GSP
- Store part #
- C44453382
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,370 in stock
#C44453382
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.98 | ₹234.90 |
| 50+ | ₹36.82 | ₹1,841.00 |
| 150+ | ₹32.47 | ₹4,870.50 |
| 500+ | ₹27.04 | ₹13,520.00 |
| 2,500+ | ₹24.62 | ₹61,550.00 |
| 5,000+ | ₹23.18 | ₹1,15,900.00 |
5 × ₹46.98
₹234.90
excl. GST
₹277.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT9018A-12GSP
₹234.90 for 5 + GST
Specifications
- Output Voltage
- 1.2V;800mV~5.25V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 600uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Features
- Enable control;Operating status indication;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
The RT9018A/B is a high performance positive voltage regulator designed for use in applications requiring very low Input voltage and very low dropout voltage at up to 3A(Peak). It operates with a VIN as low as 1.4V and VDD voltage 3V with output voltage programmable as low as 0.8V. The significant feature includes ultra low dropout, ideal for applications where VOUT is very close to VIN. Additionally, there is an enable pin to further reduce power dissipation while shutdown. The RT9018A/B provides excellent regulation over variations in line, load and temperature, and provides a power OK signal to indicate if the voltage level of Vo reaches 90% of its rating value. The RT9018A/B is available in the SOP-8 (Exposed Pad) and WDFN-10L 3x3 packages with 1V, 1.05V, 1.2V, 1.5V, 1.8V and 2.5V internally preset outputs that are also adjustable using external resistors.
Applications
- Front Side Bus VTT (1.2V/3A)
- NoteBook PC Applications
- Motherboard Applications
Key features
- Maximum 3A Low-Dropout Voltage Regulator
- High Accuracy Output Voltage ±1.5%
- Typically 220mV Dropout at 3A
- Power Good Output
- Output Voltage Pull Low Resistance when Disable
- Thermal and Over Current Protection
- RoHS Compliant and 100% Lead (Pb)-Free
