RICHTEKDatasheet (PDF)

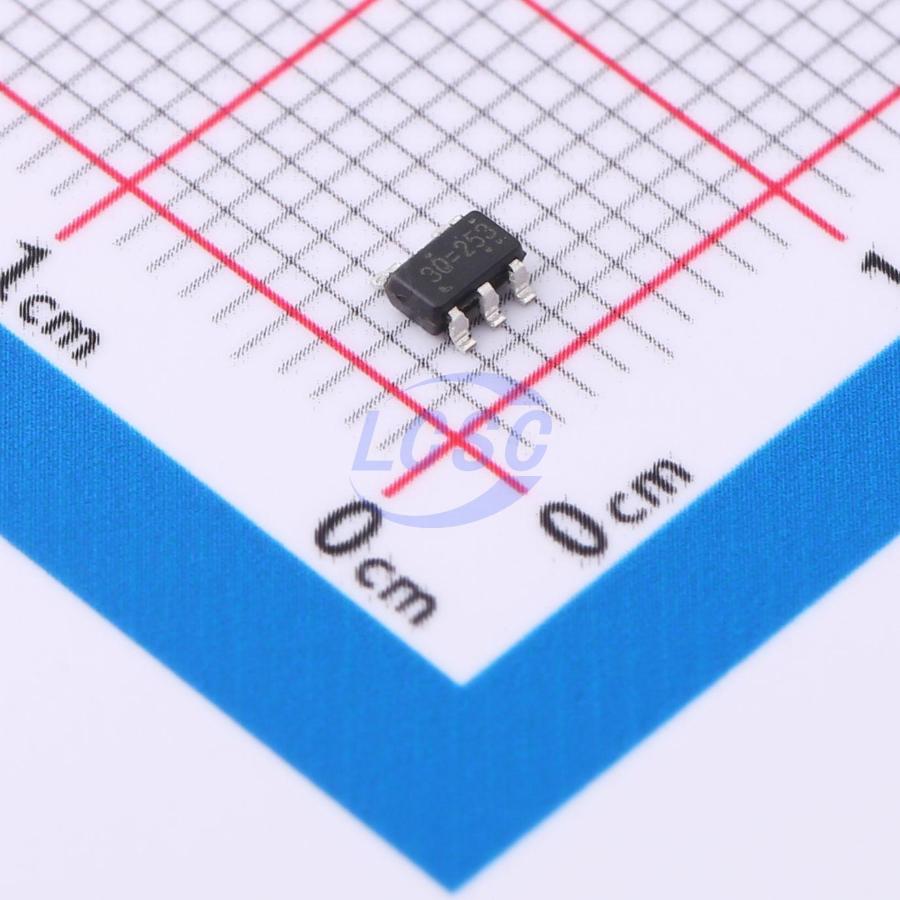

RT9053AGB
800mV~5.15V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Low Dropout, 400mA Adjustable Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9053AGB
- Store part #
- C2926626
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,130 in stock
#C2926626
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.07 | ₹140.35 |
| 50+ | ₹20.93 | ₹1,046.50 |
| 150+ | ₹17.86 | ₹2,679.00 |
| 500+ | ₹14.04 | ₹7,020.00 |
| 3,000+ | ₹11.91 | ₹35,730.00 |
| 6,000+ | ₹10.89 | ₹65,340.00 |
5 × ₹28.07
₹140.35
excl. GST
₹165.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9053AGB
₹140.35 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
The RT9053A is a high performance, 400mA LDO regulator and ultra low dropout. The quiescent current is as low as 42μA, further prolonging the battery life. The RT9053A also works with low ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in handheld wireless devices. The RT9053A consumes typically 0.7μA in shutdown mode. The other features include low dropout voltage, high output accuracy, and current limiting protection. The RT9053A is available in SOT - 23 - 5 and WDFN - 6L 2×2 packages.
Applications
- Mega Sim Card
- CDMA/GSM Cellular Handsets
- Portable Information Appliances
- Laptop, Palmtops, Notebook Computers
- Hand - Held Instruments
- Mini PCI& PCI - Express Cards
- PCMCIA & New Cards
Key features
- Adjustable Output Voltage Down to 0.8V
- Wide Operating Voltage Ranges: 2.2V to 5.5V
- Low Dropout: 230mV at 400mA
- Ultra Fast Response in Line/Load Transient
- Current Limiting Protection
- Thermal Shutdown Protection
- Output Only 1μF Capacitor Required for Stability
- RoHS Compliant and Halogen Free
