RICHTEKDatasheet (PDF)

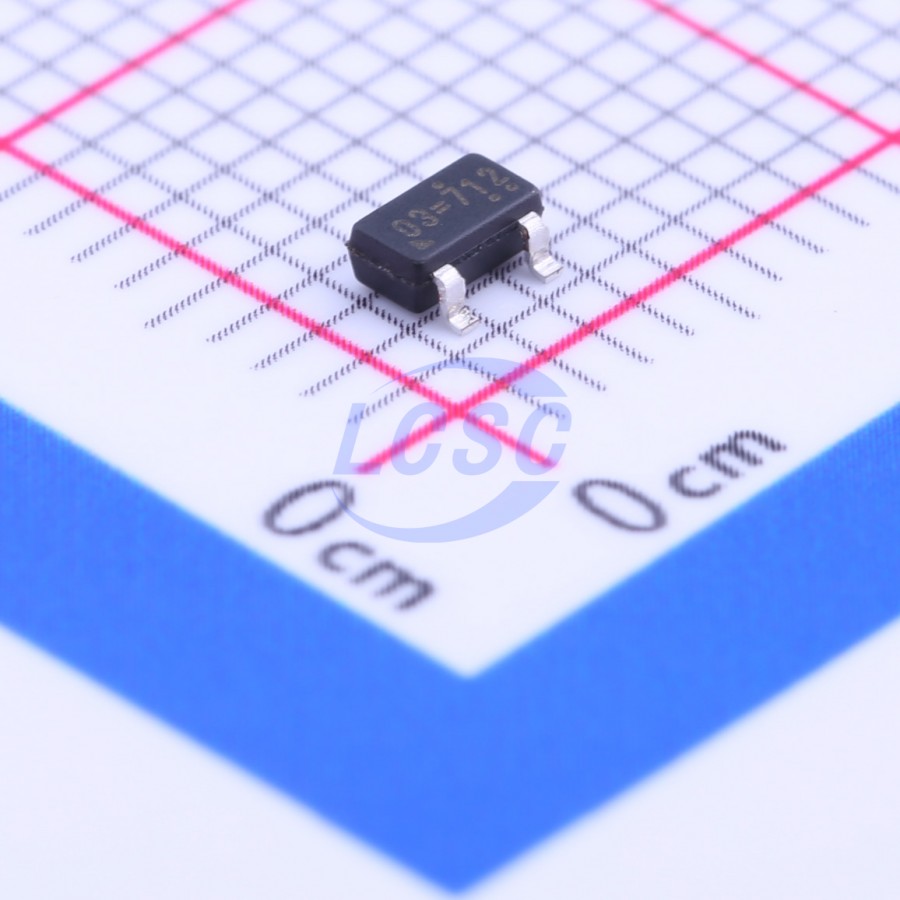

RT9058-33GV
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
36V, 2uA IQ, 100mA Low Dropout Voltage Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9058-33GV
- Store part #
- C147968
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,675 in stock
#C147968
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.55 | ₹147.75 |
| 50+ | ₹23.02 | ₹1,151.00 |
| 150+ | ₹20.24 | ₹3,036.00 |
| 500+ | ₹16.75 | ₹8,375.00 |
| 3,000+ | ₹15.20 | ₹45,600.00 |
| 6,000+ | ₹14.27 | ₹85,620.00 |
5 × ₹29.55
₹147.75
excl. GST
₹174.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9058-33GV
₹147.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
The RT9058 is a low dropout (LDO) linear voltage regulator that features high input voltage, low dropout voltage, ultralow operating current, and miniaturized packaging. With quiescent current as low as 2μA, the RT9058 is ideal for battery-powered equipment. The RT9058's stability requirements are easily met with all types of output capacitors, including tiny ceramic capacitors, over its wide input range (3.5V to 36V) and its load current range (0mA to 100mA). The RT9058 offers standard output voltages of 2.5V, 3V, 3.3V, 5V, 6V, 9V and 12V.
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- 2μA Quiescent Current
- ±2% Output Accuracy
- 100mA Output Current
- 3.5V to 36V Input Voltage Range
- Dropout Voltage: 0.35V at 10mA/VCC 5V, 0.5V at 10mA/VCC 3.5V
- Fixed Output Voltage: 2.5V, 3V, 3.3V, 5V, 6V, 9V, 12V
- Stable with Ceramic or Tantalum Capacitors
- Current Limit Protection
- Over Temperature Protection
- SOT - 23 - 3, SOT - 89 - 3 Packages
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RT9058-33GVL#C6792533RICHTEK · SOT-23-3L | RICHTEK | SOT-23-3L | 3,735 | ₹30.84 · 3,735 in stock | View | |
 | WL9100S3-33B#C3009893WPMtek · SOT-23-3L | WPMtek | SOT-23-3L | 220 | ₹11.47 · 220 in stock | View |
 | TPL820F33-3TR#C224011403PEAK · SOT-23-3 | 3PEAK | SOT-23-3 | 1,205 | ₹20.60 · 1,205 in stock | View |
 | AP7387-33SA-7#C3745795DIODES · SOT-23 | DIODES | SOT-23 | 2,075 | ₹37.24 · 2,075 in stock | View |
 | HE2280A33MR#C5123370HEERMICR · SOT-23-3 | HEERMICR | SOT-23-3 | 1,205 | ₹26.95 · 1,205 in stock | View |
