RICHTEKDatasheet (PDF)

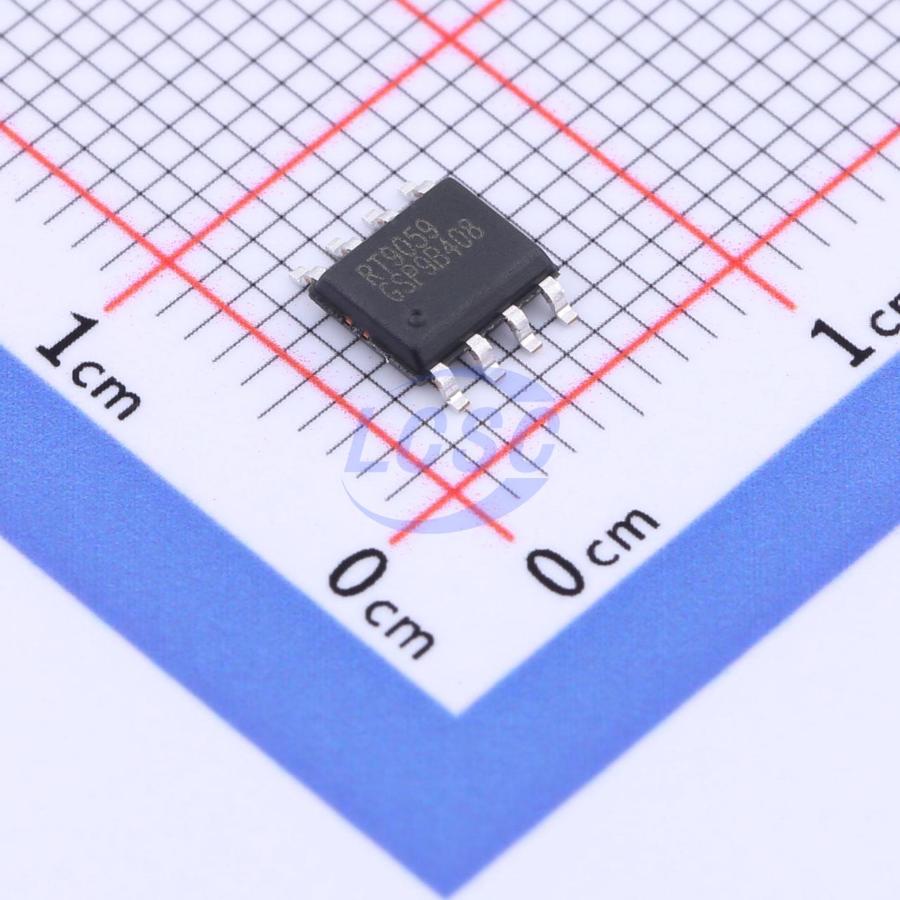

RT9059GSP
3V~5.5V Positive Fixed SOP-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8-EPROHS3 CompliantActive
3A, Ultra-Low Dropout Voltage Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9059GSP
- Store part #
- C425783
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,337 in stock
#C425783
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.83 | ₹26.83 |
| 10+ | ₹21.26 | ₹212.60 |
| 30+ | ₹18.89 | ₹566.70 |
| 100+ | ₹15.91 | ₹1,591.00 |
| 500+ | ₹14.59 | ₹7,295.00 |
| 1,000+ | ₹11.74 | ₹11,740.00 |
1 × ₹26.83
₹26.83
excl. GST
₹31.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT9059GSP
₹26.83 for 1 + GST
Specifications
- Output Voltage
- 3V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 600uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Features
- Enable control;Operating status indication;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
The RT9059 is a high performance positive voltage regulator designed for use in applications requiring very low input voltage and very low dropout voltage at up to 3A. It operates with a VIN as low as 1V and VDD voltage 3V with programmable output voltage as low as 0.8V. The RT9059 features ultra low dropout, ideal for applications where VOUT is very close to VIN. Additionally, it has an enable pin to further reduce power dissipation while shutdown. The RT9059 provides excellent regulation over variations in line, load and temperature. The RT9059 provides a power good signal to indicate if the voltage level of V₀ reaches 90% of its rating value.
Applications
- Notebook PC Applications
- Motherboard Applications
Key features
- Output Current up to 3A
- High Accuracy ADJ Voltage 1.5%
- Dropout Voltage 350mV @ 3A Typically
- VOUT Power Good Signal
- VOUT Pull Low Resistance when Disable
- Current Limiting Protection
- Thermal Shutdown Protection
- RoHS Compliant and Halogen Free
