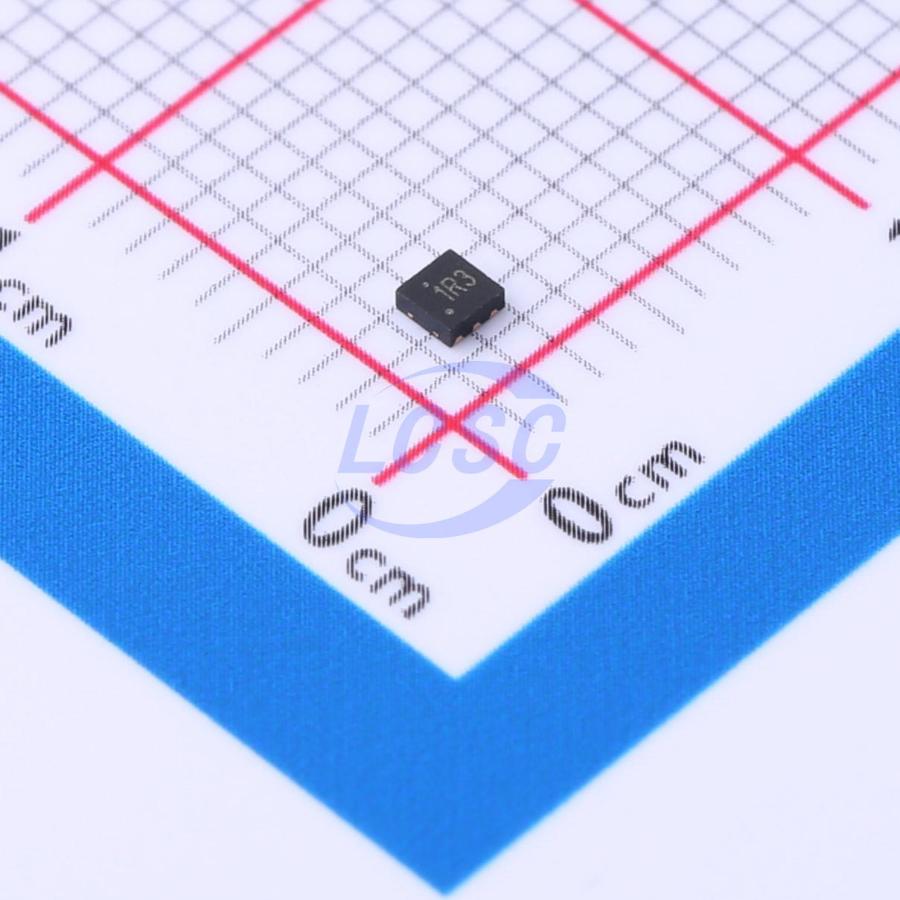

RT9069-33GQU
3.3V Positive Fixed UDFN-6-EP(1.6x1.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN-6-EP(1.6x1.6)ROHS3 CompliantActive
36V, 2uA lQ, 200mA Low Dropout Voltage Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9069-33GQU
- Store part #
- C3001122
- Package / case
- UDFN-6-EP(1.6x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C3001122
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.67 | ₹143.35 |
| 50+ | ₹22.66 | ₹1,133.00 |
| 150+ | ₹20.10 | ₹3,015.00 |
| 500+ | ₹16.88 | ₹8,440.00 |
| 2,500+ | ₹15.45 | ₹38,625.00 |
| 5,000+ | ₹14.59 | ₹72,950.00 |
5 × ₹28.67
₹143.35
excl. GST
₹169.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT9069-33GQU
₹143.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The RT9069 is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2μA and zero disable current is ideal for powering the battery equipment to a longer service life. The RT9069 is stable with the ceramic output capacitor over its wide input range from 3.5V to 36V and the entire range of output load current (0mA to 200mA).
Applications
- Portable, Battery Powered Equipments
- Extra Low Voltage Microcontrollers
- Notebook Computers
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 200mA Output Current with EN
- Zero Disable Current
- Maximum Operating Input Voltage 36V
- Dropout Voltage: 0.2V at 10mA/VIN 5V
- Support Fixed Output Voltage 2.5V, 3V, 3.3V, 5V, 9V, 12V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DS8363-33D6#C5884157DSTECH · DFN1.6x1.6-6L | DSTECH | DFN1.6x1.6-6L | On request | Price on request | Quote | |
