RICHTEKDatasheet (PDF)

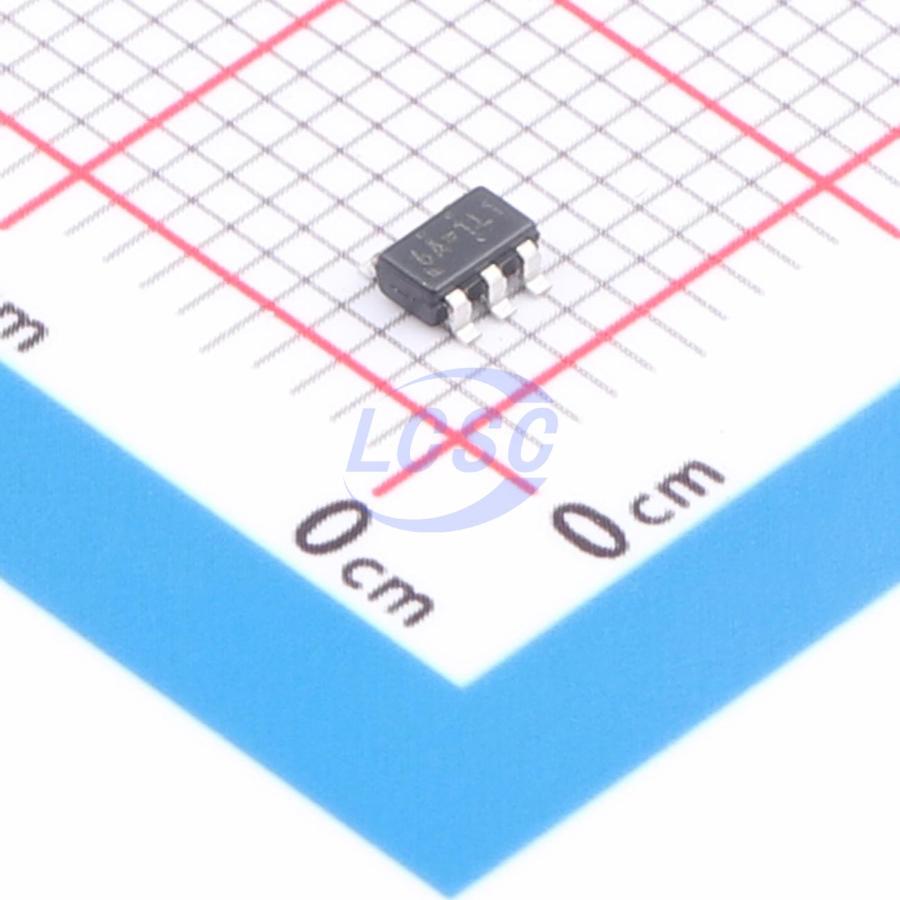

RT9070BGB
1.25V~60V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 1.25V~60V 20mA SOT-23-5
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9070BGB
- Store part #
- C39296855
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,797 in stock
#C39296855
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.05 | ₹101.05 |
| 10+ | ₹90.19 | ₹901.90 |
| 30+ | ₹84.75 | ₹2,542.50 |
| 100+ | ₹79.31 | ₹7,931.00 |
| 500+ | ₹76.06 | ₹38,030.00 |
| 1,000+ | ₹74.33 | ₹74,330.00 |
1 × ₹101.05
₹101.05
excl. GST
₹119.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9070BGB
₹101.05 for 1 + GST
Specifications
- Output Voltage
- 1.25V~60V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 23uA
- Output Configuration
- Positive
- Output Current
- 20mA
- Operating Voltage
- 70V
- Output Type
- Adjustable
- Features
- Enable control;Reverse polarity voltage protection;Reverse-polarity current protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The RT9070B is a high-voltage (operating voltage 70V), low quiescent current, low dropout linear regulator. The device provides 20mA output current with a maximum dropout voltage of 230mV. Its low quiescent and shutdown currents (23μA in active mode, 3μA in shutdown mode) make it ideal for battery-powered and/or high-voltage systems. Ground current is well controlled under all conditions, including dropout. The RT9070B works with any reasonable output capacitor, including 1μF low-ESR ceramic capacitors. It features excellent line and load transient response. Internal protection circuits include reverse battery protection, current limiting, thermal shutdown, and reverse current protection. The RT9070B features an adjustable output voltage (1.25V to 60V) and is available in a SOT-23-5 package.
Applications
- Low current, high voltage regulator
- Battery-powered applications
- Telecommunications and data communications applications
- Automotive applications
Key features
- Wide input voltage range: 4.5V to 70V
- Low quiescent current: 23μA operating, 3μA shutdown
- Low dropout voltage: 180mV typical at 20mA
- Adjustable (1.25V to 60V) output voltage
- Initial output accuracy ±2%
- Stable operation with 1μF output capacitor
- Compatible with aluminum, tantalum, or ceramic capacitors
- No reverse current protection diode required
- 70V reverse battery protection
- Internal current limiting
- Internal thermal shutdown protection
