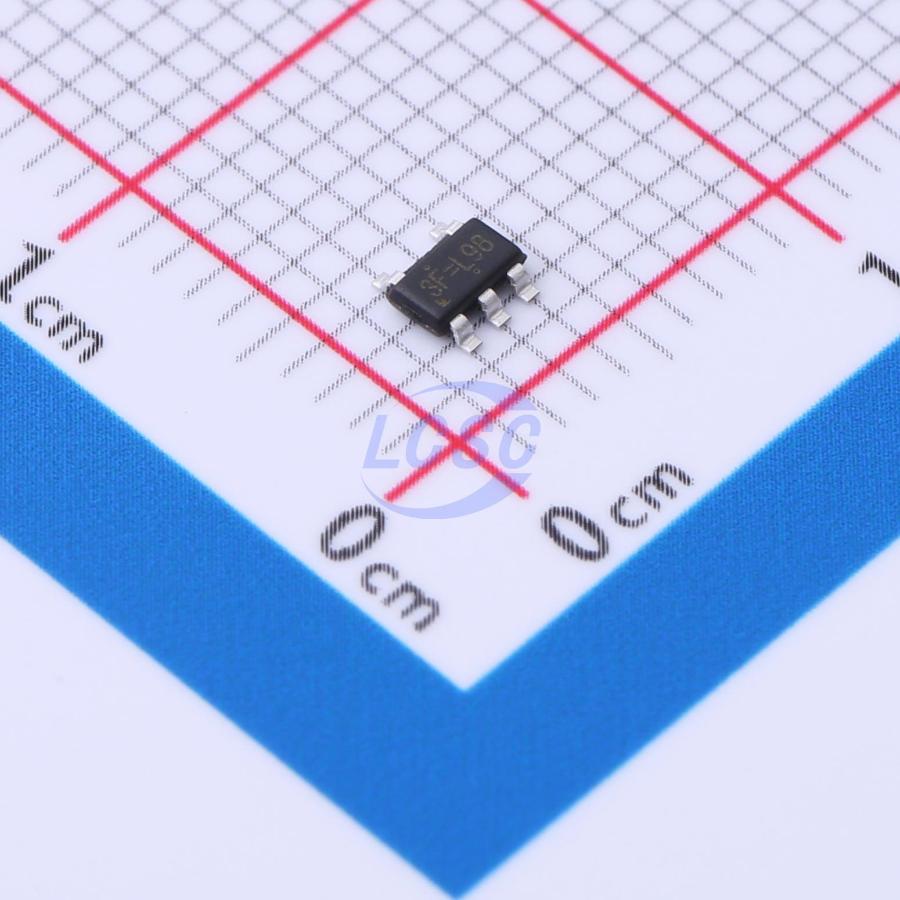

RICHTEK

RT9078-15GJ5

1.5V Positive Fixed TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TSOT-23-5ROHS3 CompliantActive

2uA IQ, 300mA Low-Dropout Linear Regulator

Manufacturer: RICHTEK
Manufacturer part #: RT9078-15GJ5
Store part #: C3034227
Package / case: TSOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,144 in stock

#C3034227

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹25.41	₹25.41
10+	₹20.20	₹202.00
30+	₹17.98	₹539.40
100+	₹15.19	₹1,519.00
500+	₹13.96	₹6,980.00
1,000+	₹13.20	₹13,200.00

Quantity (min 1)

1 × ₹25.41

₹25.41

excl. GST

₹29.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT9078-15GJ5

₹25.41 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Thermal shutdown;Output discharge
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.058 g

Overview

The RT9078 is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 2μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.

Applications

Portable, Battery Powered Equipment
Ultra Low Power Microcontrollers
Notebook Computers

Key features

Input Voltage Range: 1.2V to 5.5V
2μA Ground Current (IQ) at no Load
PSRR = 75dB at 1kHz
Adjustable Output Voltage Range: 0.8V to 5V (TSOT - 23 - 5 Package with SNS Pin Only)
±2% Output Accuracy
Low (0.1μΔ) Shutdown Current
Dropout Voltage: 0.15V at 300mA when VOUT ≥ 3V
Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
Current Limit Protection
Over Temperature Protection
Output Active Discharge Function
TSOT - 23 - 5 and ZQFN - 4L 1x1 (ZDFN - 4L 1x1) Packages Available

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AP2127K-1.5TRG1-MS#C30197539MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,650	₹14.79 · 2,650 in stock	View
LP5907MFX-1.5/NOPB(MS)#C20538876MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	640	₹23.99 · 640 in stock	View
TPS7A2015PDBVR-TP#C49452006TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,730	₹13.69 · 2,730 in stock	View
MSXC6210B152MR#C49375233MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,920	₹12.45 · 2,920 in stock	View
XC6232B152MR(UMW)#C53463887UMW · SOT-23-5	UMW	SOT-23-5	2,920	₹5.79 · 2,920 in stock	View
