RICHTEKDatasheet (PDF)

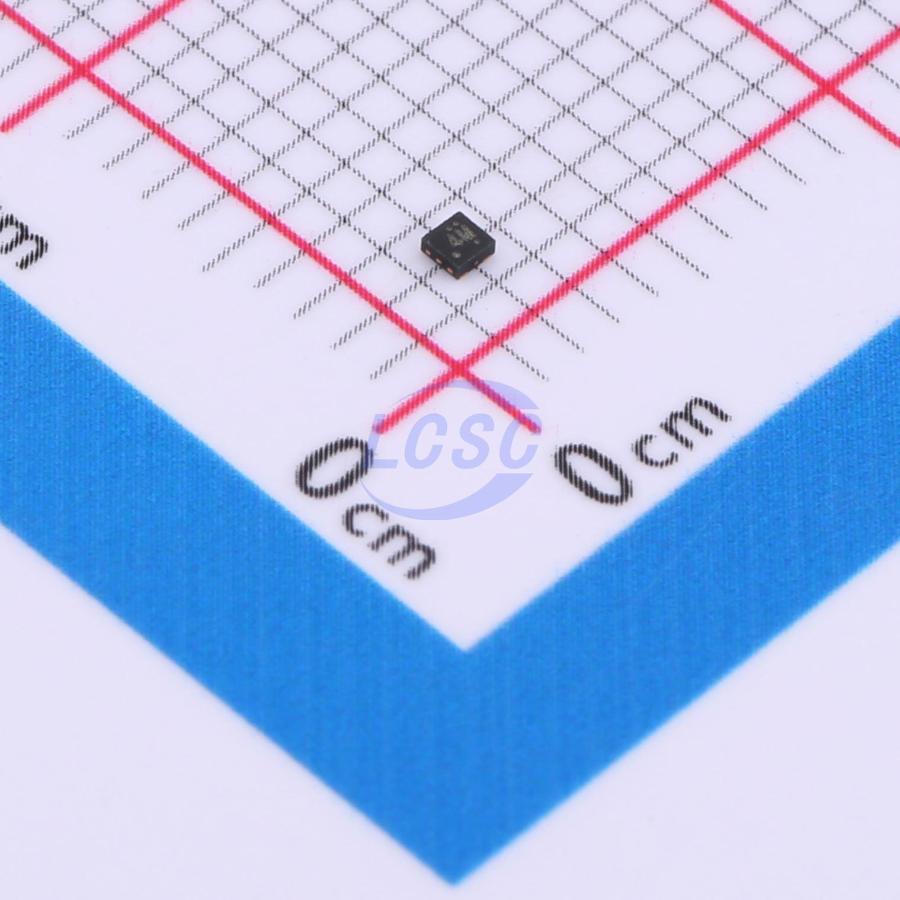

RT9078-28GQZ
2.8V Positive Fixed ZQFN-4L(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
ZQFN-4L(1x1)ROHS3 CompliantActive
2 μA IQ, 300 mA Low Dropout Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9078-28GQZ
- Store part #
- C3020087
- Package / case
- ZQFN-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,933 in stock
#C3020087
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹14.42 | ₹14.42 |
| 10+ | ₹11.48 | ₹114.80 |
| 30+ | ₹10.00 | ₹300.00 |
| 100+ | ₹8.90 | ₹890.00 |
| 500+ | ₹8.02 | ₹4,010.00 |
| 1,000+ | ₹7.58 | ₹7,580.00 |
1 × ₹14.42
₹14.42
excl. GST
₹17.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT9078-28GQZ
₹14.42 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
The RT9078 is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 2μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- Input Voltage Range: 1.2V to 5.5V
- 2μA Ground Current (IQ) at no Load
- PSRR = 75dB at 1kHz
- Adjustable Output Voltage Range: 0.8V to 5V (TSOT - 23 - 5 Package with SNS Pin Only)
- ±2% Output Accuracy
- Low (0.1μΔ) Shutdown Current
- Dropout Voltage: 0.15V at 300mA when VOUT ≥ 3V
- Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- TSOT - 23 - 5 and ZQFN - 4L 1x1 (ZDFN - 4L 1x1) Packages Available
