RICHTEKDatasheet (PDF)

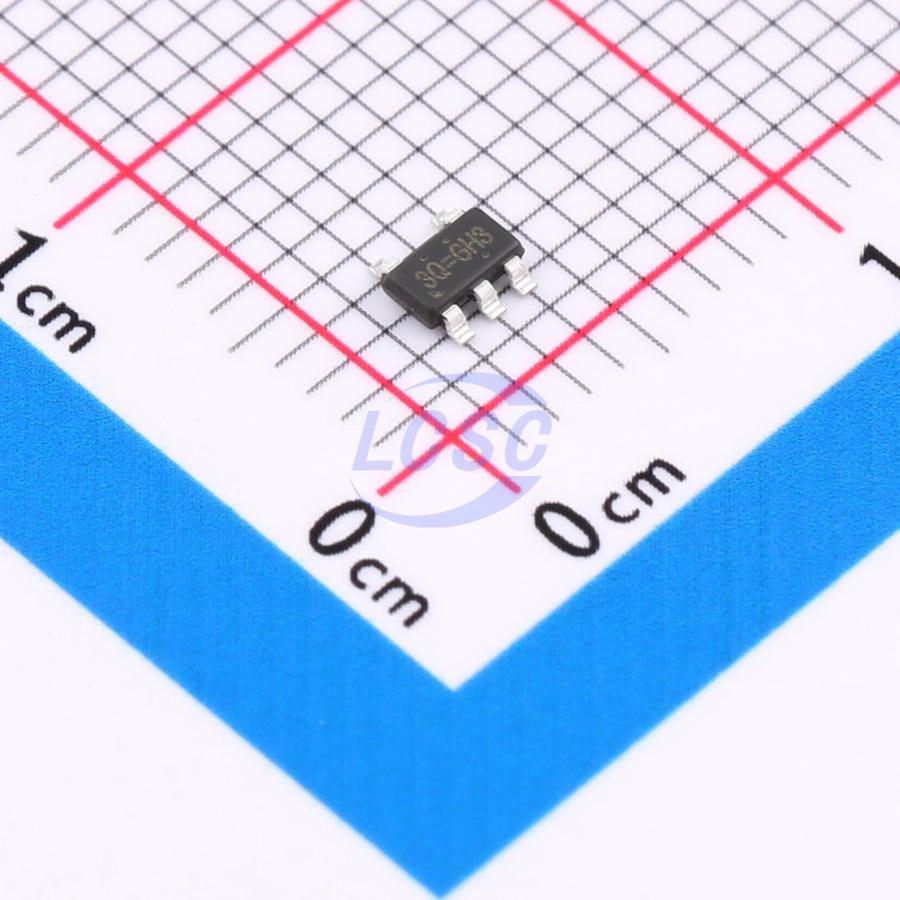

RT9078-33GJ5
3.3V Positive Fixed TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS CompliantActive
2uA IQ, 300mA Low-Dropout Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9078-33GJ5
- Store part #
- C110427
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39,165 in stock
#C110427
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.18 | ₹55.90 |
| 50+ | ₹8.99 | ₹449.50 |
| 150+ | ₹7.89 | ₹1,183.50 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.27 | ₹18,810.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹11.18
₹55.90
excl. GST
₹65.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9078-33GJ5
₹55.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The RT9078 is a low-dropout (LDO) voltage regulator with enable function that operates from 1.2V to 5.5V. It provides up to 300mA of output current and offers low-power operation in miniaturized packaging. The features of low quiescent current as low as 2μA and almost zero disable current is ideal for powering the battery equipment to a longer service life. The RT9078 is stable with the ceramic output capacitor over its wide input range from 1.2V to 5.5V and the entire range of output load current (0mA to 300mA).
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- 2μA Ground Current at no Load
- PSRR = 75dB at 1kHz
- Adjustable Output Voltage Available by Specific Application
- ±2% Output Accuracy
- 300mA (∀m ≥ 1.7V) Output Current with EN
- Low (0.1μΔ) Disable Current
- 1.2V to 5.5V Operating Input Voltage
- Dropout Voltage: 0.15V at 300mA when ∀our ≥ 3V
- Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over Temperature Protection
- TSOT - 23 - 5 and ZQFN - 4L 1x1 (ZDFN - 4L 1x1) Packages Available
