MSKSEMI

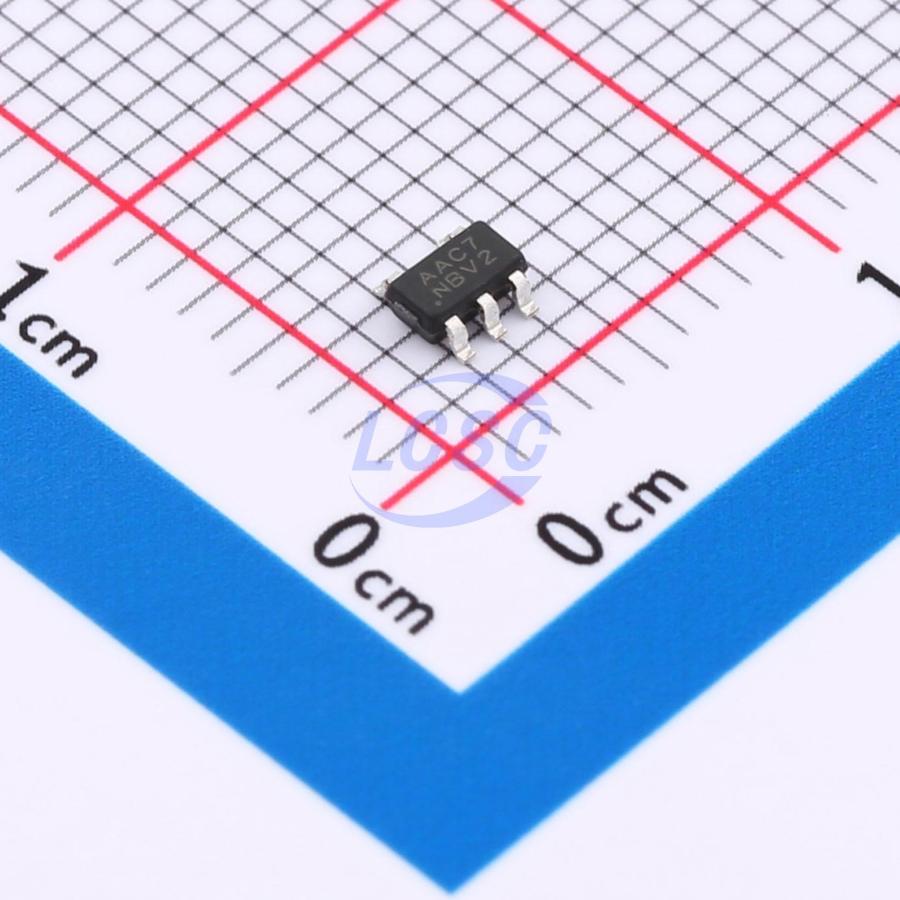

RT9078-33GJ5-MS

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low Dropout (LDO) Converter

Manufacturer: MSKSEMI
Manufacturer part #: RT9078-33GJ5-MS
Store part #: C30197548
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,735 in stock

#C30197548

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.22	₹56.10
50+	₹8.82	₹441.00
150+	₹7.63	₹1,144.50
500+	₹6.73	₹3,365.00
2,500+	₹6.02	₹15,050.00
5,000+	₹5.66	₹28,300.00

Quantity (min 5, multiples of 5)

5 × ₹11.22

₹56.10

excl. GST

₹66.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT9078-33GJ5-MS

₹56.10 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The RT9078-XXGJ5-MS series is a family of low dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. With a quiescent current as low as 2uA, the RT9078-XXGJ5-MS is particularly well-suited for battery-powered and long-term standby applications, helping to reduce system standby power consumption and effectively extend standby time and battery life. An optional EN pin version is available for the RT9078-XXGJ5-MS. Pulling the EN pin low activates shutdown mode, reducing quiescent current to as low as 100nA (typical). The RT9078-XXGJ5-MS series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtops, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection
