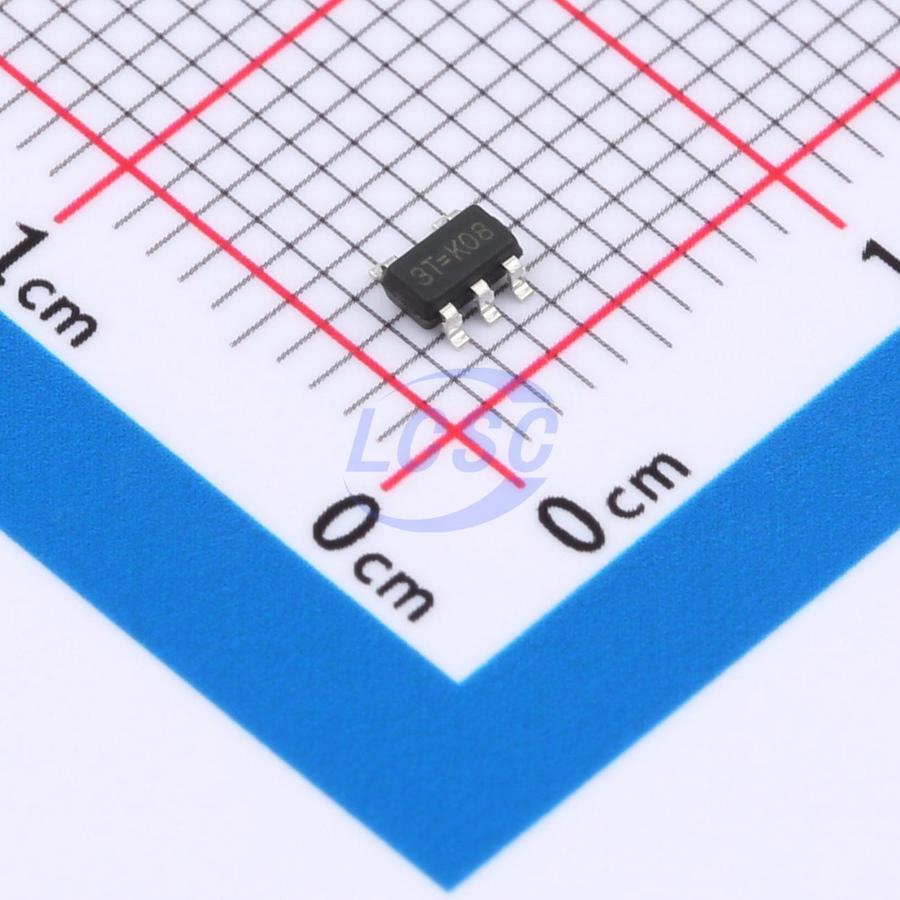

RT9078N-08GJ5-MS

The RT9078N-08GJ5-MS series is a family of low dropout (LDO) regulators featuring a wide input voltage range of 2V to 5.5V, low dropout voltage, low quiescent current, and compact packaging. The RT9078N-08GJ5-MS offers a quiescent current as low as 40uA, making it particularly well-suited for battery-powered devices and long-term standby applications. It helps reduce system standby power consumption, effectively extending standby time and battery life. The RT9078N-08GJ5-MS is available in a version with an EN enable pin; pulling the EN pin low puts the device into shutdown mode, in which the quiescent current can be as low as 1uA (typical). The RT9078N-08GJ5-MS series supports ceramic output capacitors and operates stably across the full 2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.

Applications

• Handheld, battery-powered devices
• Low-power microprocessors
• Laptops, palmtops, and PDAs
• Wireless communication devices
• Audio/video equipment
• Automotive navigation systems

Key features

• 40uA quiescent current (no load)
• ±2% output voltage accuracy
• 300mA output current capability
• 1uA shutdown current (optional version)
• Wide input voltage range: 2V to 5.5V
• Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
• Adjustable output voltage: 0.8V to 4.6V
• Compatible with ceramic or tantalum capacitors
• Current limiting protection
• Thermal shutdown protection
