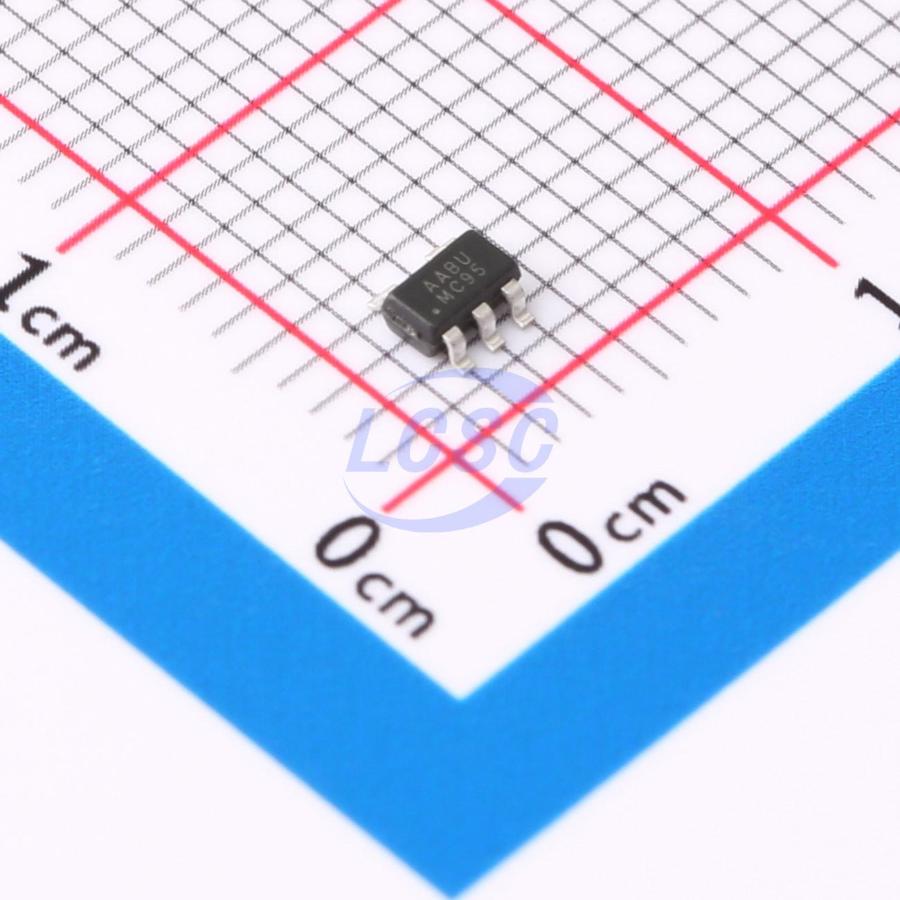

RT9080-28GJ5-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 600mA SOT-23-5
SOT-23-5ROHS CompliantActive
Low-dropout linear voltage step-down converter with a quiescent current of 2 μA and an output current of 600 mA
- Manufacturer
- MSKSEMI
- Manufacturer part #
- RT9080-28GJ5-MS
- Store part #
- C7528828
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C7528828
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.73 | ₹68.65 |
| 50+ | ₹10.85 | ₹542.50 |
| 150+ | ₹9.42 | ₹1,413.00 |
| 500+ | ₹8.33 | ₹4,165.00 |
| 3,000+ | ₹7.47 | ₹22,410.00 |
| 6,000+ | ₹7.04 | ₹42,240.00 |
5 × ₹13.73
₹68.65
excl. GST
₹81.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9080-28GJ5-MS
₹68.65 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The RT9080 series is a family of low dropout (LDO) regulators featuring a wide 1.2V to 6V input voltage range, low dropout voltage, low quiescent current, and compact packaging. With a quiescent current as low as 2μA, the RT9080 is particularly well-suited for battery-powered devices and long-term standby applications, helping to reduce system standby power consumption and effectively extend standby time and battery life. An EN pin version is available; pulling the EN pin low puts the device into shutdown mode, in which the quiescent current drops to as low as 10nA (typical). The RT9080 series supports ceramic output capacitors and operates stably across the full 1.2V to 6V input voltage range and output load current range of 0mA to 600mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video equipment
- Automotive navigation systems
Key features
- 2μA quiescent current (no load)
- ±2% output voltage accuracy
- 600mA output current capability
- 10nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 6V
- Low dropout: 0.32V (V0 = 3.3V / l0 = 600mA)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV75728PDBVR-MS#C54539935MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,980 | ₹38.79 · 2,980 in stock | View |
 | AP2127K-2.8TRG1-MS#C30197536MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 700 | ₹14.35 · 700 in stock | View |
 | XC6220B281MR-MS#C54539943MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 3,000 | ₹17.62 · 3,000 in stock | View |
 | MSXC6210B282MR#C49375236MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,380 | ₹17.20 · 2,380 in stock | View |
