RICHTEKDatasheet (PDF)

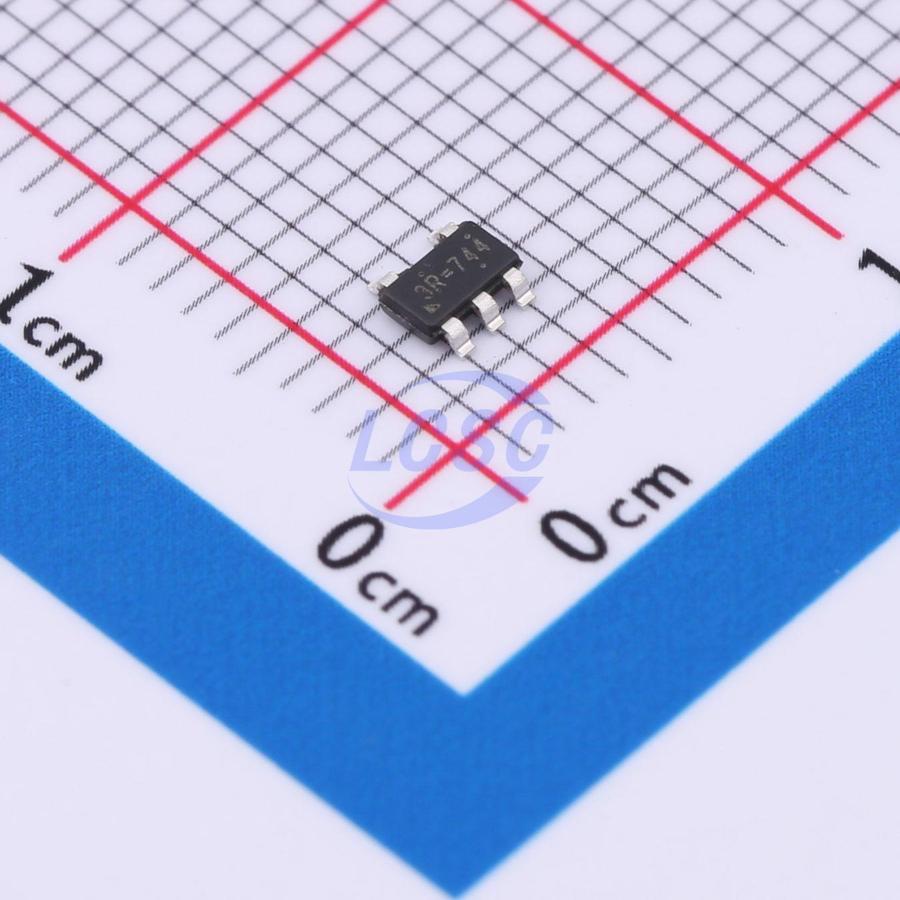

RT9080N-08GJ5
Positive Adjustable TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
2uA IQ, 600mA Low-Dropout Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9080N-08GJ5
- Store part #
- C2909826
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,195 in stock
#C2909826
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.81 | ₹49.05 |
| 50+ | ₹8.69 | ₹434.50 |
| 150+ | ₹8.14 | ₹1,221.00 |
| 500+ | ₹7.71 | ₹3,855.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹6.17 | ₹37,020.00 |
5 × ₹9.81
₹49.05
excl. GST
₹57.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9080N-08GJ5
₹49.05 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
The RT9080 is a low-dropout (LDO) voltage regulators with enable function that operates from 1.2V to 5.5V. It provides up to 600mA of output current and offers low-power operation in miniaturized packaging. The features of low quiescent current as low as 2μA and almost zero disable current is ideal for powering the battery equipment to a longer service life. The RT9080 is stable with the ceramic output capacitor over its wide input range from 1.2V to 5.5V and the entire range of output load current (0mA to 600mA).
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- 2μA Ground Current at no Load
- PSRR = 75dB at 1kHz
- Adjustable Output Voltage Available by Specific Application
- ±2% Output Accuracy
- 600mA (VIN ≥ 2.3V) Output Current with EN
- Low (0.1μΔ) Disable Current
- 1.2V to 5.5V Operating Input Voltage
- Dropout Voltage: 0.31V at 600mA when Vour ≥ 3V
- Support Fixed Output Voltage 0.8V to 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current-Limit Protection
- Over-Temperature Protection
- TSOT-23-5 and ZQFN-4L 1x1 (ZDFN-4L 1x1) Packages Available
