RICHTEKDatasheet (PDF)

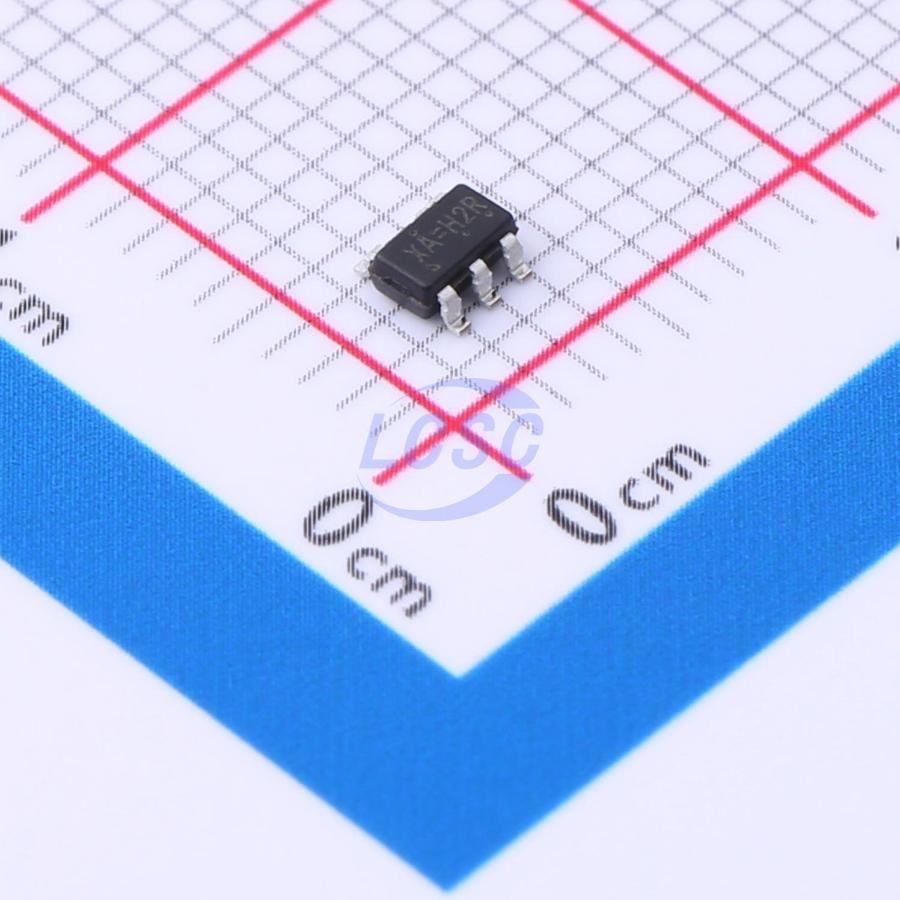

RT9179GB
1.175V~4.5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Adjustable, 300mA LDO Regulator with Enable
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9179GB
- Store part #
- C3020075
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,785 in stock
#C3020075
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.13 | ₹140.65 |
| 50+ | ₹22.23 | ₹1,111.50 |
| 150+ | ₹19.71 | ₹2,956.50 |
| 500+ | ₹16.56 | ₹8,280.00 |
| 3,000+ | ₹15.15 | ₹45,450.00 |
| 6,000+ | ₹14.31 | ₹85,860.00 |
5 × ₹28.13
₹140.65
excl. GST
₹165.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9179GB
₹140.65 for 5 + GST
Specifications
- Output Voltage
- 1.175V~4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
The RT9179 is a high performance linear voltage regulator with enable high function and adjustable output with a 1.175V reference voltage. It operates from an input of 3V to 5.5V and provides output current up to 300mA with two external resistors to set the output voltage ranges from 1.175V to 4.5V. The RT9179 has superior regulation over variations in line and load. Also it provides fast respond to step changes in load. Other features include over-current and overtemperature protection. The device has enable pin to reduce power consumption in shutdown mode. The devices is available in the popular SOT-23-5 package.
Applications
- Battery-Powered Equipment
- Graphic Card
- Peripheral Cards
- PCMCIA Card
Key features
- 300mV Dropout @300mA
- 150uA Low Ground Pin Current
- Excellent Line and Load Regulation
- <1uA Standby Current in Shutdown Mode
- Guaranteed 300mA Output Current
- Stable with 1uF Input and Output Ceramic Capacitor
- Adjustable Output Voltage Ranges from 1.175V to 4.5V
- Over-Temperature/Over-Current Protection
- RoHS Compliant and 100% Lead (Pb)-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9179GB(Z00)#C130831RICHTEK · SOT-23-5 | RICHTEK | SOT-23-5 | On request | ₹73.93 · 0 in stock | View |
