RICHTEKDatasheet (PDF)

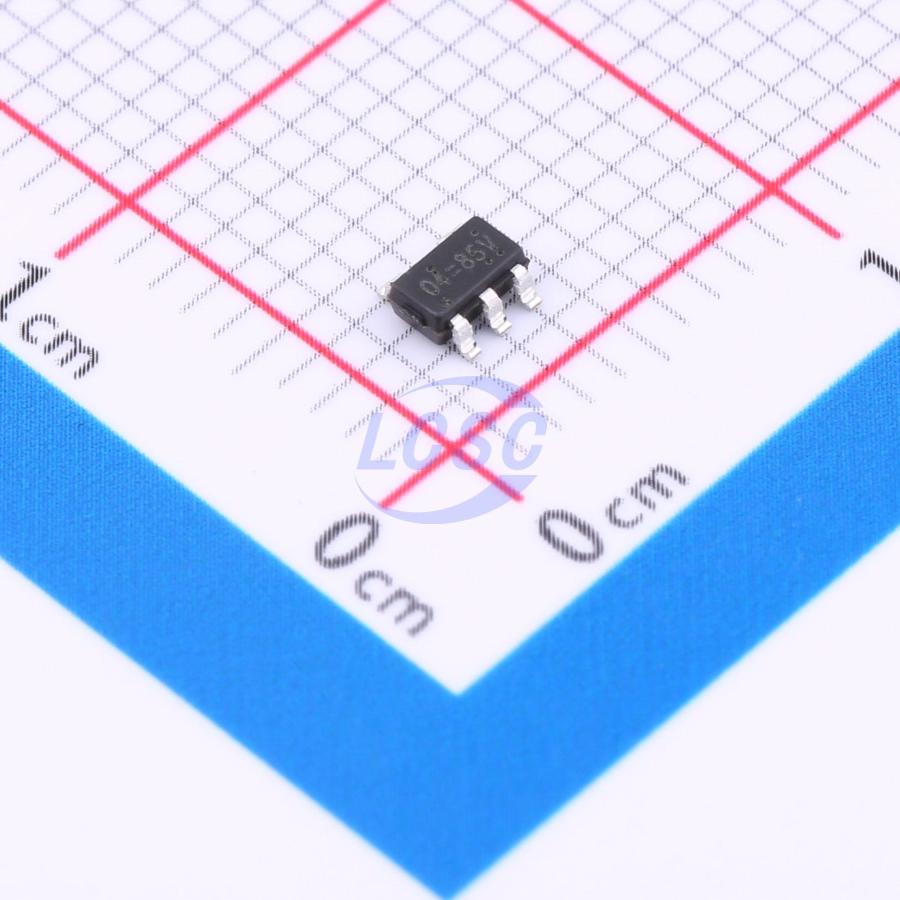

RT9187BGB
800mV~5.3V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
600mA, Ultra-Low Dropout, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9187BGB
- Store part #
- C3031681
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C3031681
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.25 | ₹156.25 |
| 50+ | ₹27.54 | ₹1,377.00 |
| 150+ | ₹25.96 | ₹3,894.00 |
| 500+ | ₹21.09 | ₹10,545.00 |
| 3,000+ | ₹20.20 | ₹60,600.00 |
| 6,000+ | ₹19.67 | ₹1,18,020.00 |
5 × ₹31.25
₹156.25
excl. GST
₹184.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9187BGB
₹156.25 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Noise bypass terminal;Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The RT9187B is a high-performance, 600mA LDO regulator, offering extremely high PSRR and ultra-low dropout. This chip is ideal for portable RF and wireless applications with demanding performance and space requirements. A noise reduction pin is also available for further reduction of output noise. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The RT9187B also works well with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The RT9187B consumes less than 0.1μA in shutdown mode and has fast turn-on time for less than 40μs. The other features include ultra-low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. The RT9187B is available in the SOT-23-5 package.
Applications
- CDMA/GSM Cellular Handsets
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- Mini PCI & PCI-Express Cards
- PCMCIA & New Cards
- Portable Information Appliances
Key features
- Ultra-Low-Noise for RF Application
- Ultra-Fast Response in Line/Load Transient
- Quick Start-Up (Typically 40μs)
- <0.1μA Standby Current When Shutdown
- Low Dropout: 100mV at 500mA
- Wide Operating Voltage Ranges: 2.5V to 5.5V
- TTL-Logic-Controlled Shutdown Input
- Current Limiting Protection
- Thermal Shutdown Protection
- Only 2.2μF Output Capacitor Required for Stability
- High Power Supply Rejection Ratio
- RoHS Compliant and Halogen Free
