RICHTEKDatasheet (PDF)
RT9742GGJ5
1 Active High 1A High Side Switch TSOT-23-5 Power Distribution Switches, Load Drivers RoHS
TSOT-23-5ROHS3 CompliantActive
High-Side Power Switches with Flag
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9742GGJ5
- Store part #
- C250547
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,592 in stock
#C250547
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹23.36 | ₹23.36 |
| 10+ | ₹18.84 | ₹188.40 |
| 30+ | ₹16.91 | ₹507.30 |
| 100+ | ₹14.49 | ₹1,449.00 |
| 500+ | ₹11.43 | ₹5,715.00 |
| 1,000+ | ₹10.78 | ₹10,780.00 |
1 × ₹23.36
₹23.36
excl. GST
₹27.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

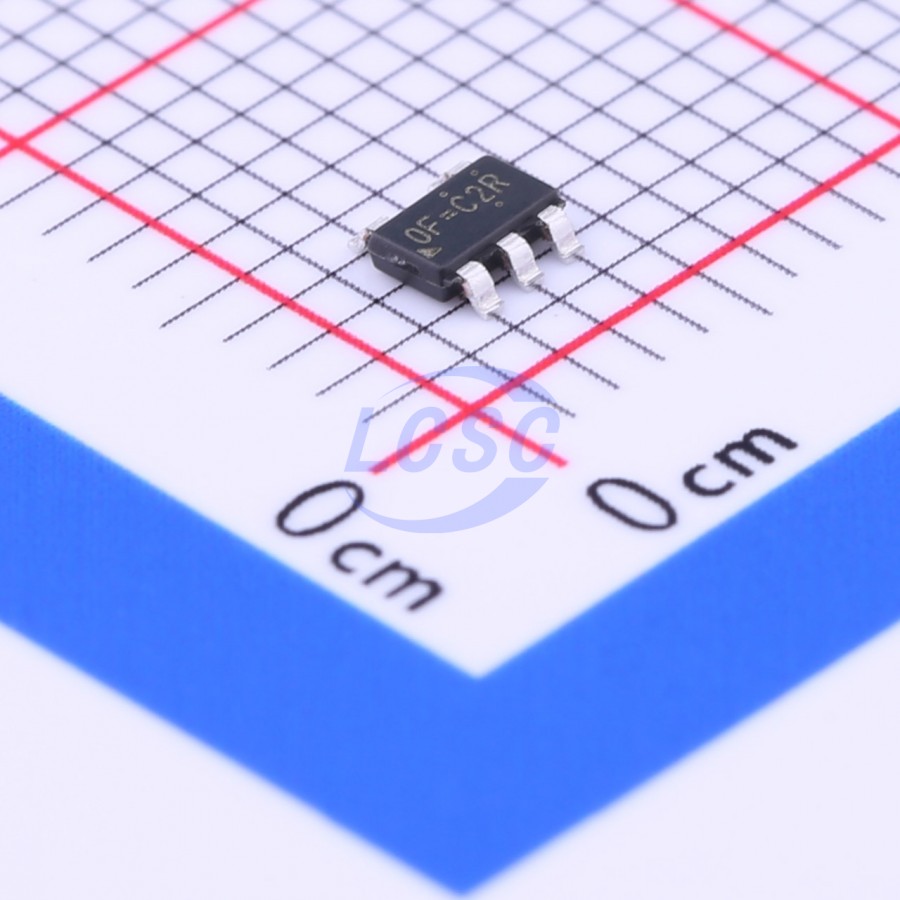

RT9742GGJ5
₹23.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Reverse voltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1A
- RDS(on)
- 70mΩ
- Operating Voltage
- 2.7V~6V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The RT9742 is a cost-effective, low-voltage, single N-MOSFET high-side Power Switch IC for USB application. Low switch-on resistance and low supply current are realized in this IC. The RT9742 integrates an over-current protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection. Besides, a flag output is available to indicate fault conditions to the local USB controller. Furthermore, the chip also integrates an embedded delay function to prevent miss-operation from happening due to inrush-current. The RT9742 is an ideal solution for USB power supply and can support flexible applications since it is available in TSOT-23-5, TSOT-23-5 (FC) and SOT-23-3 package.
Applications
- USB Peripherals
- Notebook PCs
Key features
- 70mΩ/55mΩ (typ.) N-MOSFET Switch
- Operating Range : 2.7V to 6V
- Reverse Blocking Current
- Under Voltage Lockout
- Deglitched Fault Report (FLG)
- Thermal Protection with Fold-back
- Over Current Protection
- Short Circuit Protection
- UL Approved - E219878
- Nemko Approved - NO87949
