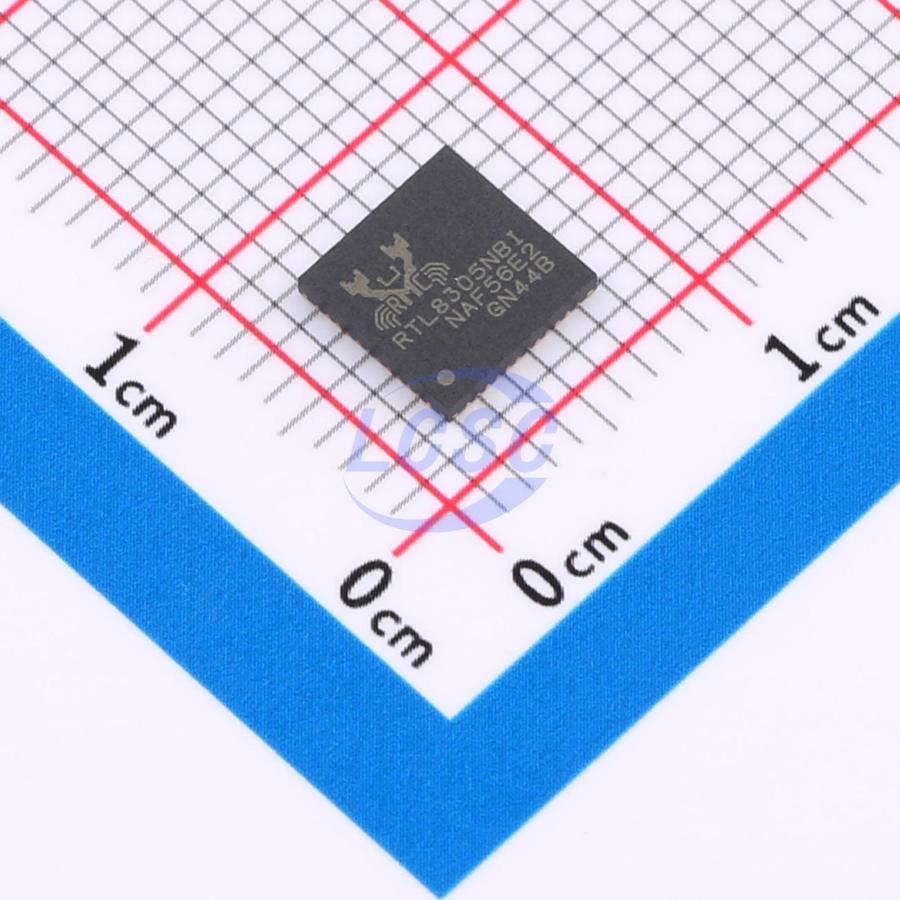

RTL8305NBI-VB-CG

RTL8305NBI-VB-CG is a single-chip 5-port 10/100M Ethernet switch controller. The device integrates five PHY transceivers supporting 10BASE-T and 100BASE-TX operation, a high-performance non-blocking switch engine, a lookup table for address learning and forwarding, and a management interface for configuration and status monitoring. The chip features an advanced low-power design with an integrated on-chip LDO regulator to simplify external power supply design. It supports a wide range of advanced features including VLAN, QoS, bandwidth control, storm filtering, and loop detection, making it well-suited for building cost-effective, feature-rich network switching solutions.

Applications

• Small office/home office routers
• IP cameras
• Industrial control
• Network attached storage
• Network printers

Key features

• Integrated 5-port 10/100M Ethernet PHY transceiver
• Full-duplex IEEE 802.3x flow control and half-duplex backpressure flow control
• Port-based VLAN and IEEE 802.1Q tag VLAN
• QoS with port-based, 802.1p, DSCP, and IP address priority assignment
• Per-port ingress/egress bandwidth control
• MAC address auto-learning, forwarding, and aging
• Storm filtering for broadcast, multicast, and unknown unicast suppression
• Loop detection
• Energy Efficient Ethernet
• Cable diagnostics
• Integrated 1.2V LDO regulator
• Serial management interface and EEPROM configuration
• Multiple LED indication modes
• Low-power design
