RICHTEK

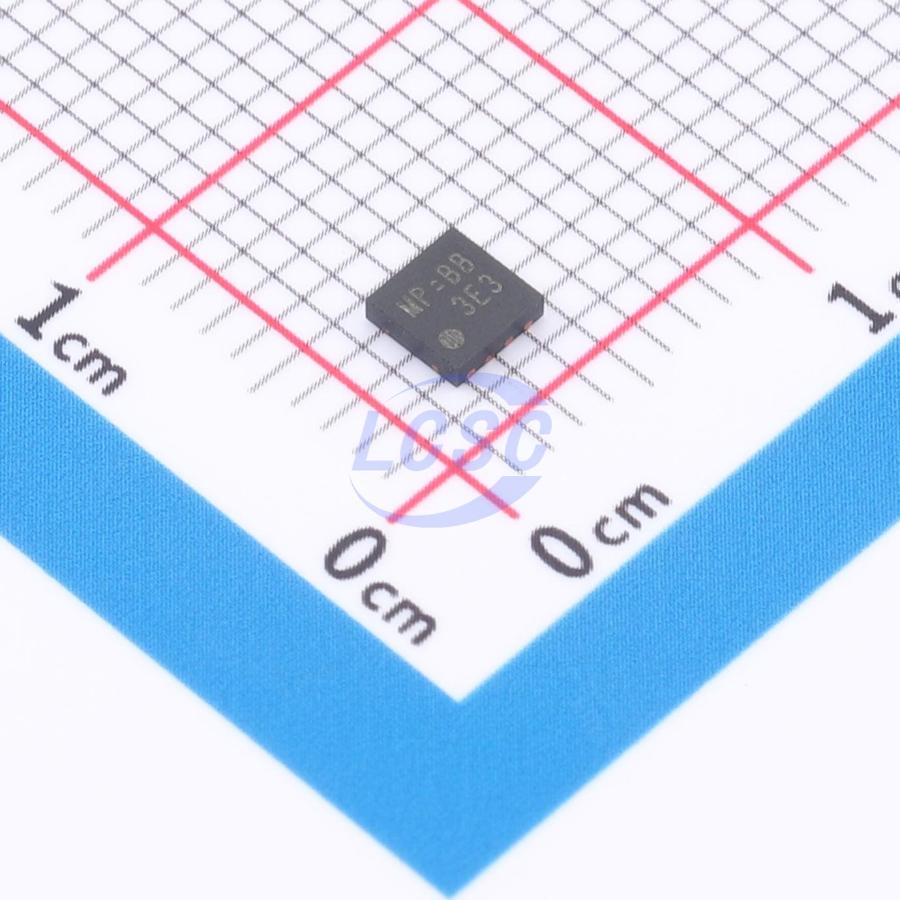

RTQ2510GQV-QA(2)

800mV~5.5V Positive Adjustable VDFN-8(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

VDFN-8(3x3)ROHS3 CompliantActive

1A, Low Noise, Ultra High PSRR, Low-Dropout Linear Regulator

Manufacturer: RICHTEK
Manufacturer part #: RTQ2510GQV-QA(2)
Store part #: C5309637
Package / case: VDFN-8(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,214 in stock

#C5309637

Stock & price checked 40 h ago

Quantity	Unit price	Pack price
1+	₹96.35	₹96.35
10+	₹81.44	₹814.40
30+	₹74.10	₹2,223.00
100+	₹66.55	₹6,655.00
500+	₹62.22	₹31,110.00
1,000+	₹59.84	₹59,840.00

Quantity (min 1)

1 × ₹96.35

₹96.35

excl. GST

₹113.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

RTQ2510GQV-QA(2)

₹96.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 800mV~5.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 190uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 1A
Features: Enable control;Over Current Protection;Thermal shutdown;Input under-voltage protection;Short Circuit Protection;Noise bypass terminal
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.116 g

Overview

The RTQ2510 is a high performance positive low dropout (LDO) regulator designed for applications requiring very low dropout voltage and ultra high Power Supply Ripple Rejection (PSRR) at up to 1A. The input voltage range is from 2.2V to 6V and the output voltage is programmable as low as 0.8V. The P-MOSFET switch provides excellent transient response with only a 4.7μF ceramic output capacitor. The external enable control effectively reduces power dissipation while shutdown and further output noise immunity is achieved through bypass capacitor on NR pin. Additionally, the RTQ2510 features a precise 3% output regulation over line, load, and temperature variations. The device is available in the VDFN-8L 3x3 package and is specified from -40°C to 125°C.

Applications

Telecom/Networking Cards
Motherboards/Peripheral Cards
Industrial Applications
Wireless Infrastructures
Set-Top Boxes
Medical Equipments
Notebook Computers
Battery Powered Systems

Key features

AEC-Q100 Grade 1 Qualified
Very Low Dropout: 170mV Typical at 1A
Ultra High PSRR: 63dB @ 1kHz, 38dB @ 1MHz
Input Voltage Range: 2.2V to 6V
Adjustable Output Voltage: 0.8V to 5.5V
-40°C to 125°C Operating Junction Temperature Range
Excellent Noise Immunity
Fast Response Over Load and Line Transient
Stable with a 4.7μF Output Ceramic Capacitor
Accurate Output Voltage 3% Over Load, Line, Process, and Temperature Variations
Enable Control
Over-Current Protection
Over-Temperature Protection

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
RT2519GQV(2)#C7065268RICHTEK · VDFN-8(3x3)	RICHTEK	VDFN-8(3x3)	168	₹69.74 · 168 in stock	View
RT2519WGQV#C3034121RICHTEK · VDFN-8AL(3x3)	RICHTEK	VDFN-8AL(3x3)	1,479	₹66.72 · 1,479 in stock	View
ISL80510IRAJZ-T#C3749208RENESAS · DFN-8(3x3)	RENESAS	DFN-8(3x3)	4	₹134.77 · 4 in stock	View
ISL80510IRAJZ#C695465RENESAS · DFN-8(3x3)	RENESAS	DFN-8(3x3)	48	₹158.68 · 48 in stock	View
RTQ2521GQW#C6207665RICHTEK · WDFN-8-EL(3x3)	RICHTEK	WDFN-8-EL(3x3)	448	₹93.97 · 448 in stock	View
