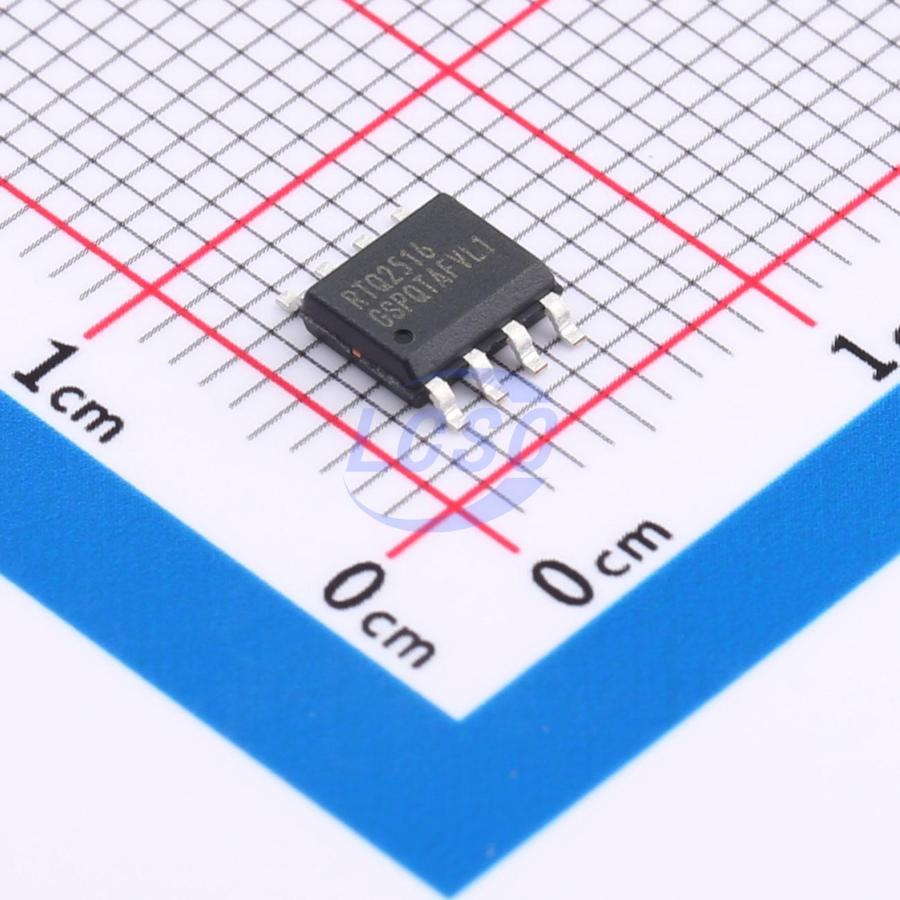

RICHTEK

RTQ2516GSP-QT

500mV~5.6V Positive Adjustable SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOIC-8ROHS3 CompliantActive

2A, Low Input Voltage, Ultra-Low Dropout LDO Regulator with Enable

Manufacturer: RICHTEK
Manufacturer part #: RTQ2516GSP-QT
Store part #: C5374874
Package / case: SOIC-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,344 in stock

#C5374874

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
1+	₹83.92	₹83.92
10+	₹68.08	₹680.80
30+	₹60.06	₹1,801.80
100+	₹52.26	₹5,226.00
500+	₹47.48	₹23,740.00
1,000+	₹45.10	₹45,100.00

Quantity (min 1)

1 × ₹83.92

₹83.92

excl. GST

₹99.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RTQ2516GSP-QT

₹83.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 500mV~5.6V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 700uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 2A
Output Type: Adjustable
Features: Enable control;Built-in soft-start;Operating status indication;Over Current Protection;Thermal shutdown;Reverse-polarity current protection;Short Circuit Protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.276 g

Overview

The RTQ2516 is a high performance positive voltage regulator designed for use in applications requiring ultralow input voltage and ultra-low dropout voltage at up to 2 amperes. It operates with an input voltage as low as 1.4V, with output voltage programmable as low as 0.5V. The RTQ2516 features ultra low dropout, ideal for applications where output voltage is very close to input voltage. Additionally, the RTQ2516 has an enable pin to further reduce power dissipation while shutdown. The RTQ2516 provides excellent regulation over variations in line, load and temperature. The RTQ2516 is available in the SOP-8 (Exposed Pad) package. The output voltage can be set by an external divider depending on how the FB pin is configured.
