RALEC

RTT062494FTP

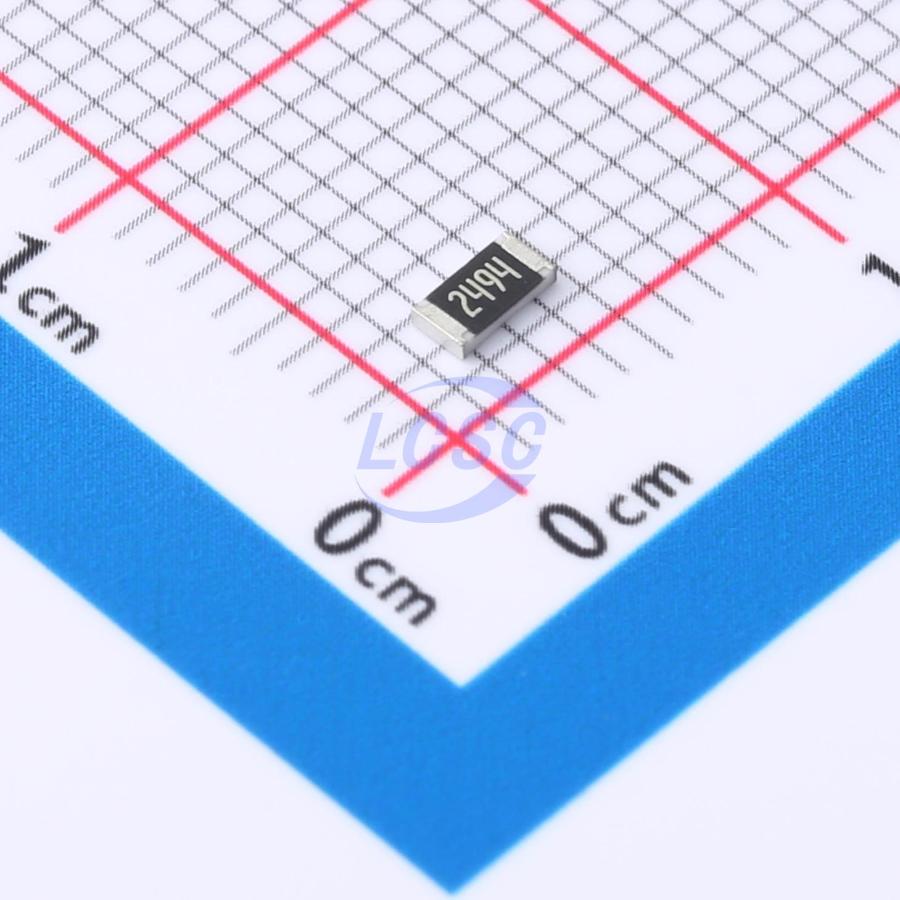

2.49MΩ ±1% 250mW 1206 Thick Film Resistor

1206ROHS CompliantActive

RES 2.49MΩ ±1% 250mW 1206

Manufacturer: RALEC
Manufacturer part #: RTT062494FTP
Store part #: C7422147
Package / case: 1206
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,900 in stock

#C7422147

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
100+	₹0.6218	₹62.18
1,000+	₹0.4895	₹489.50
5,000+	₹0.3837	₹1,918.50
10,000+	₹0.344	₹3,440.00
50,000+	₹0.3175	₹15,875.00
1,00,000+	₹0.2911	₹29,110.00

Quantity (min 100, multiples of 100)

100 × ₹0.6218

₹62.18

excl. GST

₹73.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

RTT062494FTP

₹62.18 for 100 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 250mW
Resistance: 2.49MΩ
Voltage Rating: 200V
Operating Temperature: -55℃~+155℃
Type: Thick Film Resistor
Temperature Coefficient: ±100ppm/℃
Tolerance: ±1%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 100 (multiples of 100)
Unit weight: 0.03 g

Overview

This specification applies to RTT series lead-free, halogen-free, RoHS-compliant thick film chip resistors. The product is intended for general electronic applications.

Applications

General electronic use
