RALECDatasheet (PDF)
RTT06R056FTP

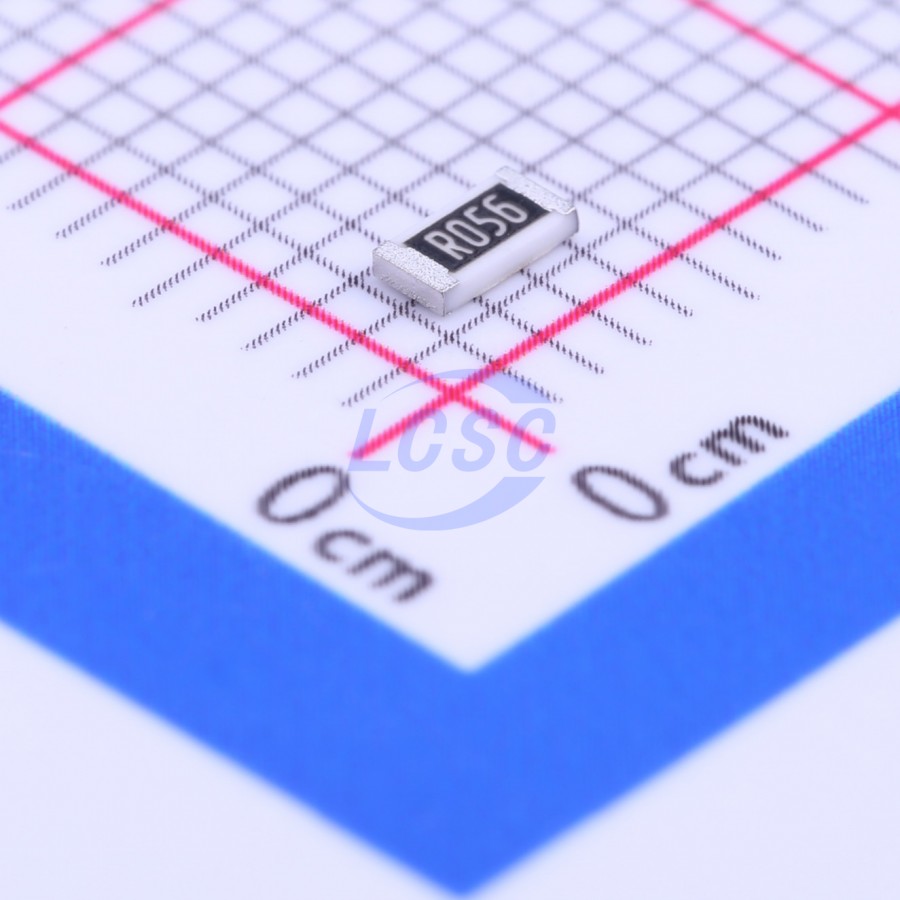

56mΩ ±1% 333mW 1206 Thick Film Resistor
1206ROHS CompliantActive
RES 56mΩ ±1% 333mW 1206
- Manufacturer
- RALEC
- Manufacturer part #
- RTT06R056FTP
- Store part #
- C159422
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,250 in stock
#C159422
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.98 | ₹99.00 |
| 500+ | ₹1.60 | ₹800.00 |
| 1,500+ | ₹1.39 | ₹2,085.00 |
| 5,000+ | ₹1.08 | ₹5,400.00 |
| 25,000+ | ₹0.9658 | ₹24,145.00 |
| 50,000+ | ₹0.9129 | ₹45,645.00 |
50 × ₹1.98
₹99.00
excl. GST
₹116.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RTT06R056FTP
₹99.00 for 50 + GST
Specifications
- Resistance
- 56mΩ
- Power(Watts)
- 333mW
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±600ppm/℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification applies to RTT series lead-free, halogen-free, RoHS-compliant thick film chip resistors. The product is intended for general electronic applications.
Applications
- General electronic use
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CS06W3F560MT5E#C474136UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,405 | ₹6.71 · 4,405 in stock | View |
 | 1206W3F560MT5E#C247546UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 2,120 | ₹3.74 · 2,120 in stock | View |
 | GR1206F0R056T5G00#C49655089GiantOhm · 1206 | GiantOhm | 1206 | 1,750 | ₹1.15 · 1,750 in stock | View |
 | RL1206FR-7W0R056L#C859915YAGEO · 1206 | YAGEO | 1206 | 4,900 | ₹3.86 · 4,900 in stock | View |
| RLC73PN2BR056FTD#C20476657TE Connectivity · 1206 | TE Connectivity | 1206 | On request | Price on request | Quote | |
