RALECDatasheet (PDF)
RTT203004FTE

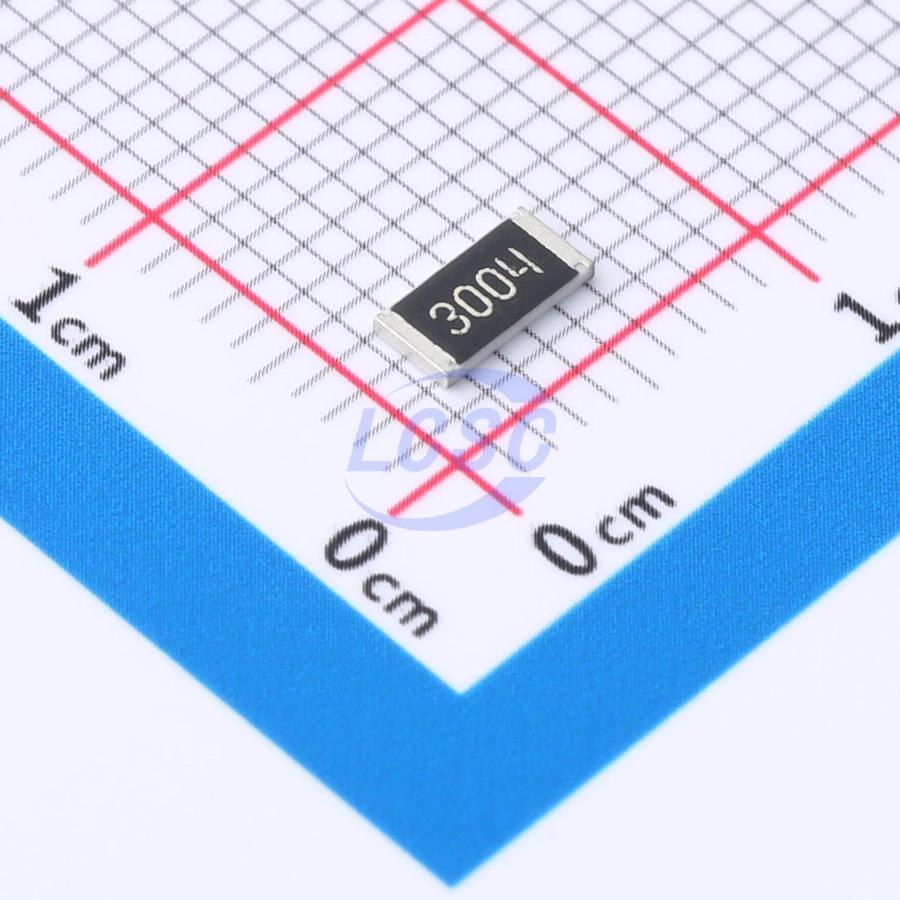

3MΩ ±1% 750mW 2010 Thick Film Resistor
2010ROHS CompliantActive
RES 3MΩ ±1% 750mW 2010
- Manufacturer
- RALEC
- Manufacturer part #
- RTT203004FTE
- Store part #
- C7422169
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
860 in stock
#C7422169
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.85 | ₹77.00 |
| 200+ | ₹3.07 | ₹614.00 |
| 600+ | ₹2.63 | ₹1,578.00 |
| 4,000+ | ₹2.13 | ₹8,520.00 |
| 8,000+ | ₹1.91 | ₹15,280.00 |
| 20,000+ | ₹1.79 | ₹35,800.00 |
20 × ₹3.85
₹77.00
excl. GST
₹90.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RTT203004FTE
₹77.00 for 20 + GST
Specifications
- Power(Watts)
- 750mW
- Resistance
- 3MΩ
- Voltage Rating
- 200V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.045 g
Overview
This specification applies to RTT series lead-free, halogen-free, RoHS-compliant thick film chip resistors. The product is intended for general electronic applications.
Applications
- General electronic use
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CR2010F3M00E04Z#C165380EVER OHMS · 2010 | EVER OHMS | 2010 | 5,410 | ₹8.08 · 5,410 in stock | View |
| HP101WF3004T4E#C2775559UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | On request | Price on request | Quote | |
 | 201007F3004T4E#C421864UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | On request | Price on request | Quote |
| HV1007F3004T4E#C2779336UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | On request | Price on request | Quote | |
| NQ1007F3004T4E#C2781430UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | On request | Price on request | Quote | |
