RALECDatasheet (PDF)
RTT205604FTE

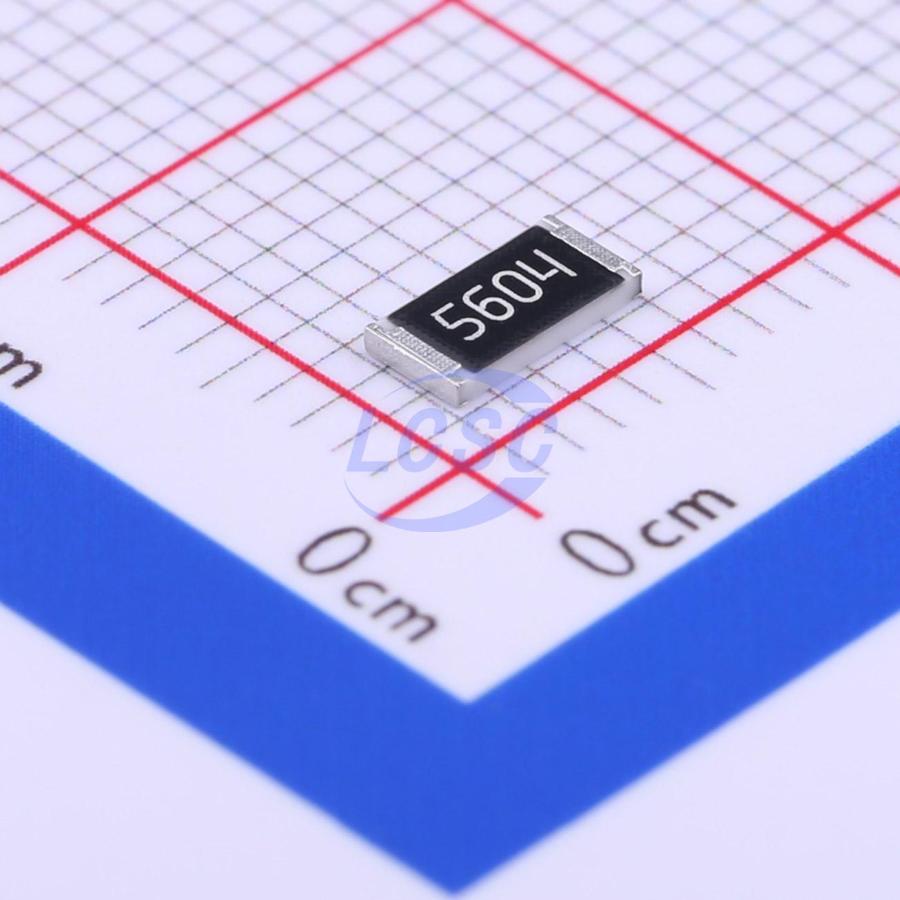

5.6MΩ ±1% 750mW 2010 Thick Film Resistor
2010ROHS CompliantActive
RES 5.6MΩ ±1% 750mW 2010
- Manufacturer
- RALEC
- Manufacturer part #
- RTT205604FTE
- Store part #
- C333426
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C333426
Stock & price checked 14 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.14 | ₹107.00 |
| 500+ | ₹1.71 | ₹855.00 |
| 1,500+ | ₹1.46 | ₹2,190.00 |
| 4,000+ | ₹1.12 | ₹4,480.00 |
| 24,000+ | ₹0.9923 | ₹23,815.20 |
| 48,000+ | ₹0.9261 | ₹44,452.80 |
50 × ₹2.14
₹107.00
excl. GST
₹126.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RTT205604FTE
₹107.00 for 50 + GST
Specifications
- Power(Watts)
- 750mW
- Resistance
- 5.6MΩ
- Voltage Rating
- 200V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.045 g
Overview
This specification applies to RTT series lead-free, halogen-free, RoHS-compliant thick film chip resistors. The product is intended for general electronic applications.
Applications
- General electronic use
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WR20W5604FTL#C396224Walsin · 2010 | Walsin | 2010 | 3,880 | ₹3.24 · 3,880 in stock | View |
 | CR2010F5M60E04Z#C147068EVER OHMS · 2010 | EVER OHMS | 2010 | On request | ₹2.38 · 0 in stock | View |
| 35025M6FT#C2084411TE Connectivity · 2010 | TE Connectivity | 2010 | On request | Price on request | Quote | |
| HP101WF5604T4E#C2775608UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | On request | Price on request | Quote | |
 | 201007F5604T4E#C407019UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | On request | Price on request | Quote |
