Micro CrystalDatasheet (PDF)
RV-3032-C7-32.768kHz-2.5PPM-TA-QC
Built-in Yes SMD3215-8P Real Time Clocks RoHS
SMD3215-8PROHS3 CompliantActive

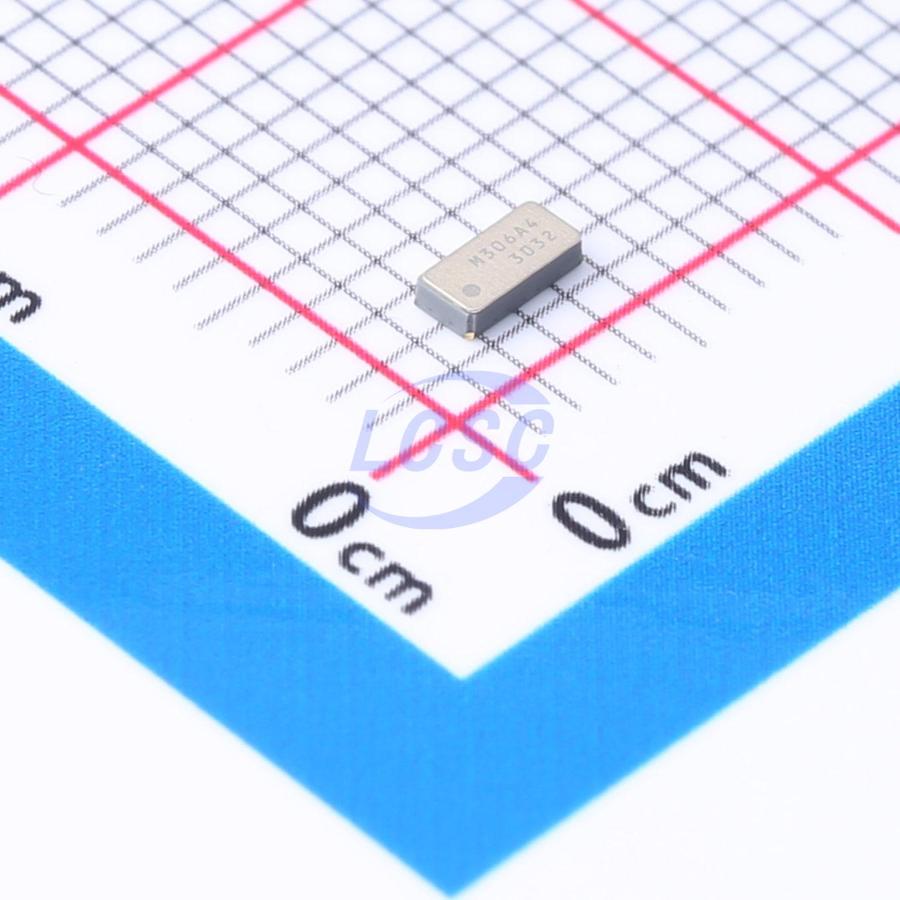

Real-Time Clock Module, Temperature compensated, in 1.5 x 3.2 mm package
- Manufacturer
- Micro Crystal
- Manufacturer part #
- RV-3032-C7-32.768kHz-2.5PPM-TA-QC
- Store part #
- C5127802
- Package / case
- SMD3215-8P
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,273 in stock
#C5127802
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹382.81 | ₹382.81 |
| 10+ | ₹326.27 | ₹3,262.70 |
| 30+ | ₹290.68 | ₹8,720.40 |
| 100+ | ₹254.36 | ₹25,436.00 |
| 500+ | ₹238.11 | ₹1,19,055.00 |
| 1,000+ | ₹230.88 | ₹2,30,880.00 |
1 × ₹382.81
₹382.81
excl. GST
₹451.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
RV-3032-C7-32.768kHz-2.5PPM-TA-QC
₹382.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 1.3V~5.5V
- Features
- Backup power management and battery charging;Timestamp function;Locking and tamper-proof;Programmable clock output;Alarm function
- crystal oscillator
- Built-in
- Alarm Output
- Yes
- Current - Supply
- 160nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.094 g
Overview
The RV-3032-C7 is a SMD Real-Time Clock Module that incorporates an integrated CMOS circuit together with an XTAL. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Applications
- IoT
- Metering
- Industrial
- Automotive
- Health Care
- Wearables, Portables
Key features
- Ultra low power consumption: 160 nA @ 3 V
- Wide operating voltage range: 1.3 V to 5.5 V
- Time accuracy: -40°C to +85°C, ±2.5 ppm; +85°C to +105°C, ±20.0 ppm
- Readable 12-bit Temperature Sensor with interrupt function
- User programmable Password for write protection
- Automatic Backup Switchover
- Trickle Charger with Charge Pump
- Timer, Alarm and External Event functions
- Clock output frequencies: 1 Hz to 52 MHz
- I²C-bus interface: 400 k Hz
- 100% Pb-free, RoHS-compliant
- Automotive qualification according to AEC-Q200 available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RV-3032-C7-32.768KHZ-2.5PPM-TA-QA#C5366550Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | On request | Price on request | Quote |
 | RV-8263-C7-32.768KHZ-20PPM-TA-QA#C5137460Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | 260 | ₹132.24 · 260 in stock | View |
 | RV-3028-C7-32.768kHz-1ppm-TA-QC#C3019759Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | On request | Price on request | Quote |
 | RV-3028-C7-32.768KHZ-1PPM-TA-QA#C3304278Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | On request | Price on request | Quote |
 | RV-8263-C7-32.768KHZ-20PPM-TA-QC#C5138246Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | On request | Price on request | Quote |
