Micro CrystalDatasheet (PDF)
RV-4162-C7-32.768KHZ-20PPM-TA-QA
Built-in Yes SMD3215-8P Real Time Clocks RoHS
SMD3215-8PROHS3 CompliantActive

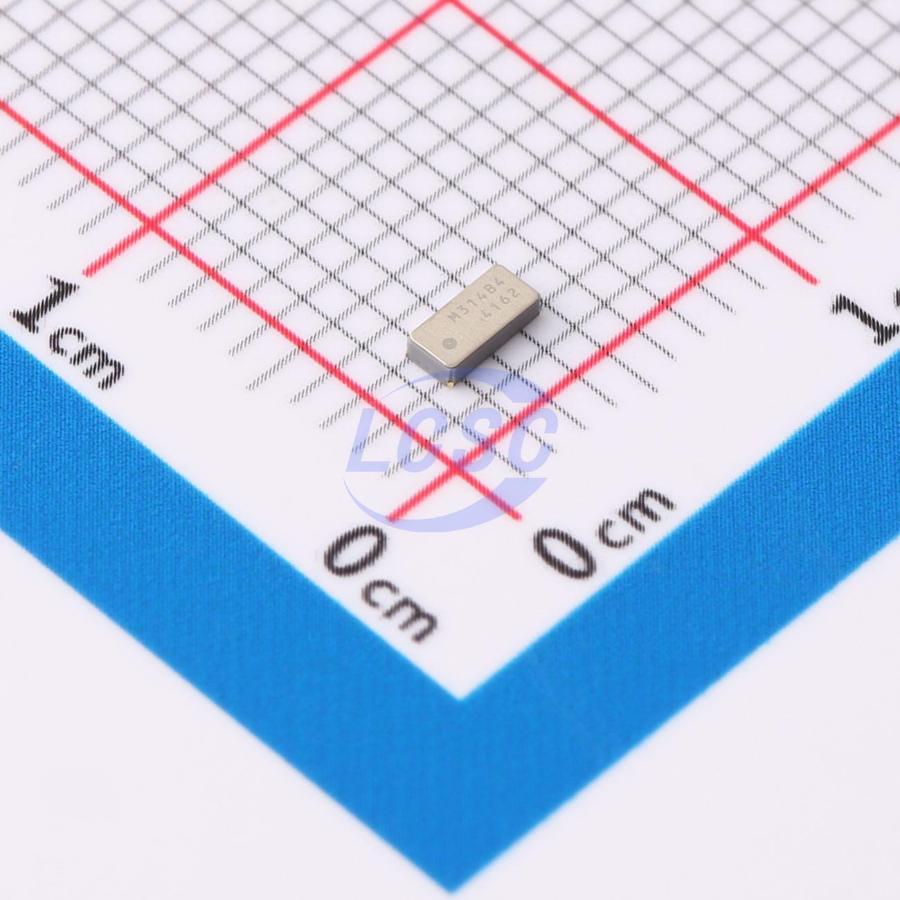

Real-Time Clock Module in 1.5 x 3.2 mm package
- Manufacturer
- Micro Crystal
- Manufacturer part #
- RV-4162-C7-32.768KHZ-20PPM-TA-QA
- Store part #
- C5366556
- Package / case
- SMD3215-8P
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,802 in stock
#C5366556
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹352.29 | ₹352.29 |
| 10+ | ₹299.17 | ₹2,991.70 |
| 30+ | ₹265.83 | ₹7,974.90 |
| 100+ | ₹231.64 | ₹23,164.00 |
| 500+ | ₹216.15 | ₹1,08,075.00 |
| 1,000+ | ₹209.48 | ₹2,09,480.00 |
1 × ₹352.29
₹352.29
excl. GST
₹415.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
RV-4162-C7-32.768KHZ-20PPM-TA-QA
₹352.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1V~4.4V
- Features
- Alarm function;Watchdog timer;Programmable clock output
- crystal oscillator
- Built-in
- Alarm Output
- Yes
- Current - Supply
- 350nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
RV-4162-C7 is a surface-mount real-time clock module that combines an integrated CMOS circuit with a crystal oscillator. It operates in a vacuum environment within a hermetically sealed ceramic package with a metal lid.
Applications
- IoT, Metering, Industrial, Automotive, Healthcare
Key features
- Low power consumption: 350 nA at 3 V.
- Operating voltage range: 1.0 V to 4.4 V.
- Time accuracy: ±20 ppm at 25℃.
- Operating temperature range: -40 to +85℃.
- User-programmable offset value.
- Oscillator stop detection.
- Provides year, month, day, day of week, hour, minute, second, and 1/100 second information.
- Automatic leap year calculation and century bit handling.
- Alarm and watchdog functions.
- Clock output frequency: 32.768 kHz to 1 Hz.
- I²C bus interface: 400 kHz.
- 100% lead-free, RoHS compliant.
- AEC-Q200 automotive-grade certification available.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RV-4162-C7-32.768KHZ-20PPM-TA-QC#C3304279Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | 9,492 | ₹317.85 · 9,492 in stock | View |
 | RV-8263-C7-32.768KHZ-20PPM-TA-QA#C5137460Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | 260 | ₹159.05 · 260 in stock | View |
 | RV-8263-C7-32.768KHZ-20PPM-TA-QC#C5138246Micro Crystal · SMD3215-8P | Micro Crystal | SMD3215-8P | On request | Price on request | Quote |
