YAGEODatasheet (PDF)

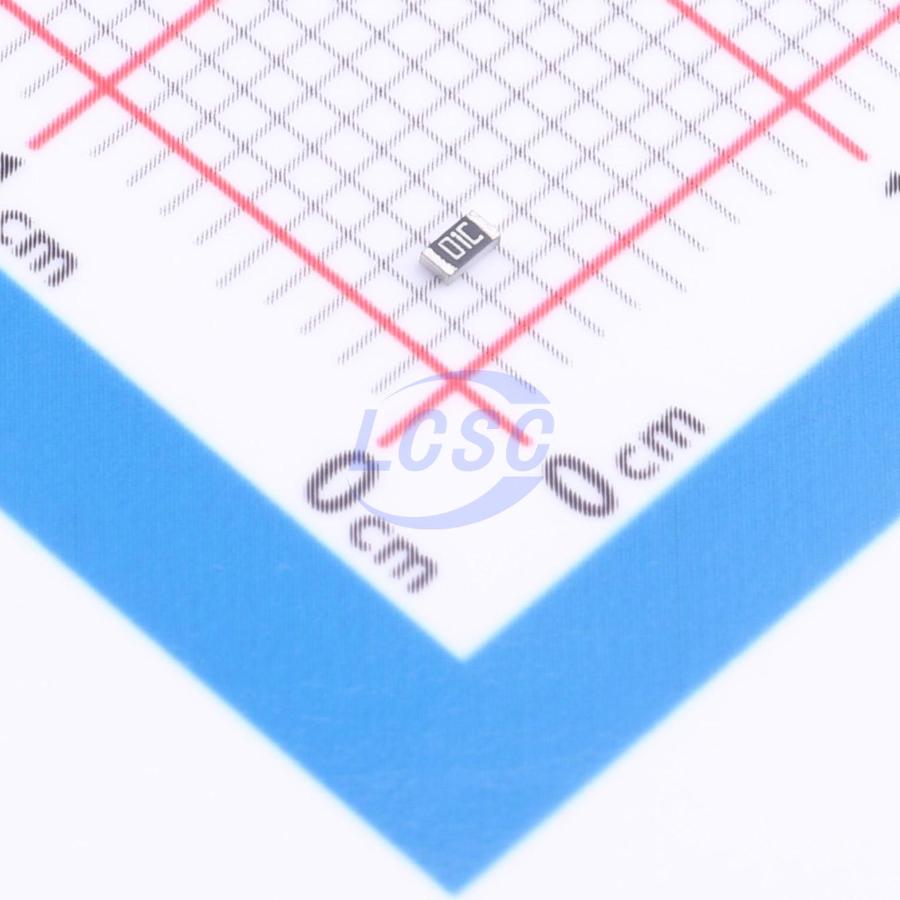

RV0603FR-0710KL
100mW 10kΩ Thick Film Resistor ±200ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 10kΩ ±1% 0.1W 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- RV0603FR-0710KL
- Store part #
- C4285488
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,480 in stock
#C4285488
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.29 | ₹65.80 |
| 200+ | ₹2.65 | ₹530.00 |
| 600+ | ₹2.29 | ₹1,374.00 |
| 5,000+ | ₹2.08 | ₹10,400.00 |
| 10,000+ | ₹1.89 | ₹18,900.00 |
| 20,000+ | ₹1.79 | ₹35,800.00 |
20 × ₹3.29
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV0603FR-0710KL
₹65.80 for 20 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 10kΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.071 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJP03F1002V#C278669PANASONIC · 0603 | PANASONIC | 0603 | 4,620 | ₹5.82 · 4,620 in stock | View |
 | RC0603FR-7W10KL#C859110YAGEO · 0603 | YAGEO | 0603 | 1,62,850 | ₹1.94 · 1,62,850 in stock | View |
 | AA0603FR-0710KL#C4319854YAGEO · 0603 | YAGEO | 0603 | 3,050 | ₹1.32 · 3,050 in stock | View |
 | WR06X1002FTL#C108449Walsin · 0603 | Walsin | 0603 | 7,74,000 | ₹0.5557 · 7,74,000 in stock | View |
 | RS-03K1002FT#C115324FH · 0603 | FH | 0603 | 4,20,600 | ₹0.2911 · 4,20,600 in stock | View |
