YAGEODatasheet (PDF)

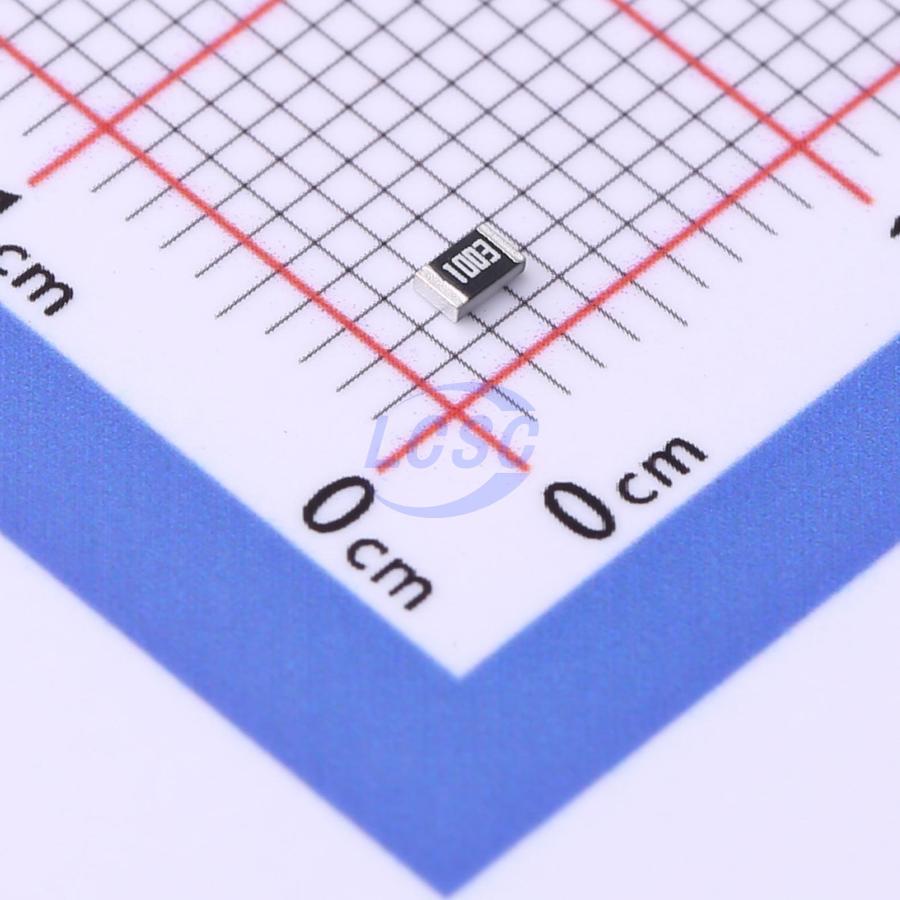

RV0805FR-07100KL
100kΩ ±1% 125mW 0805 Thick Film Resistor
0805ROHS3 CompliantActive
RES 100kΩ ±1% 125mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- RV0805FR-07100KL
- Store part #
- C2842077
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,900 in stock
#C2842077
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.43 | ₹121.50 |
| 500+ | ₹1.92 | ₹960.00 |
| 1,500+ | ₹1.64 | ₹2,460.00 |
| 5,000+ | ₹1.47 | ₹7,350.00 |
| 25,000+ | ₹1.32 | ₹33,000.00 |
| 50,000+ | ₹1.24 | ₹62,000.00 |
50 × ₹2.43
₹121.50
excl. GST
₹143.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV0805FR-07100KL
₹121.50 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 100kΩ
- Voltage Rating
- 400V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRV0805F1003TS#C5713478FOJAN · 0805 | FOJAN | 0805 | 4,000 | ₹2.20 · 4,000 in stock | View |
 | HV05W8F1003T5E#C414833UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 150 | ₹1.18 · 150 in stock | View |
 | ERJP06F1003V#C441992PANASONIC · 0805 | PANASONIC | 0805 | 34,580 | ₹3.52 · 34,580 in stock | View |
 | SG73S2ATTD1003F#C2481593KOA · 0805 | KOA | 0805 | 5,000 | ₹12.11 · 5,000 in stock | View |
 | RS-05K1003FT#C118847FH · 0805 | FH | 0805 | 2,49,500 | ₹0.4631 · 2,49,500 in stock | View |
