YAGEODatasheet (PDF)

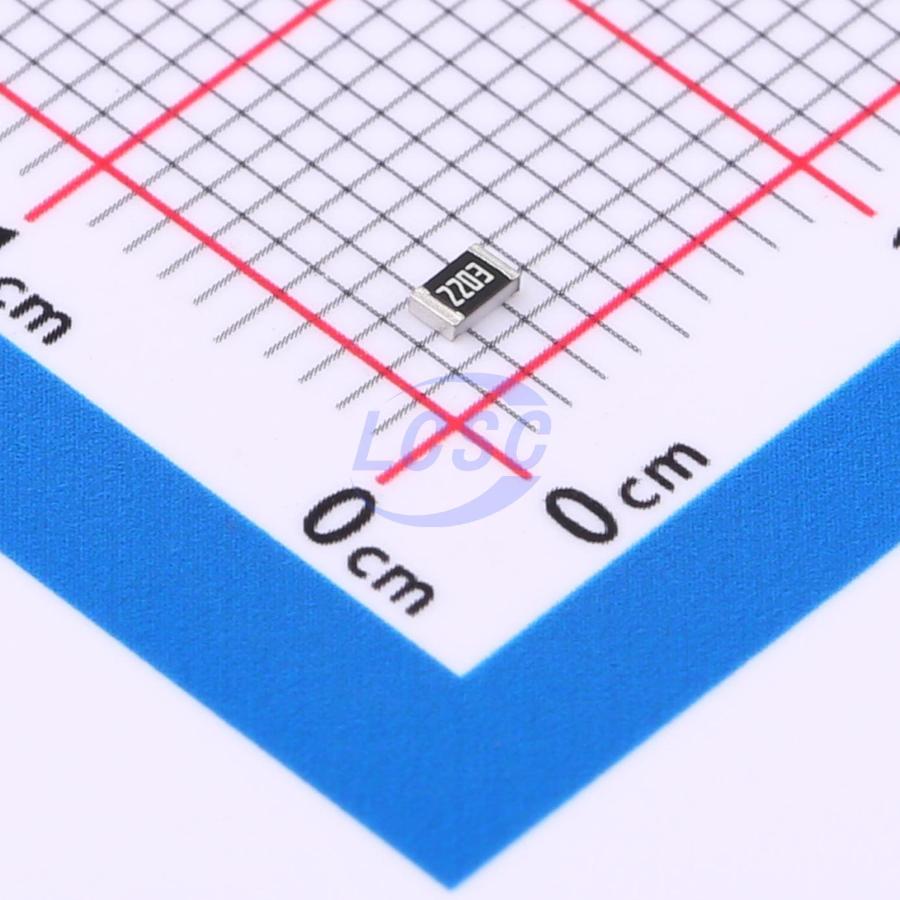

RV0805FR-07220KL
125mW 220kΩ 400V Thick Film Resistor ±1% ±200ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 220kΩ ±1% 125mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- RV0805FR-07220KL
- Store part #
- C873358
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
800 in stock
#C873358
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.42 | ₹71.00 |
| 500+ | ₹1.08 | ₹540.00 |
| 1,500+ | ₹0.9129 | ₹1,369.35 |
| 5,000+ | ₹0.7938 | ₹3,969.00 |
| 25,000+ | ₹0.7012 | ₹17,530.00 |
| 50,000+ | ₹0.6615 | ₹33,075.00 |
50 × ₹1.42
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV0805FR-07220KL
₹71.00 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 220kΩ
- Voltage Rating
- 400V
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.026 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
