YAGEODatasheet (PDF)

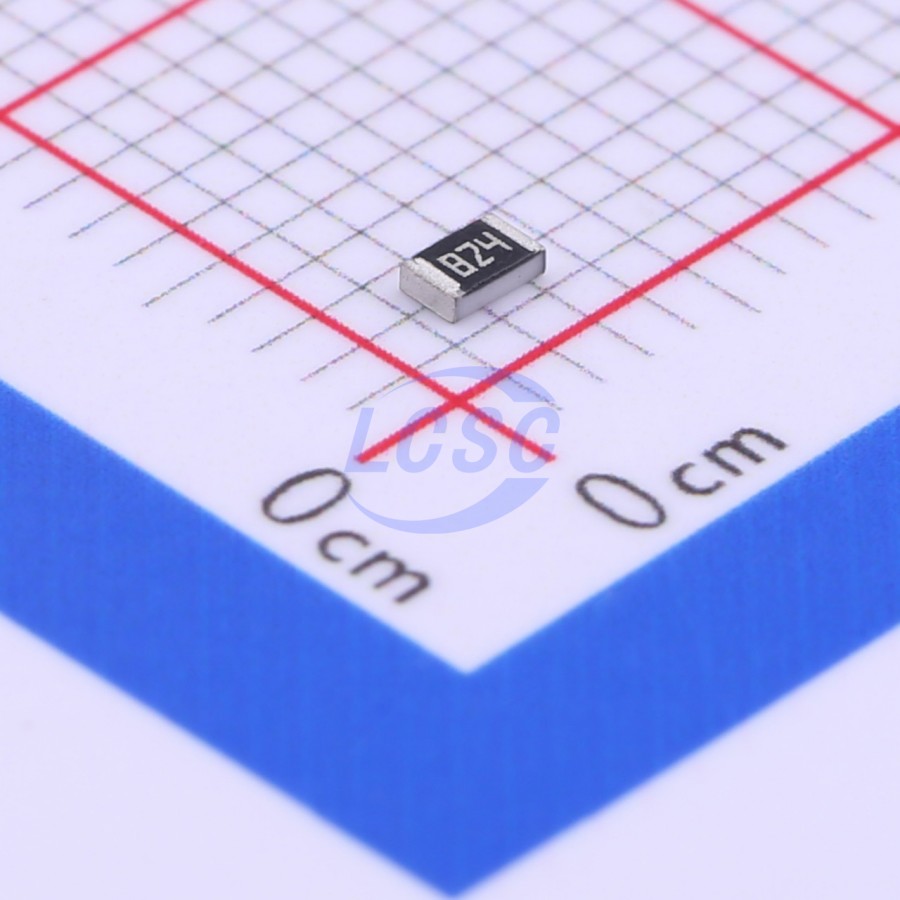

RV0805JR-07820KL
820kΩ ±5% 125mW 0805 Thick Film Resistor
0805ROHS3 CompliantActive
RES 820kΩ ±5% 125mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- RV0805JR-07820KL
- Store part #
- C327008
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,150 in stock
#C327008
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.67 | ₹83.50 |
| 500+ | ₹1.36 | ₹680.00 |
| 1,500+ | ₹1.19 | ₹1,785.00 |
| 5,000+ | ₹1.08 | ₹5,400.00 |
| 25,000+ | ₹0.9923 | ₹24,807.50 |
| 50,000+ | ₹0.9393 | ₹46,965.00 |
50 × ₹1.67
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV0805JR-07820KL
₹83.50 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 820kΩ
- Voltage Rating
- 400V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±5%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HV05W8J0824T5E#C414809UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 300 | ₹0.807 · 300 in stock | View |
 | FRV0805F8203TS#C49196876FOJAN · 0805 | FOJAN | 0805 | 4,150 | ₹1.47 · 4,150 in stock | View |
 | ERJ6GEYJ824V#C413229PANASONIC · 0805 | PANASONIC | 0805 | 500 | ₹1.15 · 500 in stock | View |
 | RTT05824JTP#C104527RALEC · 0805 | RALEC | 0805 | 30 | ₹50.62 · 30 in stock | View |
 | FRC0805J824 TS#C2907343FOJAN · 0805 | FOJAN | 0805 | 1,65,700 | ₹0.3572 · 1,65,700 in stock | View |
