YAGEODatasheet (PDF)

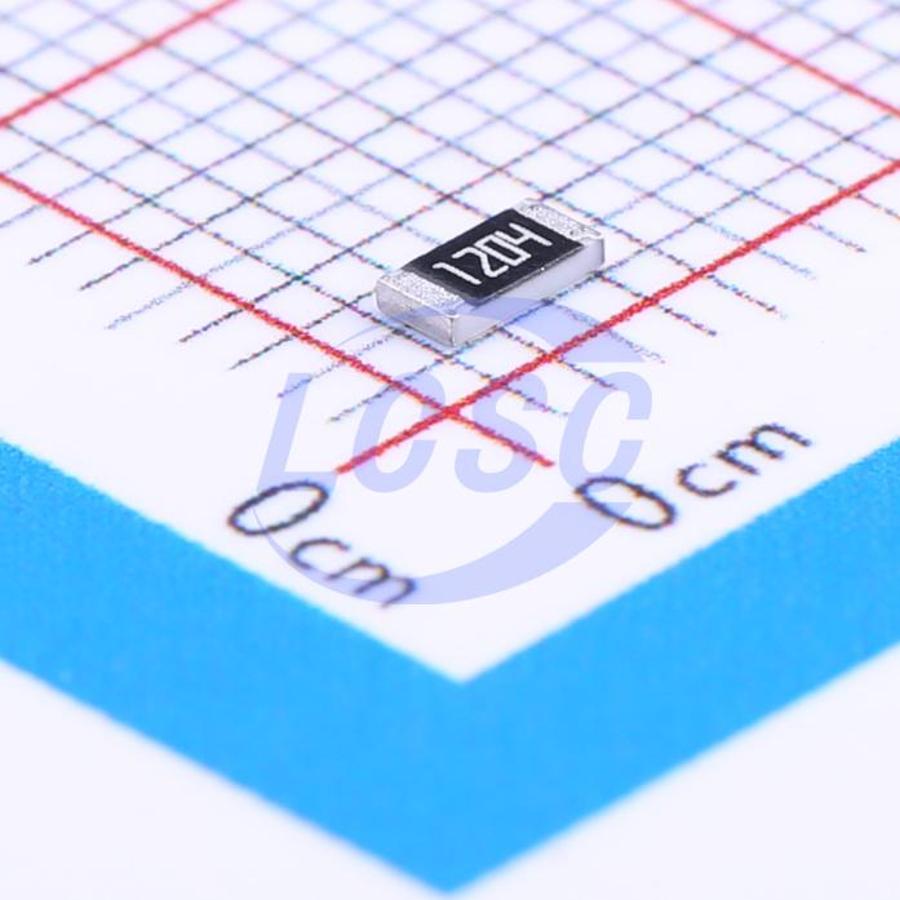

RV1206FR-071M2L
1.2MΩ ±1% 250mW 1206 Thick Film Resistor
1206ROHS3 CompliantActive
RES 1.2MΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-071M2L
- Store part #
- C118024
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,800 in stock
#C118024
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.42 | ₹121.00 |
| 500+ | ₹1.97 | ₹985.00 |
| 1,500+ | ₹1.71 | ₹2,565.00 |
| 5,000+ | ₹1.55 | ₹7,750.00 |
| 25,000+ | ₹1.42 | ₹35,500.00 |
| 50,000+ | ₹1.34 | ₹67,000.00 |
50 × ₹2.42
₹121.00
excl. GST
₹142.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-071M2L
₹121.00 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 1.2MΩ
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SCR1206F1M2#C3017246VO · 1206 | VO | 1206 | 500 | ₹0.5424 · 500 in stock | View |
 | WR12W1204FTL#C171052Walsin · 1206 | Walsin | 1206 | 100 | ₹0.979 · 100 in stock | View |
 | CRCW12061M20FKEA#C2085747VISHAY · 1206 | VISHAY | 1206 | 560 | ₹7.32 · 560 in stock | View |
 | FRC1206F1204TS#C2933587FOJAN · 1206 | FOJAN | 1206 | 3,11,800 | ₹0.8996 · 3,11,800 in stock | View |
 | CQ06W4F1204T5E#C5151637UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 2,310 | ₹1.10 · 2,310 in stock | View |
