YAGEODatasheet (PDF)
RV1206FR-07300KL

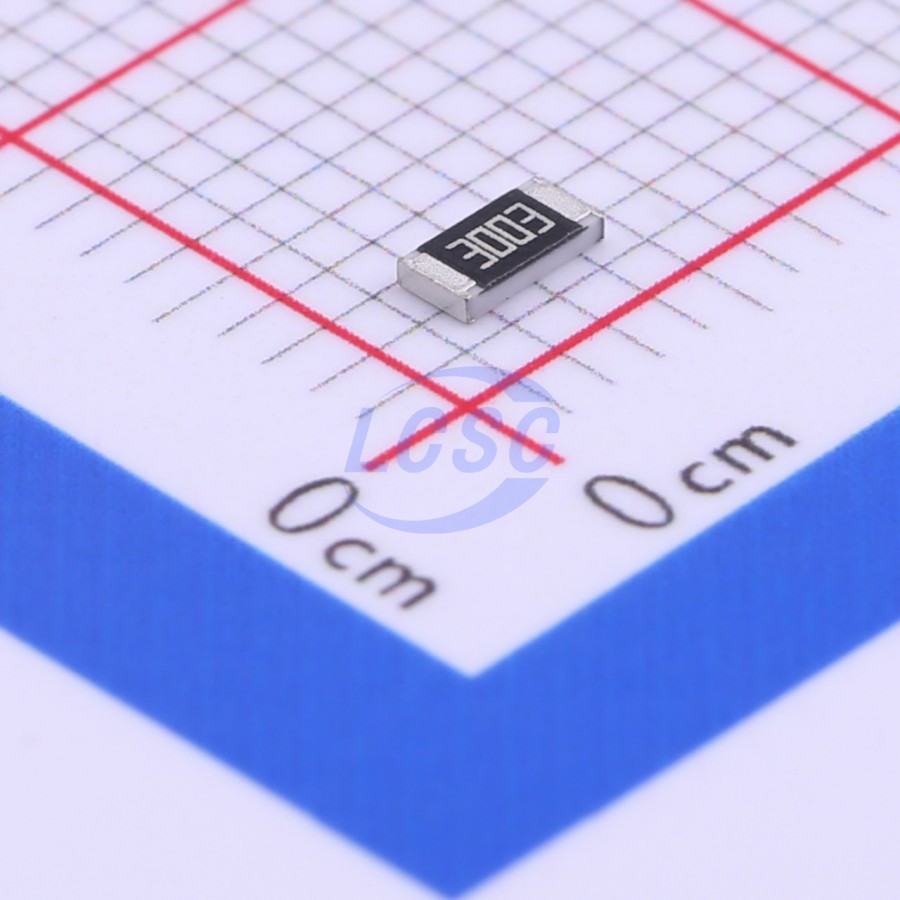

300kΩ ±1% 250mW 1206 Thick Film Resistor
1206ROHS3 CompliantActive
RES 300kΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-07300KL
- Store part #
- C326933
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,700 in stock
#C326933
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.37 | ₹118.50 |
| 500+ | ₹2.00 | ₹1,000.00 |
| 1,500+ | ₹1.79 | ₹2,685.00 |
| 5,000+ | ₹1.65 | ₹8,250.00 |
| 25,000+ | ₹1.55 | ₹38,750.00 |
| 50,000+ | ₹1.49 | ₹74,500.00 |
50 × ₹2.37
₹118.50
excl. GST
₹139.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-07300KL
₹118.50 for 50 + GST
Specifications
- Resistance
- 300kΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 500V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1206W4F3003T5E#C17884UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 97,600 | ₹0.688 · 97,600 in stock | View |
 | RC1206FR-07300KL#C191172YAGEO · 1206 | YAGEO | 1206 | 85,100 | ₹0.9658 · 85,100 in stock | View |
 | CR1206-FX-3003ELF#C205288BOURNS · 1206 | BOURNS | 1206 | 1,250 | ₹2.67 · 1,250 in stock | View |
 | RMS12FT3003#C212513TA-I Tech · 1206 | TA-I Tech | 1206 | 400 | ₹0.860 · 400 in stock | View |
 | AC1206FR-07300KL#C229536YAGEO · 1206 | YAGEO | 1206 | On request | ₹2.63 · 0 in stock | View |
