YAGEODatasheet (PDF)

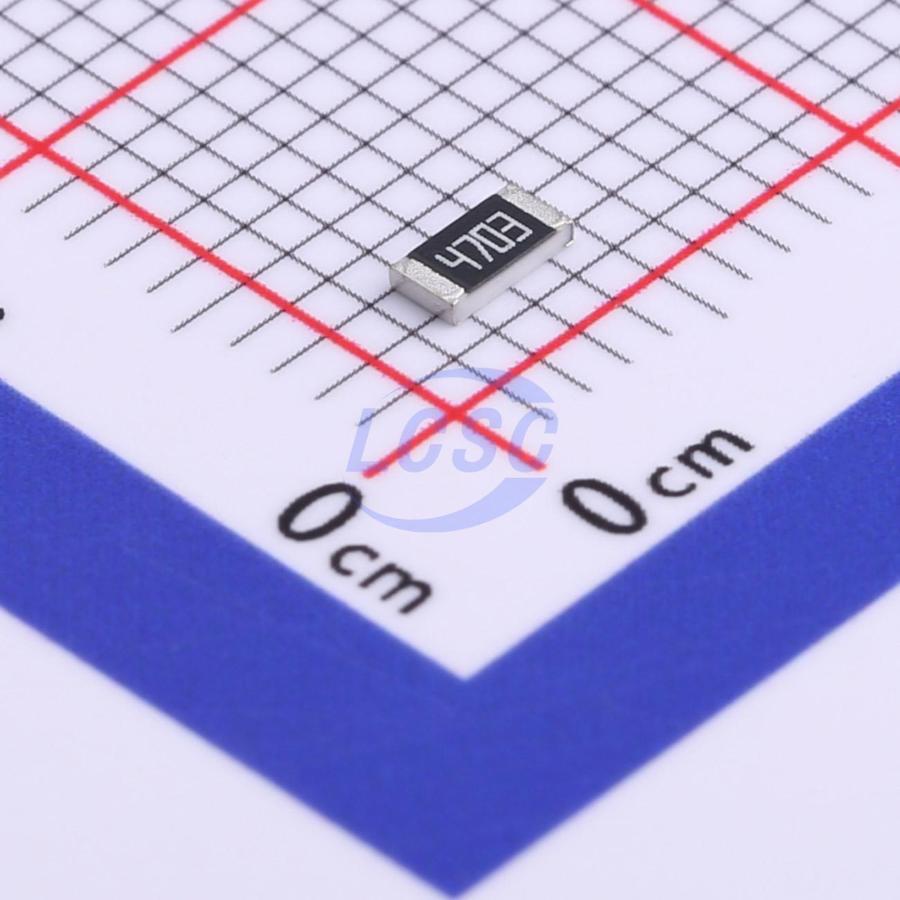

RV1206FR-07470KL
470kΩ ±1% 250mW 1206 Thick Film Resistor
1206ROHS3 CompliantActive
RES 470kΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-07470KL
- Store part #
- C723378
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,050 in stock
#C723378
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.25 | ₹112.50 |
| 500+ | ₹1.89 | ₹945.00 |
| 1,500+ | ₹1.71 | ₹2,565.00 |
| 5,000+ | ₹1.55 | ₹7,750.00 |
| 25,000+ | ₹1.44 | ₹36,000.00 |
| 50,000+ | ₹1.39 | ₹69,500.00 |
50 × ₹2.25
₹112.50
excl. GST
₹132.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-07470KL
₹112.50 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 470kΩ
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQV1206F4703TS#C53064385FOJAN · 1206 | FOJAN | 1206 | 4,150 | ₹1.35 · 4,150 in stock | View |
 | RC1206FR-07470KL#C137273YAGEO · 1206 | YAGEO | 1206 | 99,900 | ₹1.28 · 99,900 in stock | View |
 | RS-06K4703FT#C140018FH · 1206 | FH | 1206 | 22,600 | ₹0.6615 · 22,600 in stock | View |
 | RM12FTN4703#C156180TA-I Tech · 1206 | TA-I Tech | 1206 | 100 | ₹1.08 · 100 in stock | View |
 | WR12X4703FTL#C168548Walsin · 1206 | Walsin | 1206 | 3,000 | ₹1.32 · 3,000 in stock | View |
