YAGEODatasheet (PDF)

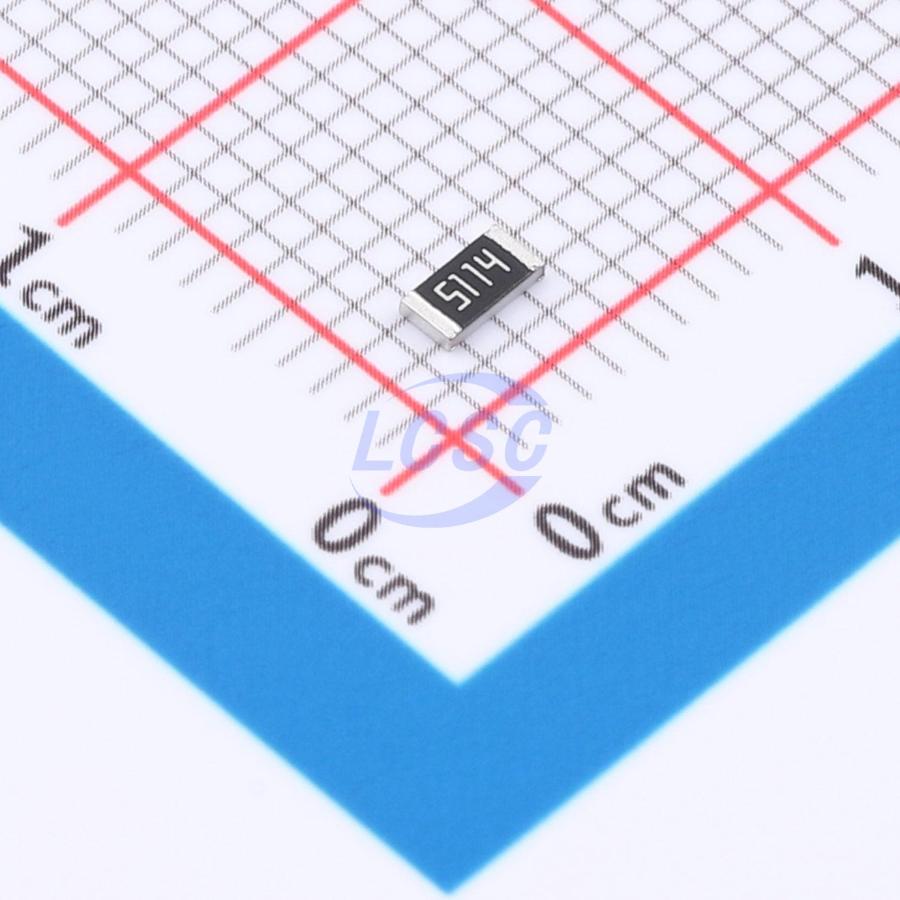

RV1206FR-075M11L
250mW 5.11MΩ Thick Film Resistor ±1% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 5.11MΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-075M11L
- Store part #
- C873583
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,350 in stock
#C873583
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹0.7409 | ₹37.05 |
| 500+ | ₹0.7276 | ₹363.80 |
| 1,500+ | ₹0.7144 | ₹1,071.60 |
| 5,000+ | ₹0.7012 | ₹3,506.00 |
50 × ₹0.7409
₹37.05
excl. GST
₹43.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-075M11L
₹37.05 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 5.11MΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.031 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT065114FTP#C333048RALEC · 1206 | RALEC | 1206 | 4,700 | ₹0.3969 · 4,700 in stock | View |
 | WR12W5114FTL#C368076Walsin · 1206 | Walsin | 1206 | 4,800 | ₹0.5821 · 4,800 in stock | View |
 | 1206W4F5114T5E#C407261UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,300 | ₹0.5424 · 4,300 in stock | View |
 | RC1206FR-075M11L#C488866YAGEO · 1206 | YAGEO | 1206 | 950 | ₹1.18 · 950 in stock | View |
 | RS-06L5114FT#C323316FH · 1206 | FH | 1206 | 2,800 | ₹0.5689 · 2,800 in stock | View |
