YAGEODatasheet (PDF)

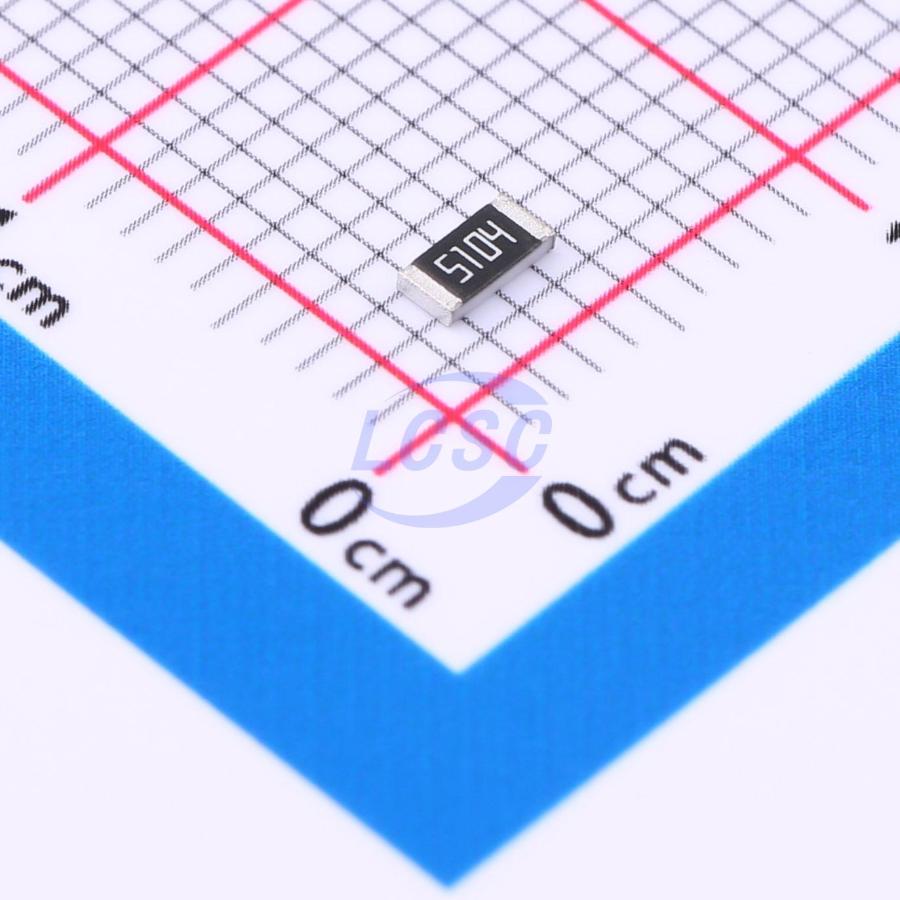

RV1206FR-075M1L
5.1MΩ 250mW 500V Thick Film Resistor ±1% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 5.1MΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-075M1L
- Store part #
- C873584
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
750 in stock
#C873584
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.05 | ₹102.50 |
| 500+ | ₹1.68 | ₹840.00 |
| 1,500+ | ₹1.47 | ₹2,205.00 |
| 5,000+ | ₹1.35 | ₹6,750.00 |
| 25,000+ | ₹1.24 | ₹31,000.00 |
| 50,000+ | ₹1.19 | ₹59,500.00 |
50 × ₹2.05
₹102.50
excl. GST
₹120.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-075M1L
₹102.50 for 50 + GST
Specifications
- Resistance
- 5.1MΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KTR18EZPF5104#C2075783ROHM · 1206 | ROHM | 1206 | 740 | ₹3.12 · 740 in stock | View |
 | RTT065104FTP#C104842RALEC · 1206 | RALEC | 1206 | 50 | ₹0.8203 · 50 in stock | View |
 | AC1206FR-075M1L#C138248YAGEO · 1206 | YAGEO | 1206 | 160 | ₹3.56 · 160 in stock | View |
 | RC1206FR-075M1L#C163371YAGEO · 1206 | YAGEO | 1206 | 400 | ₹1.51 · 400 in stock | View |
 | 1206W4F5104T5E#C40823UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 1,050 | ₹3.16 · 1,050 in stock | View |
