YAGEODatasheet (PDF)
RV1206FR-0775KL

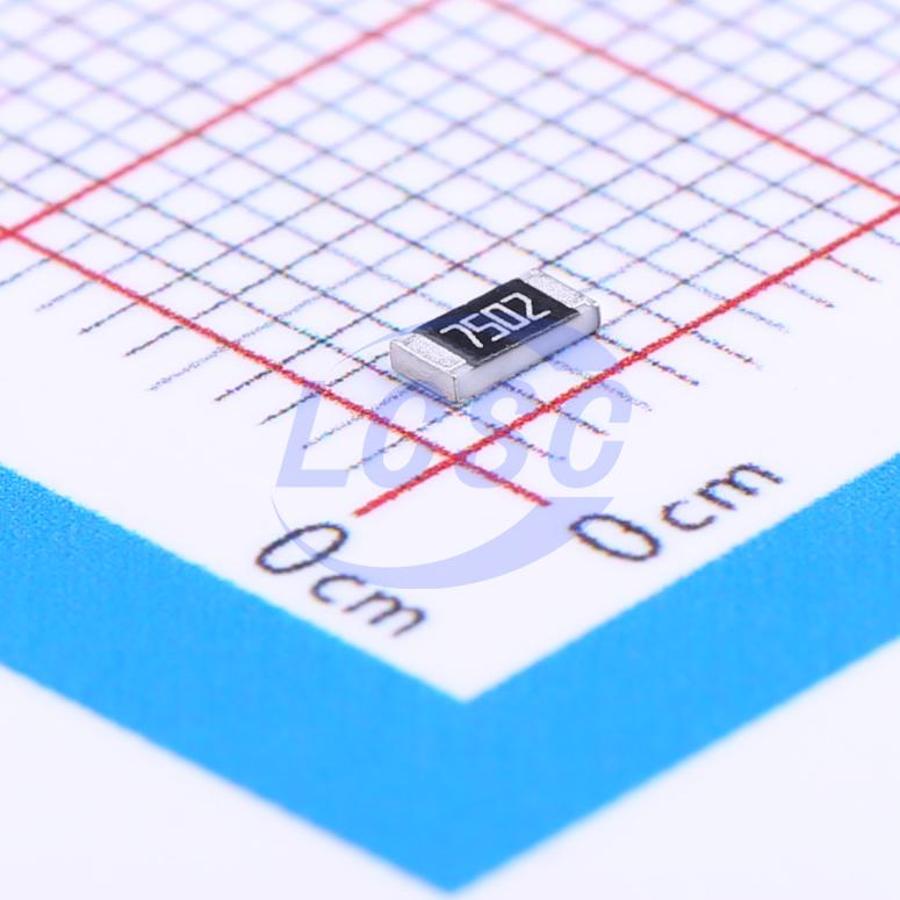

75kΩ ±1% 250mW 1206 Thick Film Resistor
1206ROHS3 CompliantActive
RES 75kΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-0775KL
- Store part #
- C118041
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,850 in stock
#C118041
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.89 | ₹94.50 |
| 500+ | ₹1.61 | ₹805.00 |
| 1,500+ | ₹1.46 | ₹2,190.00 |
| 5,000+ | ₹1.32 | ₹6,600.00 |
| 25,000+ | ₹1.23 | ₹30,750.00 |
| 50,000+ | ₹1.19 | ₹59,500.00 |
50 × ₹1.89
₹94.50
excl. GST
₹111.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-0775KL
₹94.50 for 50 + GST
Specifications
- Resistance
- 75kΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KTR18EZPF7502#C2074850ROHM · 1206 | ROHM | 1206 | 130 | ₹6.39 · 130 in stock | View |
 | RC1206FR-0775KL#C137234YAGEO · 1206 | YAGEO | 1206 | 1,24,800 | ₹1.31 · 1,24,800 in stock | View |
 | 1206W4F7502T5E#C17986UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 2,13,200 | ₹0.7012 · 2,13,200 in stock | View |
 | FRC1206F7502TS#C2933753FOJAN · 1206 | FOJAN | 1206 | 1,92,000 | ₹0.8335 · 1,92,000 in stock | View |
 | RS-06K7502FT#C310364FH · 1206 | FH | 1206 | 15,400 | ₹0.6086 · 15,400 in stock | View |
