YAGEODatasheet (PDF)

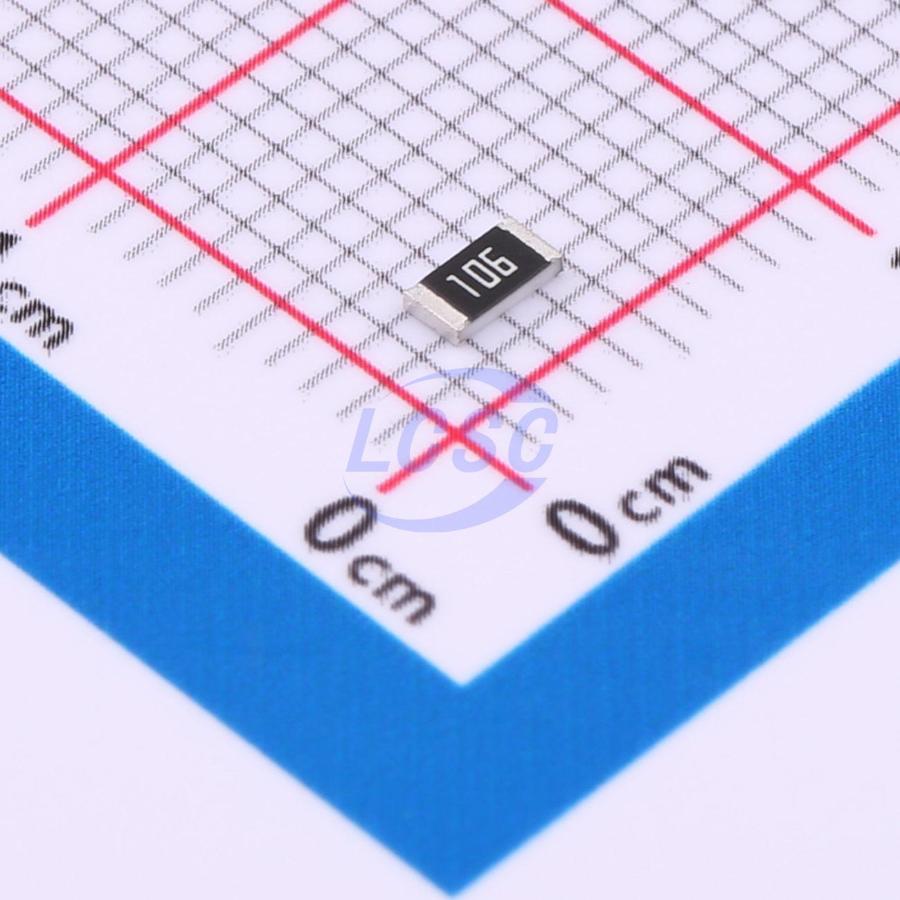

RV1206JR-0710ML
250mW 10MΩ 500V Thick Film Resistor ±5% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 10MΩ ±5% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206JR-0710ML
- Store part #
- C873620
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C873620
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.59 | ₹129.50 |
| 500+ | ₹2.02 | ₹1,010.00 |
| 1,500+ | ₹1.72 | ₹2,580.00 |
| 5,000+ | ₹1.52 | ₹7,600.00 |
| 25,000+ | ₹1.36 | ₹34,000.00 |
| 50,000+ | ₹1.28 | ₹64,000.00 |
50 × ₹2.59
₹129.50
excl. GST
₹152.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206JR-0710ML
₹129.50 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 10MΩ
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KTR18EZPJ106#C2092802ROHM · 1206 | ROHM | 1206 | 2,620 | ₹3.11 · 2,620 in stock | View |
 | FRV1206F1005TS#C54102307FOJAN · 1206 | FOJAN | 1206 | 16,150 | ₹3.33 · 16,150 in stock | View |
 | CHV1206-JW-106ELF#C2078633BOURNS · 1206 | BOURNS | 1206 | 1,180 | ₹12.44 · 1,180 in stock | View |
 | CR-06JL7---10M#C416182Viking · 1206 | Viking | 1206 | 50 | ₹0.5292 · 50 in stock | View |
 | CR1206J40106G#C102272LIZ · 1206 | LIZ | 1206 | 2,000 | ₹3.45 · 2,000 in stock | View |
