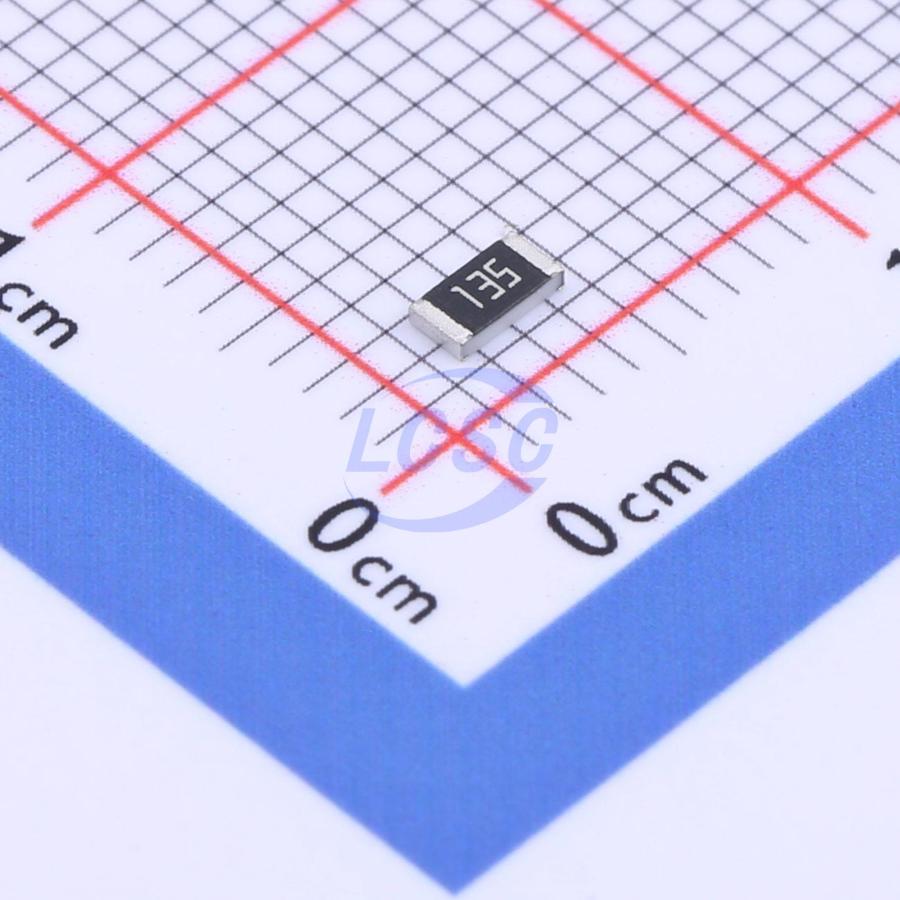

RV1206JR-071M3L
1.3MΩ ±5% 250mW 1206 Thick Film Resistor
1206ROHS3 CompliantActive
RES 1.3MΩ ±5% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206JR-071M3L
- Store part #
- C873629
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C873629
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.19 | ₹59.50 |
| 500+ | ₹0.9129 | ₹456.45 |
| 1,500+ | ₹0.7673 | ₹1,150.95 |
| 5,000+ | ₹0.6747 | ₹3,373.50 |
| 25,000+ | ₹0.5953 | ₹14,882.50 |
| 50,000+ | ₹0.5424 | ₹27,120.00 |
50 × ₹1.19
₹59.50
excl. GST
₹70.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206JR-071M3L
₹59.50 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 1.3MΩ
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HV06W4F1304T5E#C2779068UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 1,450 | ₹1.10 · 1,450 in stock | View |
 | RTT06135JTP#C159704RALEC · 1206 | RALEC | 1206 | 1,500 | ₹0.4366 · 1,500 in stock | View |
 | WR12X135JTL#C368126Walsin · 1206 | Walsin | 1206 | 200 | ₹0.5424 · 200 in stock | View |
 | 1RC1206J0135#C54532538SAE · 1206 | SAE | 1206 | 5,000 | ₹0.6615 · 5,000 in stock | View |
 | HRC1206J135 HNTN#C55098712HWA CHN · 1206 | HWA CHN | 1206 | 9,900 | ₹0.3837 · 9,900 in stock | View |
