YAGEODatasheet (PDF)

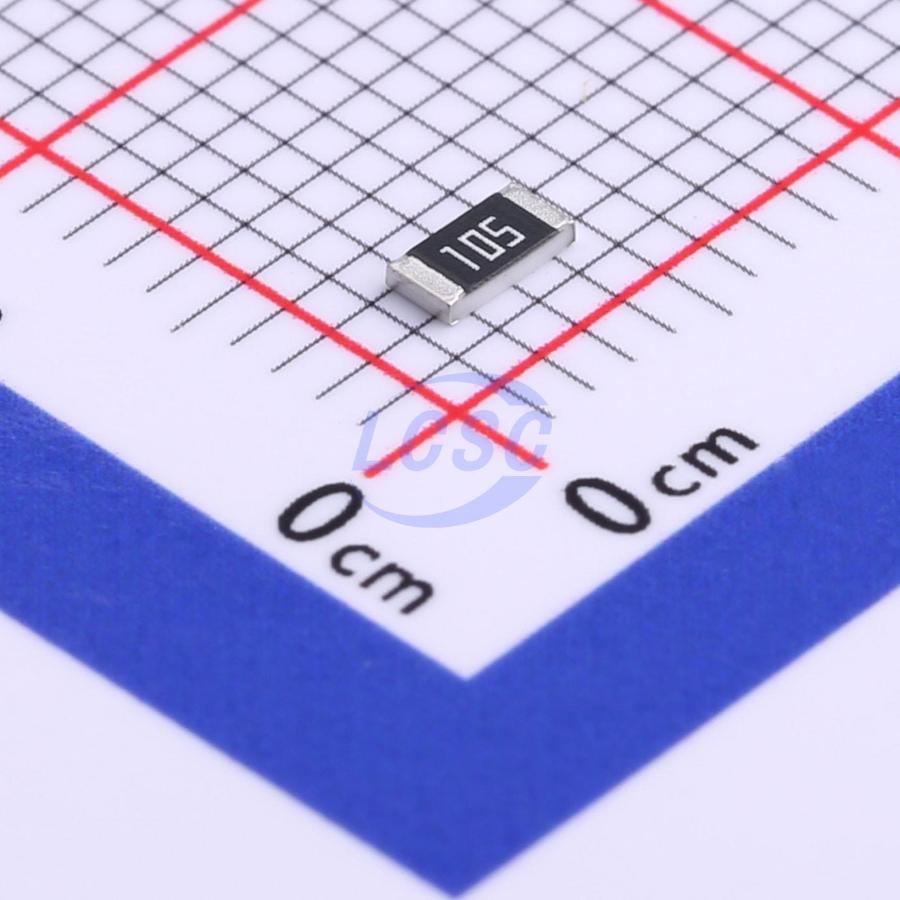

RV1206JR-071ML
250mW 1MΩ 500V Thick Film Resistor ±5% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 1MΩ ±5% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206JR-071ML
- Store part #
- C718249
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,700 in stock
#C718249
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.82 | ₹141.00 |
| 500+ | ₹2.33 | ₹1,165.00 |
| 1,500+ | ₹2.06 | ₹3,090.00 |
| 5,000+ | ₹1.84 | ₹9,200.00 |
| 25,000+ | ₹1.71 | ₹42,750.00 |
| 50,000+ | ₹1.63 | ₹81,500.00 |
50 × ₹2.82
₹141.00
excl. GST
₹166.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206JR-071ML
₹141.00 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 1MΩ
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRV1206J105 TS#C55020809FOJAN · 1206 | FOJAN | 1206 | 4,800 | ₹1.51 · 4,800 in stock | View |
 | FQV1206J105 TS#C55174767FOJAN · 1206 | FOJAN | 1206 | 13,300 | ₹1.97 · 13,300 in stock | View |
 | ERJ8GEYJ105V#C278663PANASONIC · 1206 | PANASONIC | 1206 | 5,700 | ₹2.67 · 5,700 in stock | View |
 | HR1206J1M00P05Z#C175518EVER OHMS · 1206 | EVER OHMS | 1206 | 14,500 | ₹3.70 · 14,500 in stock | View |
 | FRV1206F1004TS#C54102306FOJAN · 1206 | FOJAN | 1206 | 21,900 | ₹3.44 · 21,900 in stock | View |
