YAGEODatasheet (PDF)

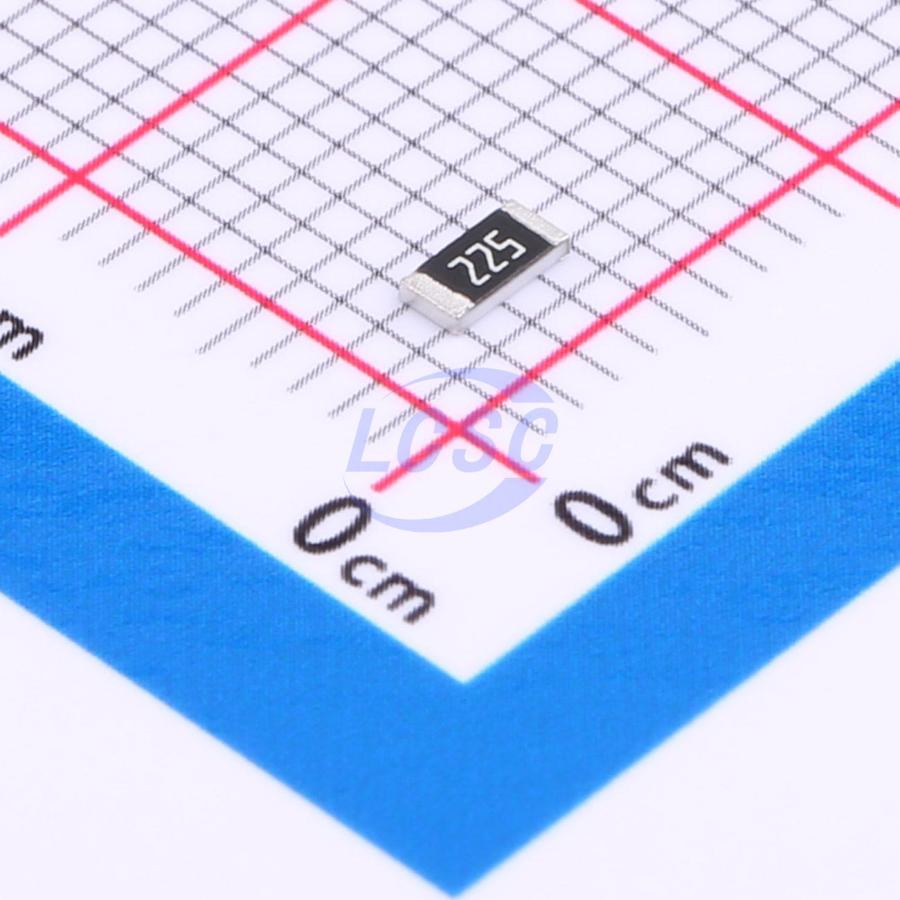

RV1206JR-072M2L
250mW 2.2MΩ 500V Thick Film Resistor ±5% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 2.2MΩ ±5% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206JR-072M2L
- Store part #
- C873641
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
650 in stock
#C873641
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹3.00 | ₹150.00 |
| 500+ | ₹2.45 | ₹1,225.00 |
| 1,500+ | ₹2.14 | ₹3,210.00 |
| 5,000+ | ₹1.96 | ₹9,800.00 |
| 25,000+ | ₹1.80 | ₹45,000.00 |
| 50,000+ | ₹1.72 | ₹86,000.00 |
50 × ₹3.00
₹150.00
excl. GST
₹177.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206JR-072M2L
₹150.00 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 2.2MΩ
- Voltage Rating
- 500V
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RV1206FR-072M2L#C118031YAGEO · 1206 | YAGEO | 1206 | 8,950 | ₹2.01 · 8,950 in stock | View |
 | 1206 ±5% 2M2#C2889751VO · 1206 | VO | 1206 | 2,500 | ₹0.6615 · 2,500 in stock | View |
 | CR1206J40225G#C3037288LIZ · 1206 | LIZ | 1206 | 100 | ₹0.4366 · 100 in stock | View |
 | HV06W4F2204T5E#C414796UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 5,000 | ₹1.20 · 5,000 in stock | View |
 | FRV1206F2204TS#C7468679FOJAN · 1206 | FOJAN | 1206 | 9,500 | ₹1.88 · 9,500 in stock | View |
