YAGEODatasheet (PDF)
RV2512FK-071ML

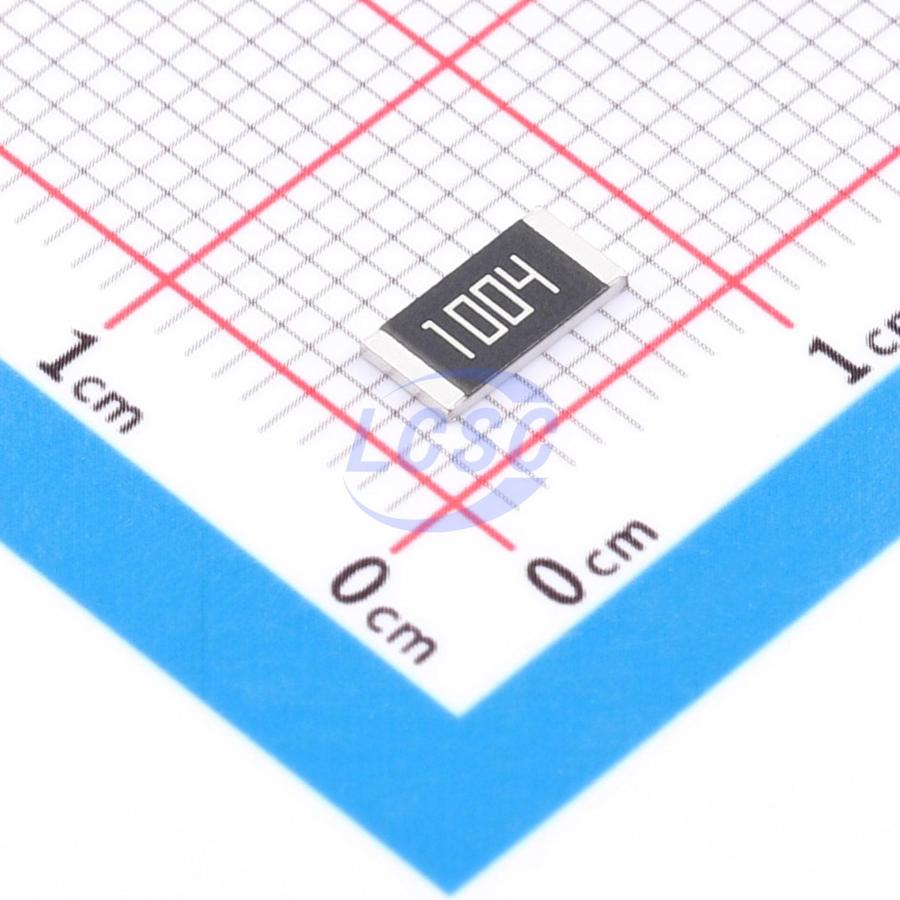

1W 1MΩ Thick Film Resistor ±1% ±200ppm/℃ 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 1MΩ ±1% 1W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- RV2512FK-071ML
- Store part #
- C7304171
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C7304171
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.87 | ₹69.35 |
| 50+ | ₹11.31 | ₹565.50 |
| 150+ | ₹10.03 | ₹1,504.50 |
| 500+ | ₹9.08 | ₹4,540.00 |
| 2,500+ | ₹8.31 | ₹20,775.00 |
| 4,000+ | ₹7.92 | ₹31,680.00 |
5 × ₹13.87
₹69.35
excl. GST
₹81.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RV2512FK-071ML
₹69.35 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 1MΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC2512FK-7W1ML#C6263555YAGEO · 2512 | YAGEO | 2512 | 2,890 | ₹11.66 · 2,890 in stock | View |
 | CR2512F1M00E04Z#C147012EVER OHMS · 2512 | EVER OHMS | 2512 | 3,070 | ₹7.13 · 3,070 in stock | View |
 | RMC25121M1%N#C269888TyoHM · 2512 | TyoHM | 2512 | 270 | ₹10.88 · 270 in stock | View |
 | RC2512FK-071ML#C276335YAGEO · 2512 | YAGEO | 2512 | 1,880 | ₹7.49 · 1,880 in stock | View |
 | FRC2512F1004TS#C3000673FOJAN · 2512 | FOJAN | 2512 | 41,280 | ₹4.51 · 41,280 in stock | View |
