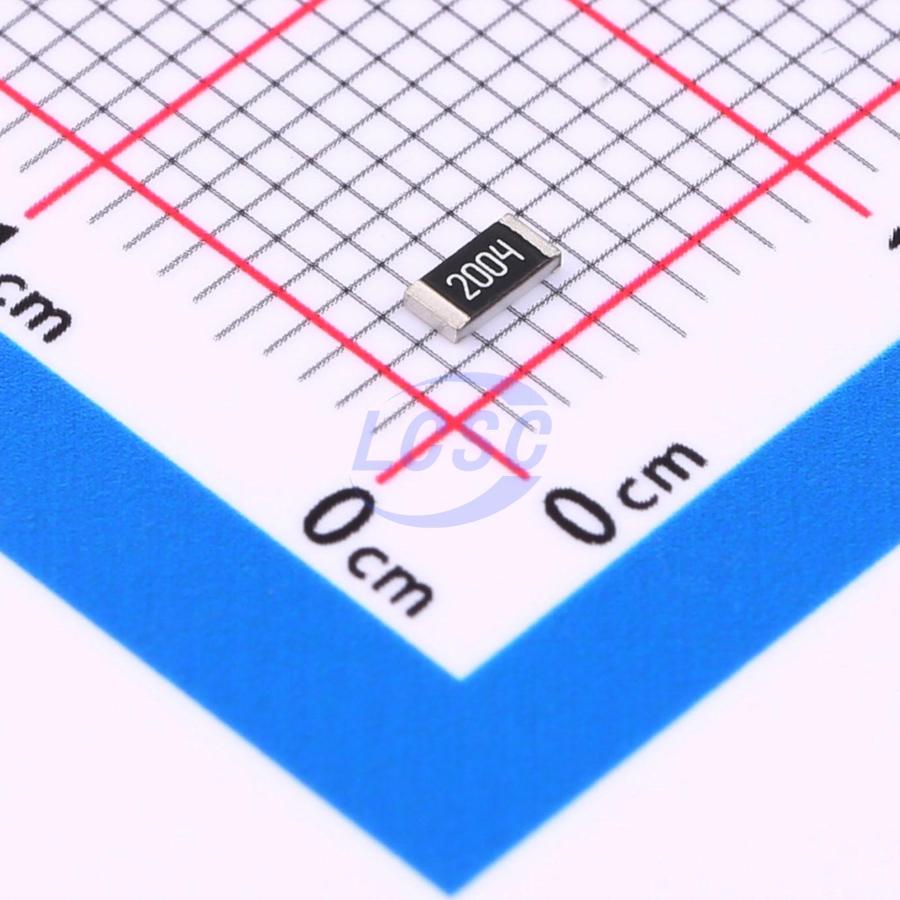

RVS-06K2004FT

250mW 2MΩ Thick Film Resistor ±100ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS

1206ROHS CompliantActive

RES 2000000Ω ±1% 1206

Manufacturer: FH
Manufacturer part #: RVS-06K2004FT
Store part #: C20627076
Package / case: 1206
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,600 in stock

#C20627076

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
50+	₹1.33	₹66.50
500+	₹1.03	₹515.00
1,500+	₹0.869	₹1,303.50
5,000+	₹0.770	₹3,850.00
25,000+	₹0.693	₹17,325.00
50,000+	₹0.649	₹32,450.00

Quantity (min 50, multiples of 50)

50 × ₹1.33

₹66.50

excl. GST

₹78.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RVS-06K2004FT

₹66.50 for 50 + GST

Specifications

Power(Watts): 250mW
Resistance: 2MΩ
Operating Temperature: -55℃~+155℃
Type: Thick Film Resistor
Temperature Coefficient: ±100ppm/℃
Tolerance: ±1%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.048 g

Overview

Applications

Camera flash circuits, computers, printing equipment, battery chargers, automotive equipment, power supply circuits, optical disc drives, etc.

Key features

Maximum operating voltage: 3000V
Stable electrical performance, high reliability
High mechanical strength, superior high-frequency characteristics
RoHS compliant
Halogen-free compliant
Moisture Sensitivity Level: MSL 1

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	RS-06L2004FT#C310337FH · 1206	FH	1206	19,500	₹0.671 · 19,500 in stock	View
	RS-06K2004FT#C2897301FH · 1206	FH	1206	On request	Price on request	Quote
