RYCHIP Semiconductor Inc.Datasheet (PDF)

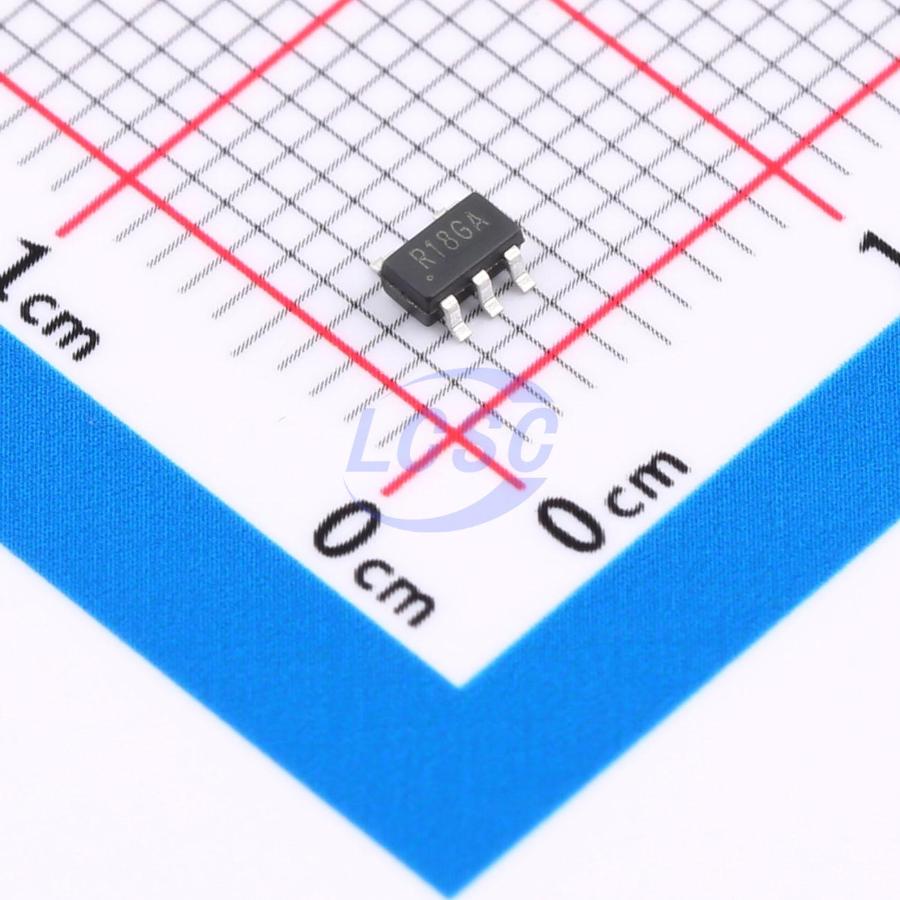

RY6050-18M5R
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
500mA High PSRR, Low Noise, Low Power LDO
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY6050-18M5R
- Store part #
- C18212070
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,620 in stock
#C18212070
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.31 | ₹86.20 |
| 200+ | ₹3.37 | ₹674.00 |
| 600+ | ₹2.86 | ₹1,716.00 |
| 2,000+ | ₹2.54 | ₹5,080.00 |
| 10,000+ | ₹2.26 | ₹22,600.00 |
| 20,000+ | ₹2.12 | ₹42,400.00 |
20 × ₹4.31
₹86.20
excl. GST
₹101.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY6050-18M5R
₹86.20 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 28uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.047 g
Overview
The RY6050 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn- on times. The RY6050's current limiters' feedback circuit also operates as a short protect for the output current limiter and the output pin. The output voltage is set by current trimming. Voltages are selectable in 50mV steps within a range of 1.1V to 4.5V. The RY6050 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The EN function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. The RY6050 series are available in SOT23- 3, SOT23- 5, DFN4- 11 package.
Applications
- Mobile Phones, Tablets
- Portable Medical Equipment
- IP Cameras
- Digital Cameras and Audio Devices
- Portable and Battery- Powered Equipment
- Drones
Key features
- Input Voltage Range: 2V to 5.5V
- Output Voltage Range: 1.1V to 4.5V
- Output Voltage Tolerance: = 2%
- Low Shutdown Current: 0.1μA (Typ.)
- Low Power Consumption: 28μA (Typ.)
- Low Dropout: a100mA
- High PSRR: 70dB@1KHz (Typ.)
- Over Current Protection
- Short Circuit Protection
- Thermal Shutdown Protection
- - 40°C to 125°C Operating Junction Temperature
- SOT23- 5/ SOT23- 3/DFN4- 11 Package
