RYCHIP Semiconductor Inc.Datasheet (PDF)

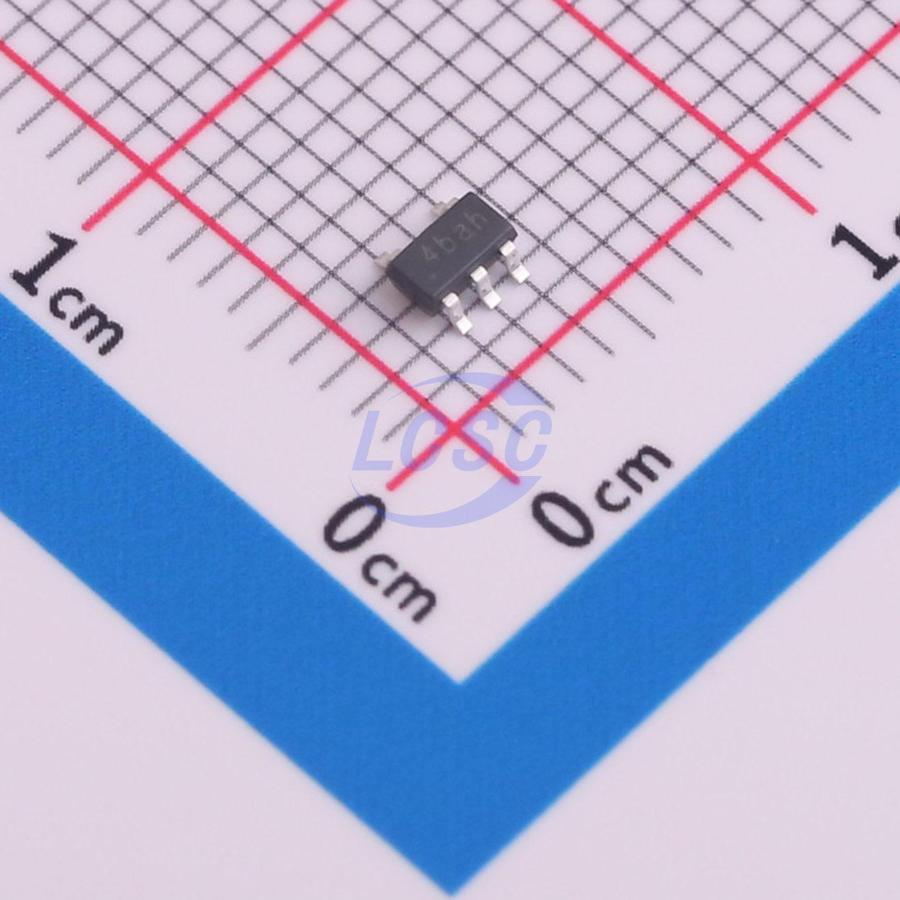

RY6050-ADJM5R
800mV~3.3V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
500mA Adjustable High-Speed Low Power LDO
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY6050-ADJM5R
- Store part #
- C2890981
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C2890981
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹8.19 | ₹163.80 |
| 200+ | ₹7.25 | ₹1,450.00 |
| 600+ | ₹6.72 | ₹4,032.00 |
| 3,000+ | ₹6.42 | ₹19,260.00 |
| 9,000+ | ₹6.14 | ₹55,260.00 |
| 21,000+ | ₹5.99 | ₹1,25,790.00 |
20 × ₹8.19
₹163.80
excl. GST
₹193.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY6050-ADJM5R
₹163.80 for 20 + GST
Specifications
- Output Voltage
- 800mV~3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 28uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6.5V
- Output Type
- Adjustable
- Features
- Enable control;Adjustable current limiting;Thermal shutdown;Short Circuit Protection;Over Current Protection;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.046 g
Overview
The RY6050-ADJM5R is highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The RY6050-ADJM5R achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limit, and a phase compensation circuit plus a driver transistor. External output feedback, customers can easily get the required voltage. In order to make the load current does not exceed the current capacity of the output transistor, built-in over-current protection, over temperature protection and short circuit protection. The internal op amp with advanced structure, the output capacitor can be omitted. The RY6050- ADJM5R is available in SOT23-5 package.
Applications
- Cellular Handsets
- Hand‐Held Instruments
- Battery‐Powered Equipment
- Portable Information Application
- Wi-Fi Router
- Adjustable power supply
Key features
- Programmable Output: Minimum can go to 0.8V
- Low Power Consumption: 28uA (Typ.)
- Low Voltage Drops: 0.15V@50mA
- Standby Mode: less than 0.1uA
- Low Temperature Coefficient
- Active Discharge Function
- High Ripple Rejection: 70dB @ 1KHz (Typ.)
- High Input Voltage (up to 8V)
- Output Voltage Accuracy: Tolerance ±2%
- Build-in Enable / Output Current Limit
- SOT23-5 Package
