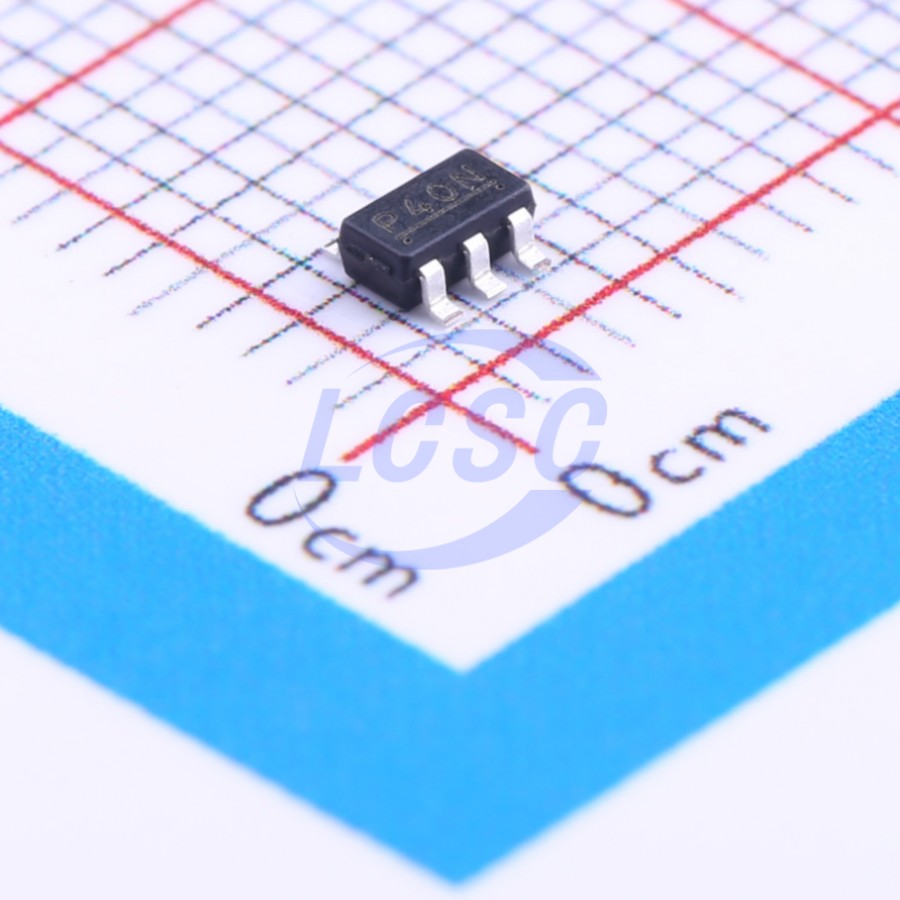

S-1167B29-M5T1U

The S-1167 Series is a positive voltage regulator with ultra low current consumption, high ripple rejection, low dropout voltage and high-accuracy output voltage developed based on CMOS technology. Although current consumption is very small with 9 μA typ., the S-1167 Series realized the 70 dB of high ripple rejection rate. Besides, a ceramic capacitor of 1.0 μF can be used as the input and output capacitors. Moreover, dropout voltage is also small since output voltage accuracy realizes ±1.0% of high accuracy, and the low-onresistance transistor is built-in. A built-in overcurrent protection circuit prevents that the load current from exceeding the current capacity of the output transistor. The ON / OFF circuit ensures long battery life. Two packages, SOT-23-5 and SNT-6A(H) are available. Compared with the voltage regulators using the conventional CMOS technology, the S-1167 Series is the most suitable for the portable equipments with ultra low current consumption and corresponding to the small package.

Applications

• Constant-voltage power supply for battery-powered device
• Constant-voltage power supply for cellular phone
• Constant-voltage power supply for portable equipment

Key features

• Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V step
• Input voltage: 2.0 V to 6.5 V
• Output voltage accuracy: ±1.0%
• Dropout voltage: 150 mV typ. (3.0 V output product, Iout = 100 mA)
• Current consumption: During operation: 9 μA typ., 16 μA max.; During power-off: 0.1 μA typ., 0.9 μA max.
• Output current: Possible to output 150 mA (VIN ≥ Vout(S) + 1.0 V)
• Input and output capacitors: A ceramic capacitor of 1.0 μF or more can be used.
• Ripple rejection: 70 dB typ. (3.0 V output product, f = 1.0 kHz)
• Built-in overcurrent protection circuit: Limits overcurrent of output transistor.
• Built-in ON / OFF circuit: Ensures long battery life.
• Operation temperature range: Ta = -40°C to +85°C
• Lead-free, Sn 100%, halogen-free
