LRC

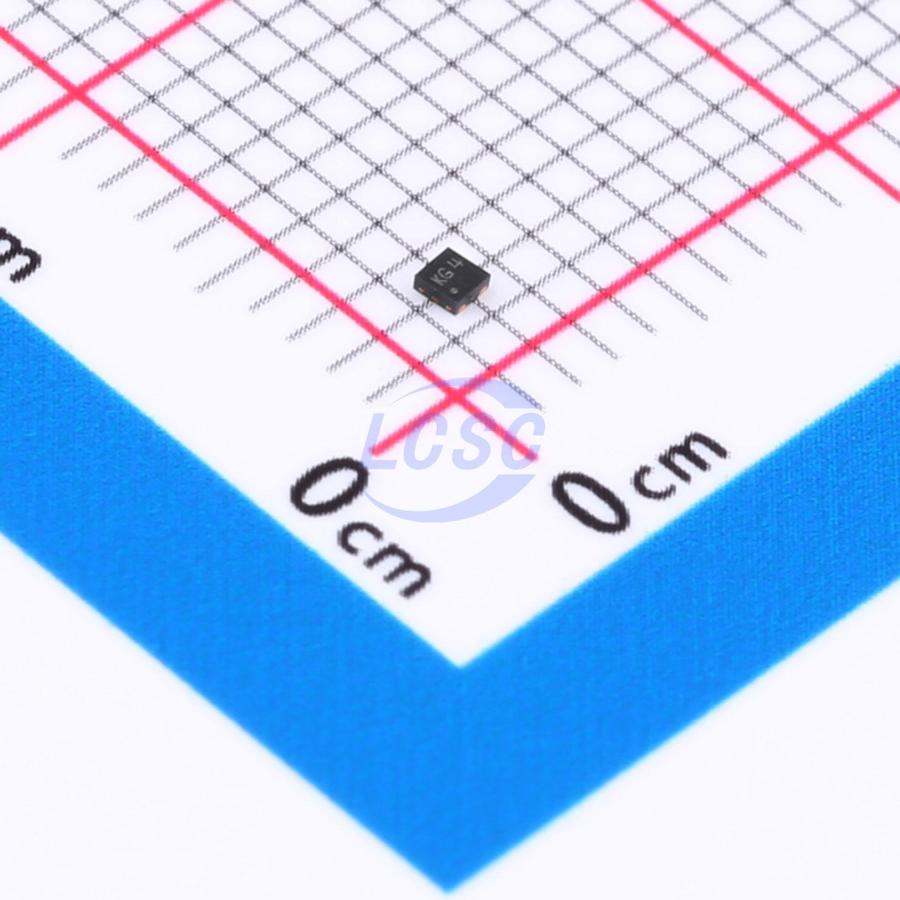

S-LR6230B18F

1.8V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

DFN1x1-4ROHS CompliantActive

Low-power, high-PSRR 300mA CMOS voltage regulator

Manufacturer: LRC
Manufacturer part #: S-LR6230B18F
Store part #: C5383066
Package / case: DFN1x1-4
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

996 in stock

#C5383066

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹12.53	₹12.53
10+	₹9.91	₹99.10
30+	₹8.59	₹257.70
100+	₹7.61	₹761.00
500+	₹6.83	₹3,415.00
1,000+	₹6.43	₹6,430.00

Quantity (min 1)

1 × ₹12.53

₹12.53

excl. GST

₹14.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

S-LR6230B18F

₹12.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 5uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 7V
Features: Enable control;Short Circuit Protection;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.016 g

Overview

The S-LR6230 series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, low power consumption and low dropout voltage, which can prolong battery life in portable electronics. The S-LR6230 series work with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications. The S-LR6230 series consume less than 0.1uA in shutdown mode and have fast turn-on time less than 50us. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.

Applications

Cellular and Smart Phones
Laptop, Palmtops and PDA
Digital Still and Video Cameras
MP3, MP4 Player
Radio control systems
Battery-Powered Equipment

Key features

Low Dropout Voltage: 150mV@150mA
Low Quiescent Current: 5μA
High Ripple Rejection: 65dB@1kHz
Excellent Line and Load Transient Response
Operating Voltage: 2.0V~7.0V
Output Voltage: 1.2~5.0V
High Accuracy: ± 2/±1 (Typ.)
Built-in Current Limiter, Short-Circuit Protection
TTL- Logic-Controlled Shutdown Input
S-Prefix for Automotive And Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAF Capable
